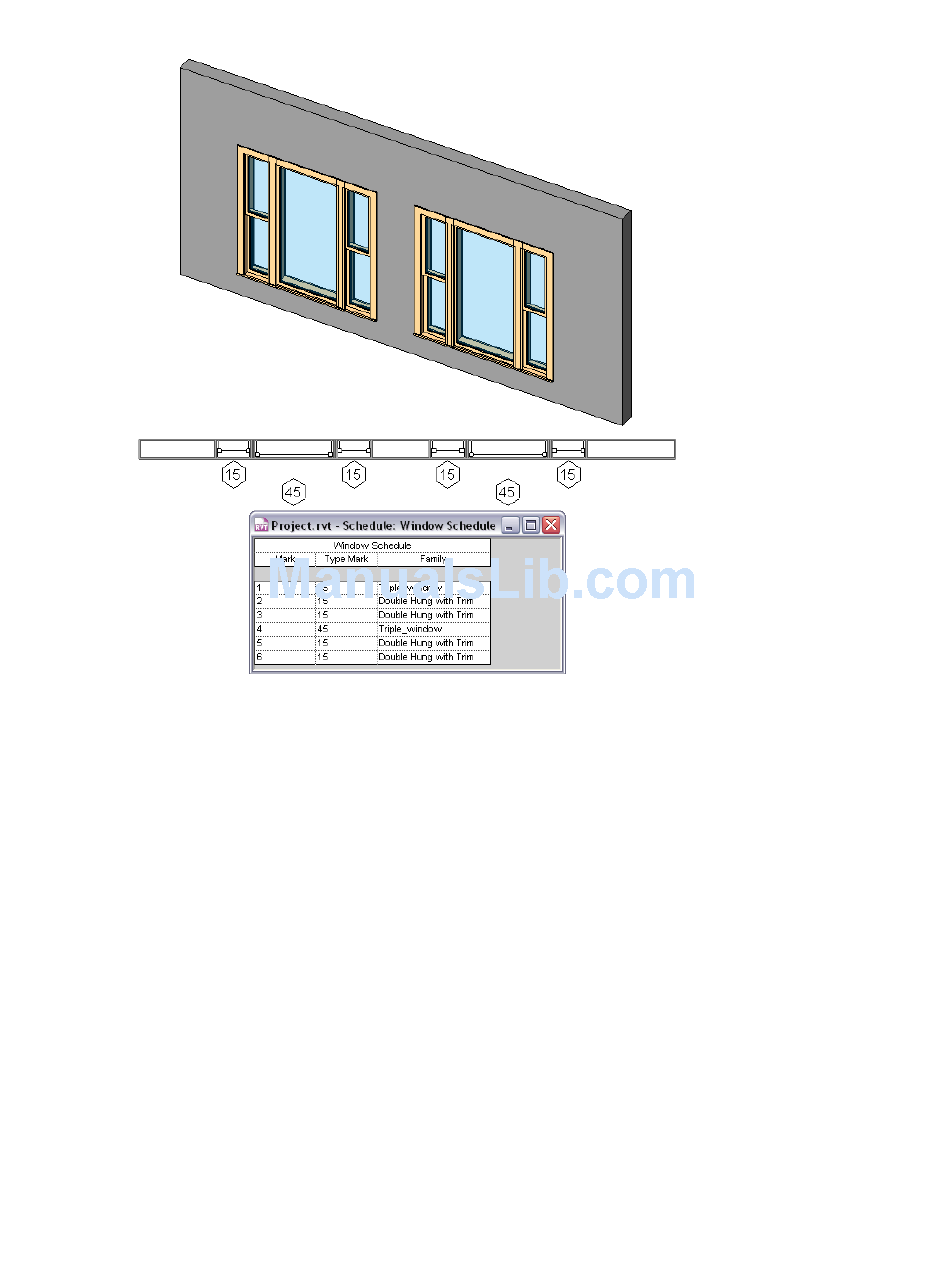

Nested family comprised of 2 shared window families loaded into a project
If a nested family is comprised of multiple categories, each sub-component will display in its respective
schedule and all components will display on a multi-category schedule.
How a shared family schedules is dependent on how it was designed in the Family Editor. See
Shared Families
the same method as any other schedule. See

Creating a Curtain Wall Panel Family

The Curtain Wall Panel family allows you to define a panel section that fits in a curtain wall grid. The panel
actually resizes itself to fit in the grid. You define the appearance of the panel in different views: plan,
elevation, 3D, and reflected ceiling plan. Typically, you define a 2D symbol to display in the plan view and
3D geometry to display in the elevation views and the 3D view.
Before reading this topic, you should already have read
416 | Chapter 8 Creating Your Own Components (Families)
on page 411 for more information. To create a schedule containing shared families, you use
Schedule Views on page 124.
Family Editor Basics
Creating
on page 341.
