Detail Level

You can set the detail level for newly created views based on view scale. View scales are organized under the
detail level headings Coarse, Medium, or Fine. When you create a new view in your project and set its view
scale, its detail level is automatically set according to the arrangement in the table.

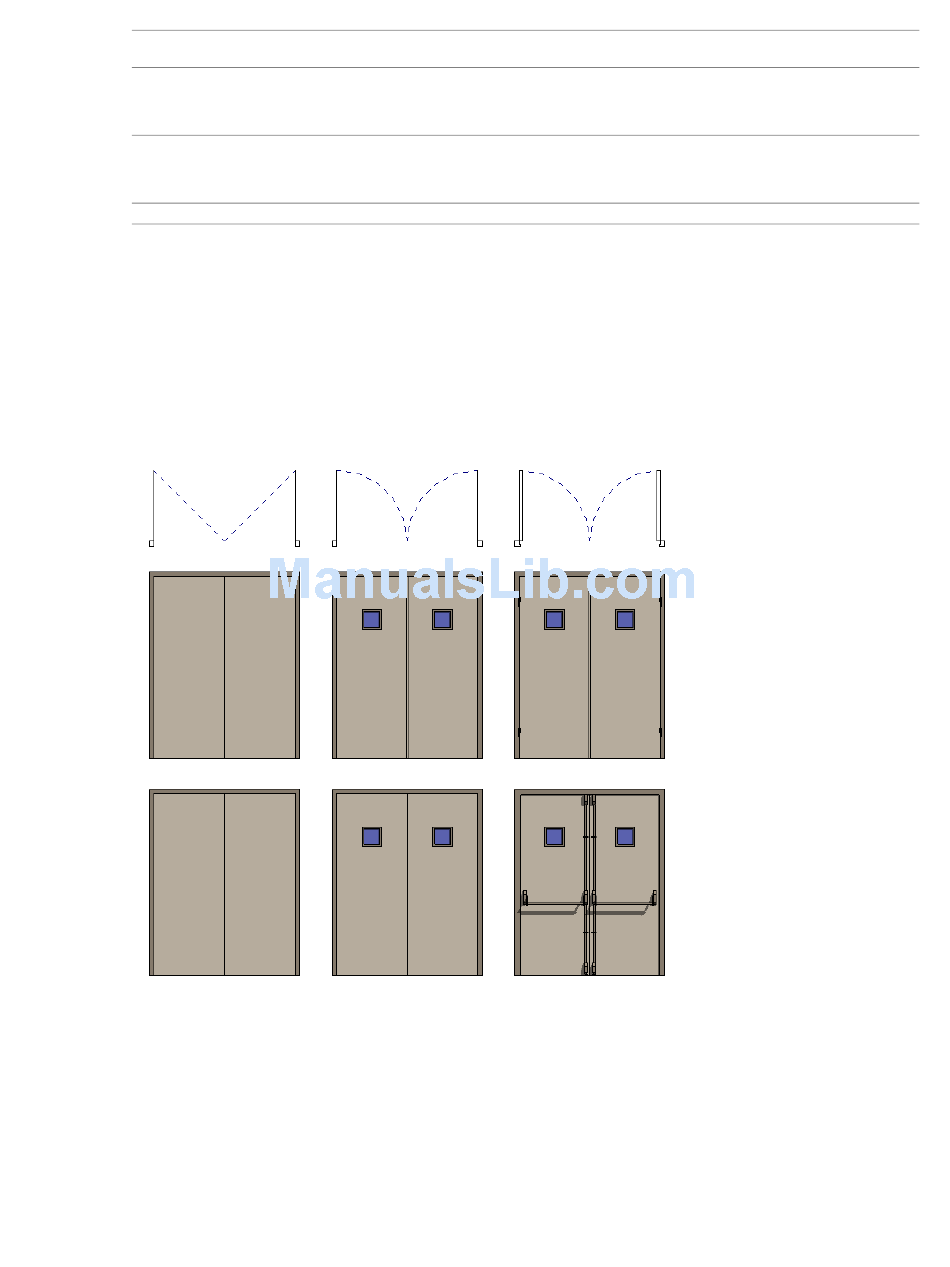

By predefining detail levels, you can affect the display of the same geometry at different view scales. So, a
custom door created in the Family Editor could appear differently at coarse, medium, and fine detail levels
(as shown in the following image).
You can override the detail level at any time by setting the Detail Level parameter in the View Properties
command. See
For information on detail levels and the display of structural components, see
Structural Components
Description
Specify the display for the color scheme. Foreground colors all elements in the room
or area; Background colors only the floor.
Specify depth clip plane settings. See
page 81.
View Properties on page 210.
on page 195.
Cutting a Plan View by the Back Clip Plane
Detail Levels and Display of
