Void Revolves

You can create a revolved shape to cut solid geometry.
1 In the Family Editor, click Void Form
2 Sketch a revolve to cut in the geometry. For more information on sketching revolves, see
3 To see the new revolve cut, open a 3D view.
392 | Chapter 8 Creating Your Own Components (Families)

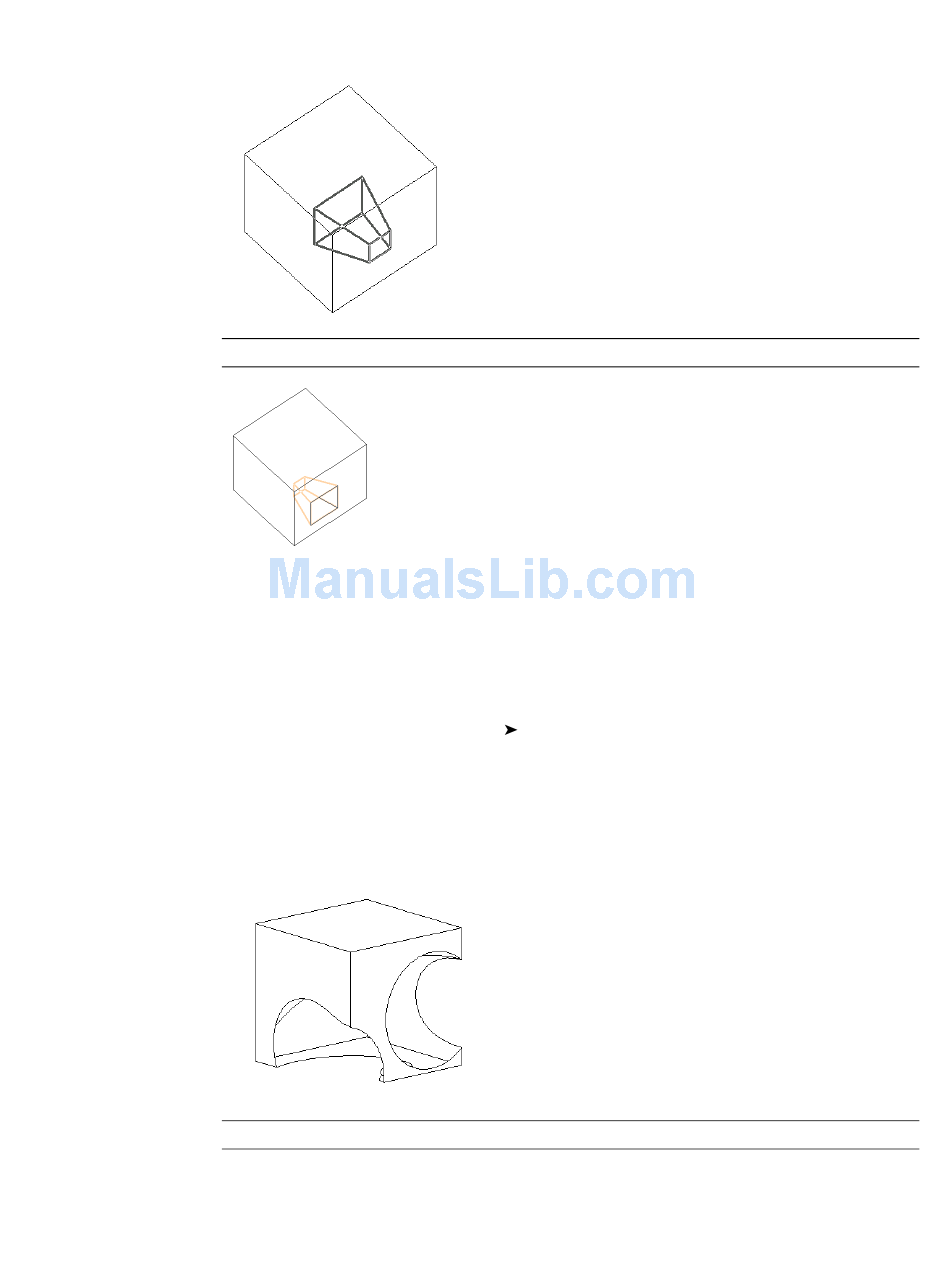

Solid geometry with blend cut
NOTE If you rest the cursor near the cut, you see the blend shape highlight.
You can then select the blend cut and edit the sketch if necessary.
Family tab of the Design Bar.
Solid Revolves on page 380.
Solid geometry with revolve cut
TIP If you rest the cursor near the cut, you see the revolve shape highlight.
Void Revolve on either the Modelling menu or the
Creating
