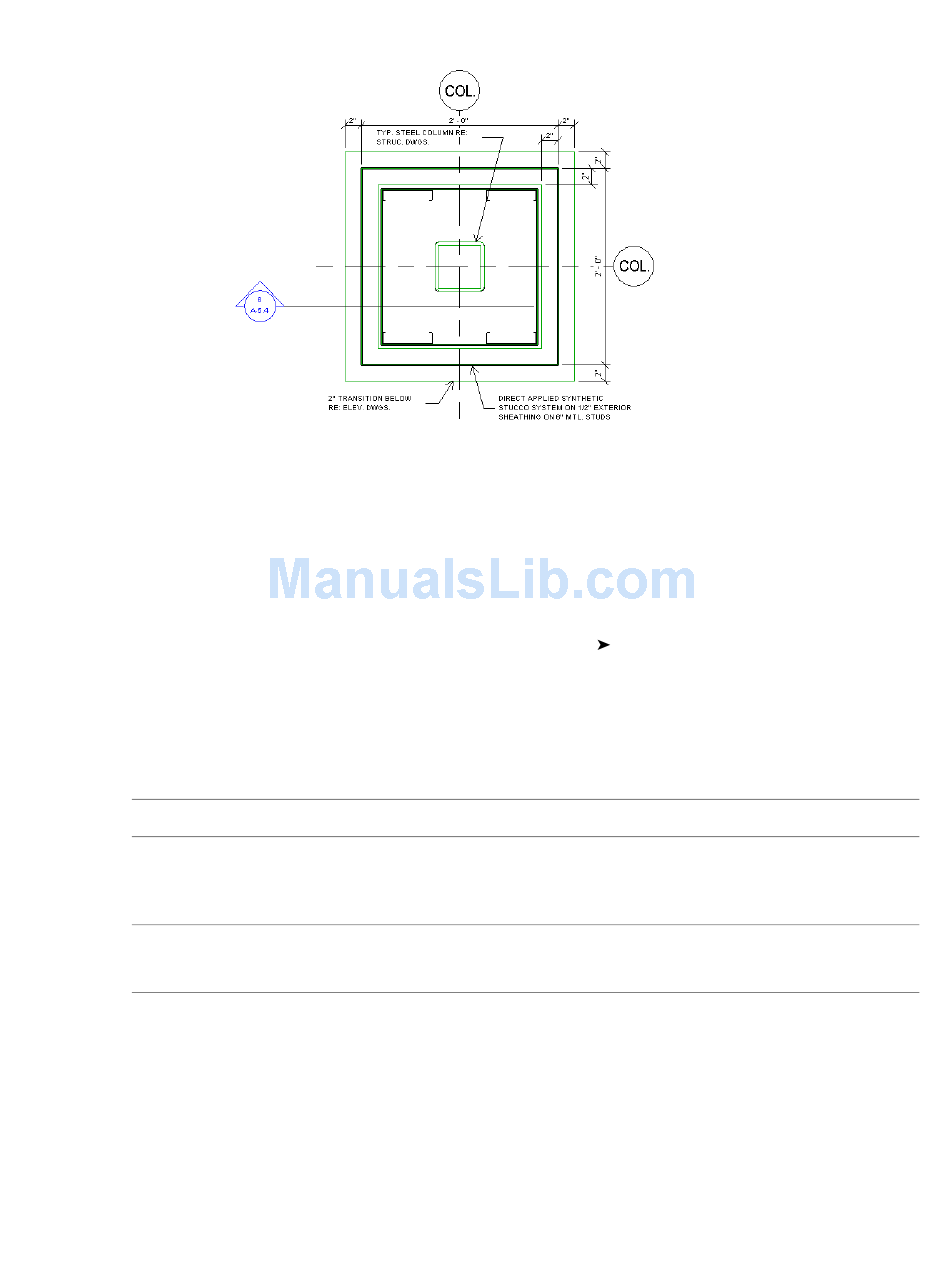

Sample details created with Revit Architecture detailing tools
Detail View Properties
Detail View Type Properties
Each detail view has type properties for section tags, callout tags, and reference labels. You can define the
appearance of section tags and callout tags using Settings menu
defines the text displayed next to the detail tag when the detail is a reference detail.
Detail View Instance Properties
This table lists parameters specific to detail views.
Name
Show in
Hide at scales coarser than
For descriptions on additional view properties, see
Description
Indicates whether the detail view tag displays in intersecting views or just the parent
view. If you create a detail view as a callout, then the callout appears as a section in
intersecting views.
Depending on the value of this parameter, the detail view tag does not display in
any view whose view scale is coarser than the value specified.
View Properties
View Tags. The Reference Label parameter
on page 210.
Types of Views for Detailing | 1077
