3 On the Options Bar, click
4 Select a grid line along which you want to place a beam.
5 On the Options Bar, click Finish to place beams along the gridline.
774 | Chapter 12 Working with Structural Components

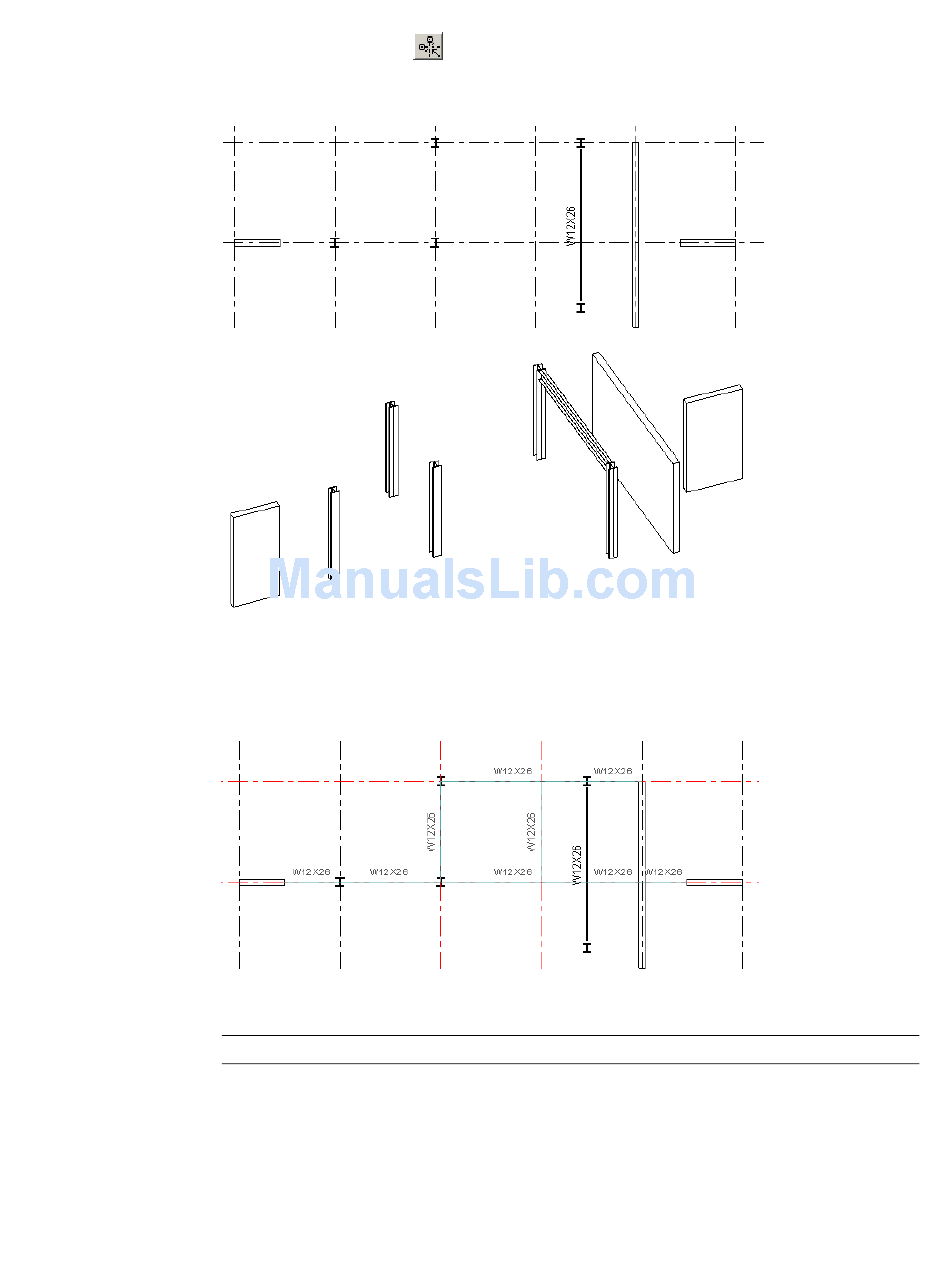

In the image below, you can see assorted columns, a beam, and structural walls in a plan and
3D view. In this case, you can use the Grid tool to add the majority of the beams automatically.
Press and hold CTRL to select multiple grids.
In the image shown below, grids have been selected and beams have been added automatically
between all columns, walls, and beams.
TIP You can also draw a pick box to select multiple grid lines.
.
