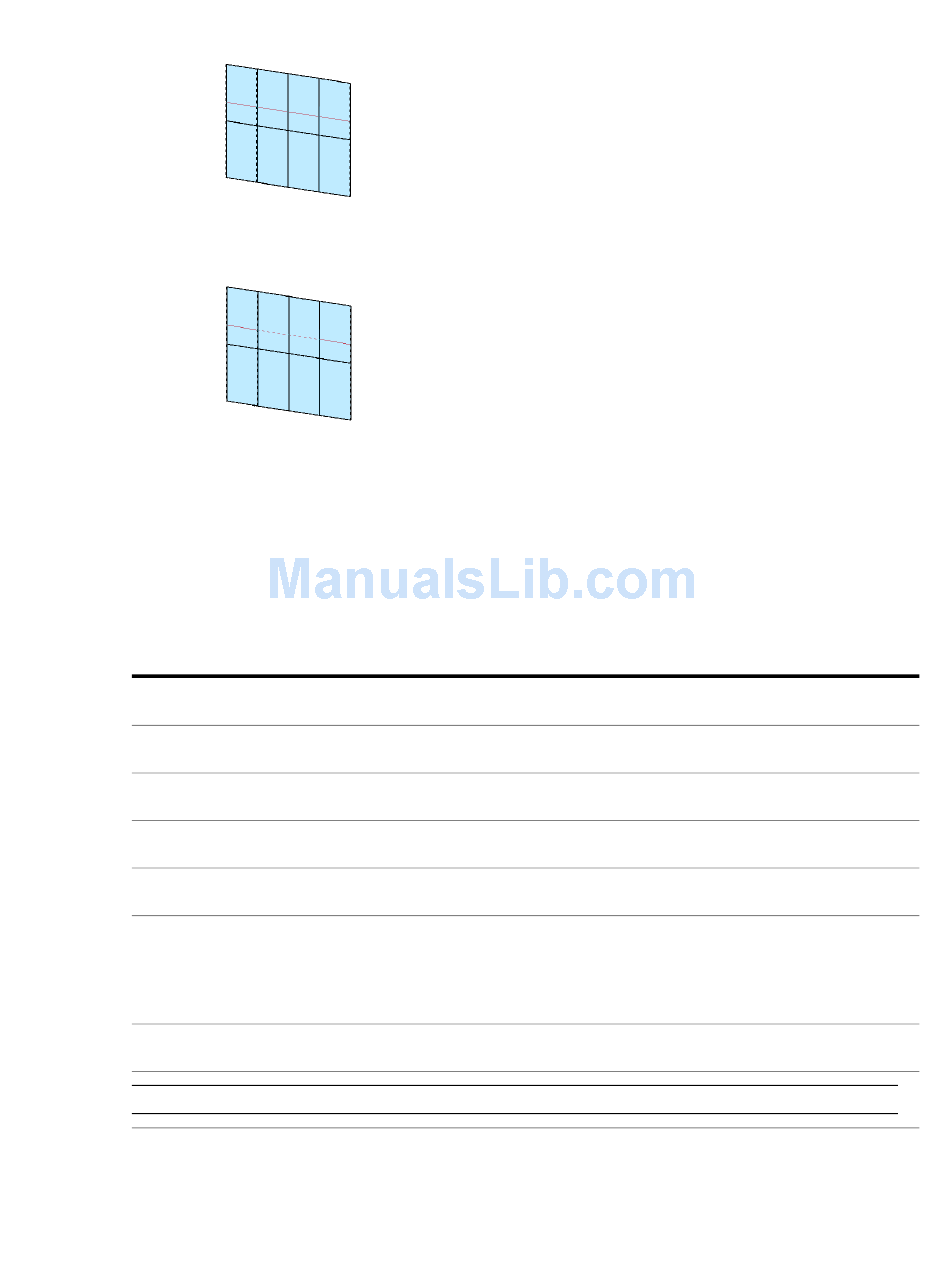

The curtain grid line is displayed in red.
5 Click segments of the curtain grid to exclude them from panels.
When you click the segments, they are displayed as dashed lines.
6 When you finish excluding segments, on the Options Bar, click Start Next to place a new curtain
grid.

Type-Driven Curtain Element Layout

You can specify a curtain element layout for walls, sloped glazings, and curtain systems. By specifying the
layout by type, you can place many instances that already have panels, grids, and mullions on them.
You create a curtain grid layout by specifying a combination of type and instance parameters that affect the
faces of the curtain element, as follows:
Type Properties
Name
Construction
Automatically Embed (curtain walls only)
Curtain Panel
Join Condition
Vertical Grid Pattern (for curtain walls) or Grid 1 Pattern (for curtain systems and sloped glazings)
NOTE These descriptions apply to the Horizontal Grid Pattern or Grid 2 Pattern.
Description
Determines whether the curtain wall embeds into other walls.
Specifies the curtain panel family type for the curtain element.
Controls which mullions break at intersections on a curtain element type.
For example, use this parameter to make all horizontal or vertical mullions
on a curtain wall continuous, or to make mullions on grid 1 or grid 2
continuous on a curtain system or sloped glazing.
