Elevation View Properties

Each elevation has type properties for elevation tags, callout tags, and reference labels. You can define the
look of elevation tags and callout tags using the Settings menu
parameter sets the text displayed next to the elevation tag when the elevation is a reference elevation.

Modifying Elevation Symbol Properties

You can set various parameters to modify the display of the elevation symbols.
1 Click Settings menu
2 In the Type Properties dialog, make the necessary changes to the elevation symbol properties.
3 Click OK.

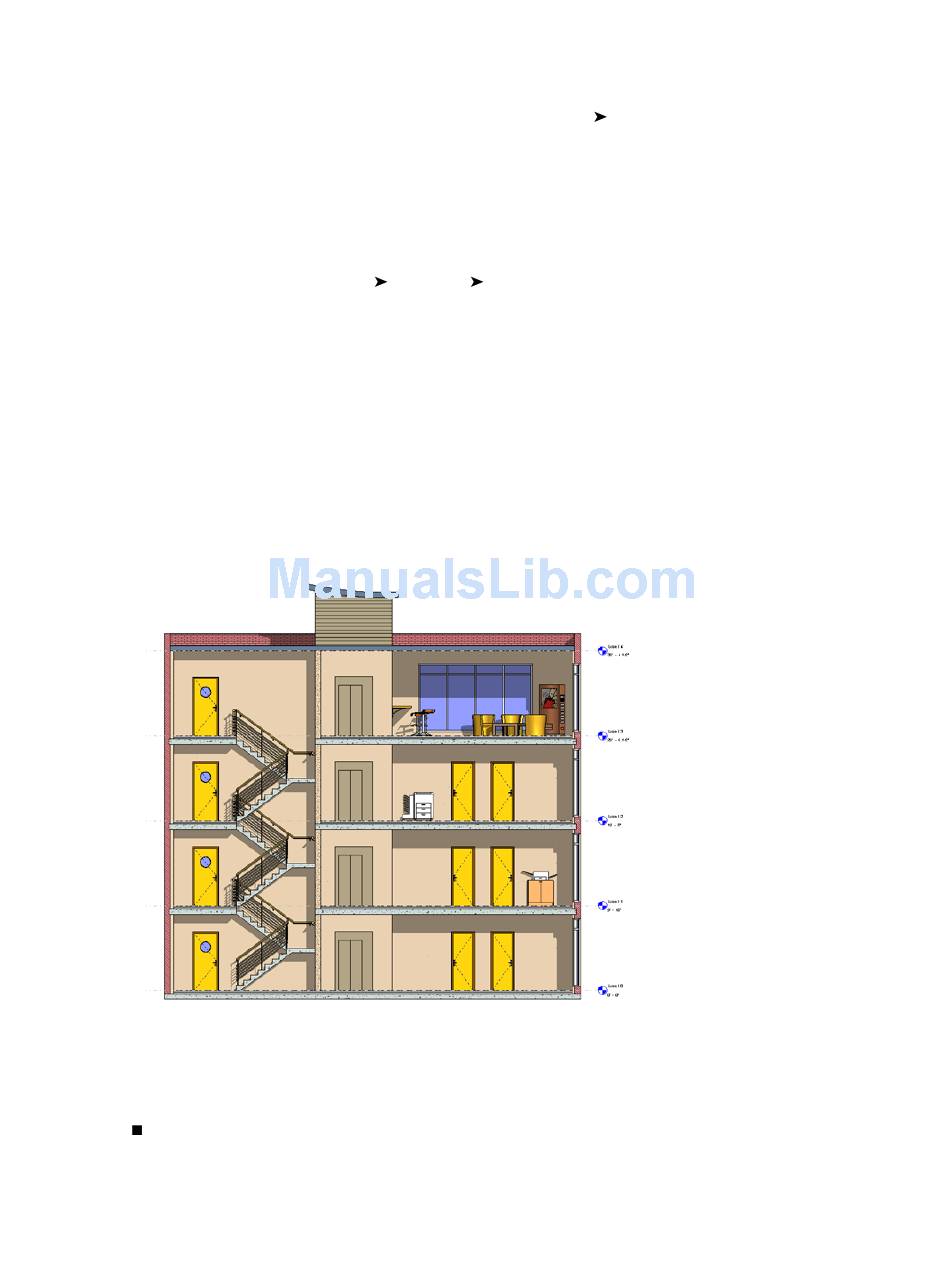

Section Views

Sections views cut through the model. You can draw them in plan, section, elevation, and detail views.
Section views display as section representations in intersecting views.
You can create building, wall, and detail section views. Each type has a unique graphical display, and each
is listed in a different location in the Project Browser. Building and wall section views appear in the Sections
(Building Section) branch and Sections (Wall section) branch of the Project Browser. Detail sections appear
in the Detail Views branch.
You can cut a section view at the far clip plane. For more information, see
Callout View by the Far Clip Plane
Considerations for Section Views in the Family Editor
You can create a section view in the Family Editor. The Section command is on the Family tab of the
Design Bar in the Family Editor.
View Tags Elevation Tags.
on page 87.
View Tags command. The Reference Label
Cutting an Elevation, Section, or
Elevation View Properties | 91
