Rotating a Section View or Scope Box

1 Open the project view that contains the section (callout) or scope box to rotate.
2 Select the section (callout) or scope box.
3 On the toolbar, click Rotate (
4 Rotate the view.

Rotating a Viewport on a Sheet View

1 Open the sheet view that contains the viewport to rotate.
2 Select the viewport.
3 On the Options Bar, select a value for Rotation on Sheet.
When you rotate a viewport, the view title also rotates.

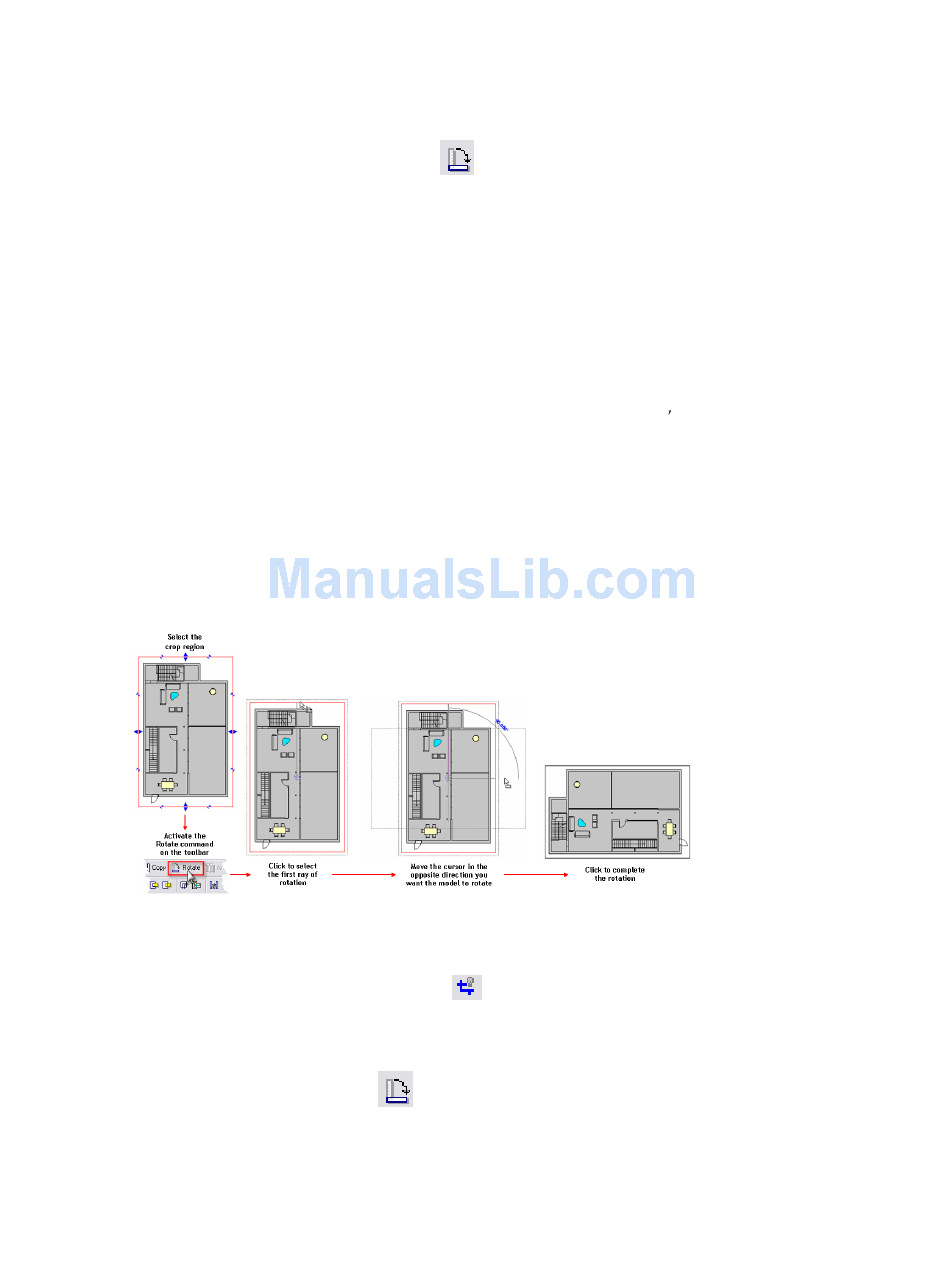

Rotating a View by the Crop Region

When you rotate a view by rotating the crop region, the model rotates in the opposite direction of the crop
region.
To rotate a view by its crop region:
1 Open the project view to rotate.
2 On the View Control Bar, click
3 Select the crop region.
4 On the toolbar, click
5 Rotate the view.
168 | Chapter 4 Project Views
For more information about the Rotate command, see
The view rotates, and the value is propagated to the viewport s View Rotation on Sheet instance
parameter.
The crop region displays in the view. You may need to zoom out to see it.
For more information about the Rotate command, see
).
(Show Crop Region).
(Rotate).
Rotating Elements on page 308.
Rotating Elements on page 308.
