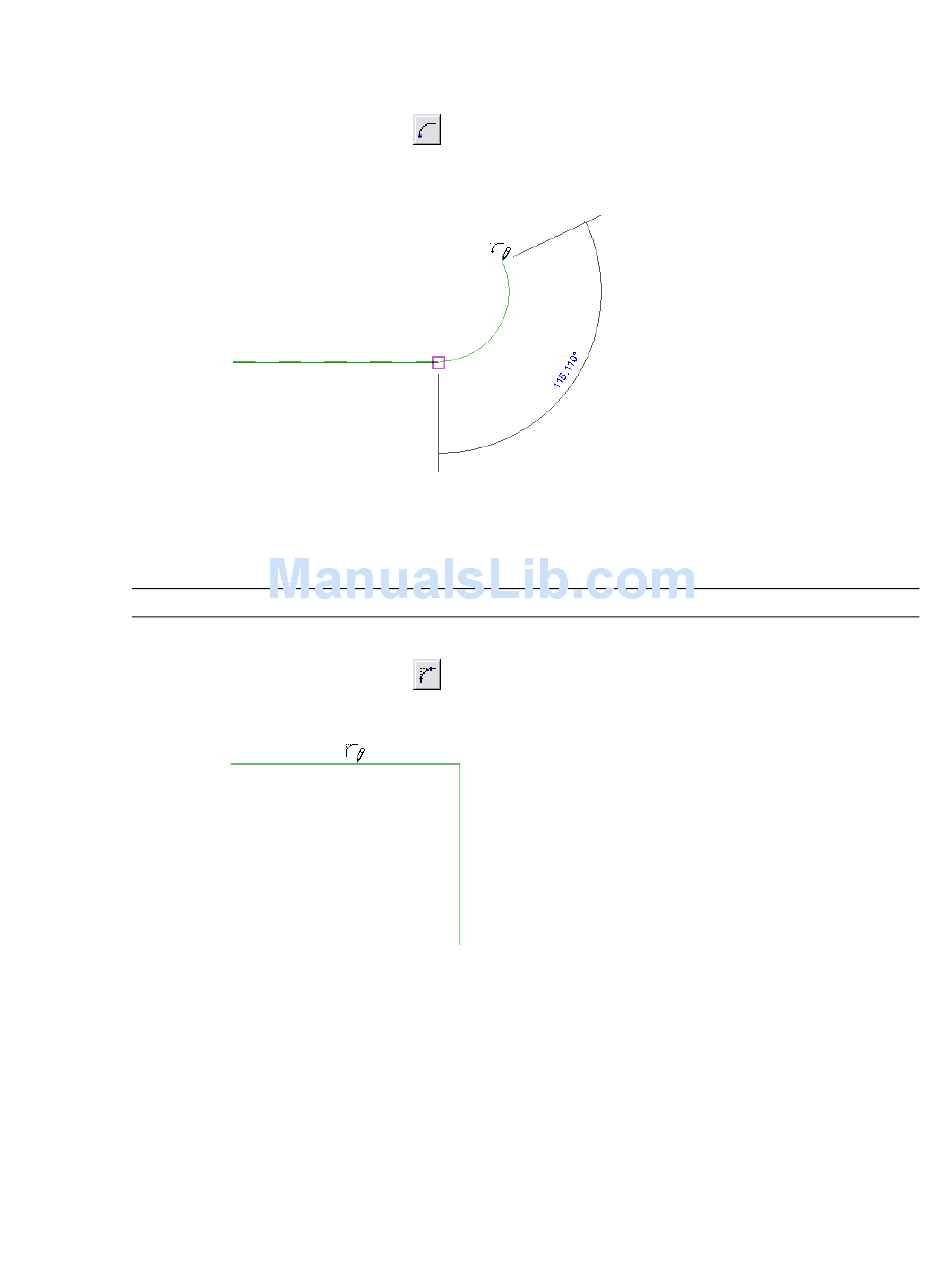

Sketching a Tangent Arc

1 On the Design Bar, select a tool that allows for an arc, such as Lines.
2 On the Options Bar, click
3 Click the endpoint of an existing wall or line to specify the start point for the tangent arc.
4 Move the cursor and click to specify the end point of the arc.

Sketching a Fillet Arc

NOTE You can only fillet elements that are created with the Line (this includes sides of polygons) or Arc options.
1 On the Design Bar, select a tool that allows for an arc, such as Lines.
2 On the Options Bar, click
3 Select the first element to fillet.
4 Select the second element to fillet.
(Tangent arc), and place the cursor in the drawing area.
(Fillet arc), and place the cursor in the drawing area.
Sketching Arcs | 259
