4 Specify Units, if necessary.
5 For Rounding, select an appropriate value. If you select Custom, enter a value in the Rounding
6 For Unit symbol, select an appropriate option from the list.
7 Optionally select:
8 Click OK.

Changing Decimal Display and Digit Grouping

1 Click Settings menu
2 In the Project Units dialog, select a value from the Decimal symbol/digit grouping list.
3 In the Format column, click the button for the unit you want to use this setting.
4 In the Format dialog, select Use digit grouping.
5 Click OK 2 times.

Snaps

When you place an element or component, or sketch a line (straight, arc, or circle), Revit Architecture
displays snap points and snap lines to assist in lining up elements, components, or lines with existing
geometry. Snap points depend on the type of snap, but are represented in the drawing area as shapes (triangles,
squares, diamonds, and so on). Snap lines are represented as dashed green lines in the drawing area.

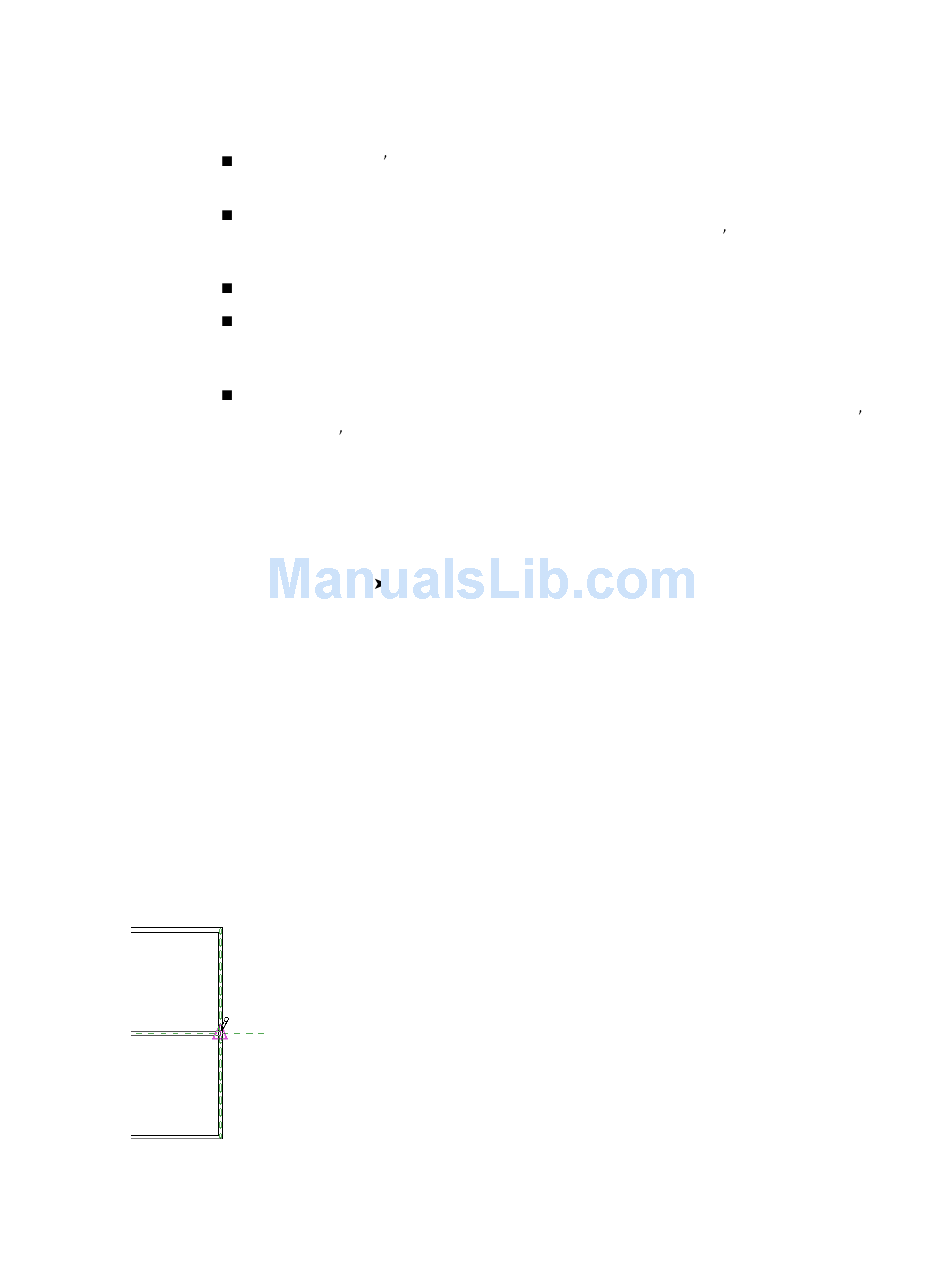

The following illustration shows the green dashed snap line and a midpoint snap point (triangle).
increment text box.
Suppress trailing 0 s
When selected, trailing zeros do not display (for example, 123.400 displays as 123.4).
Suppress 0 feet
When selected, does not display the 0 foot value (for example, 0 - 4" displays as 4"). This
option is available for Length and Slope units.
Show + for positive values
Use digit grouping
When selected, the Decimal symbol/digit grouping option specified in the Project Units
dialog is applied to the unit value.
Suppress spaces
When selected, suppresses spaces around feet and fractional inches (for example, 1 - 2"
displays as 1 -2"). This option is available for Length and Slope units.
Project Units, or type the keyboard shortcut UN.
Changing Decimal Display and Digit Grouping | 493
