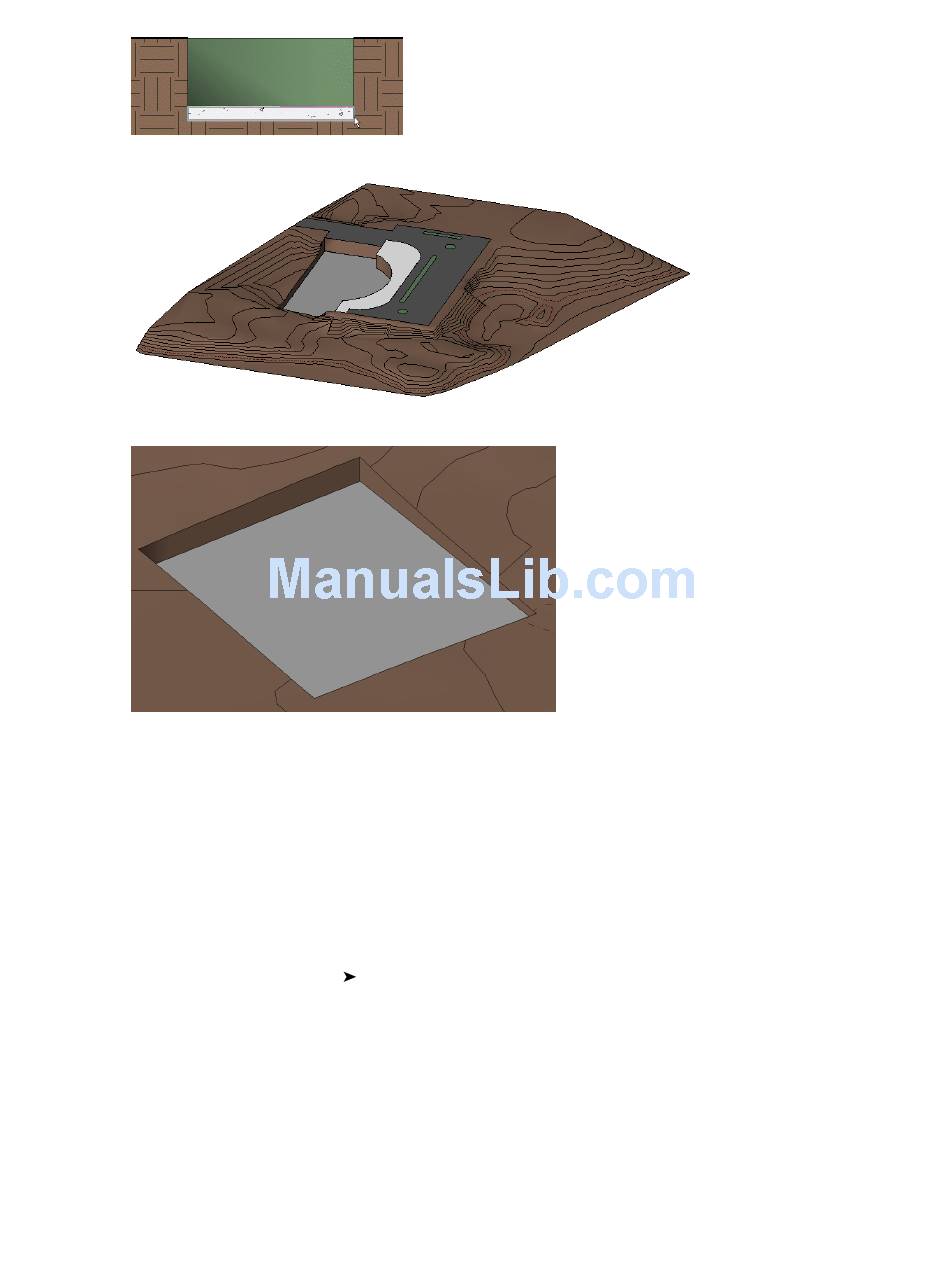

The following image shows a 3D view of a building pad on a graded toposurface.
The following image shows a 3D view of a sloped building pad on a toposurface.
You can add a building pad to a toposurface only. It is recommended that you create the building pad within
a site plan. However, you can add a building pad to a toposurface in a floor plan view. The pad may not be
immediately visible in the floor plan view if the view range or building pad offset are not adjusted
appropriately. For example, suppose that you sketch a toposurface at an elevation of 10 meters in a floor
plan view. You then sketch a pad on the surface at an offset of –20 meters from the surface. If the view depth
of the plan view is not low enough, you will not see the pad. See

Adding a Building Pad

1 Open a site plan view.
2 Click Site menu
3 Sketch the building pad as a closed loop.
4 On the Design Bar, click Pad Properties.
5 In the Element Properties dialog, set the Height Offset From Level and other building pad
6 Click OK.
7 Click Finish Sketch.
Pad, or on the Site tab of the Design Bar, click Pad.
For more information, see
properties as needed. See
Sketching on page 251.
Building Pad Properties on page 905.
View Range on page 198.
Adding a Building Pad | 903
