Dimensioning to a Wall Sweep

1 Place a dimension between the wall sweep end face reference and another reference.
2 To change the dimension value, drag the wall sweep s shape handle.

Changing a Wall Sweep s Horizontal or Vertical Offset

To move a single wall sweep segment
1 Select the segment.
2 Move it up or down (horizontal wall sweeps) or side to side (vertical wall sweeps).
To move a multi-segmented wall sweep
1 Place the cursor over the wall sweep and press TAB to select the shape handle of the wall sweep.
2 Click to select the shape handle.
3 Move the wall sweep up or down (horizontal wall sweeps) or side to side (vertical wall sweeps).
596 | Chapter 11 Working with Architectural Components

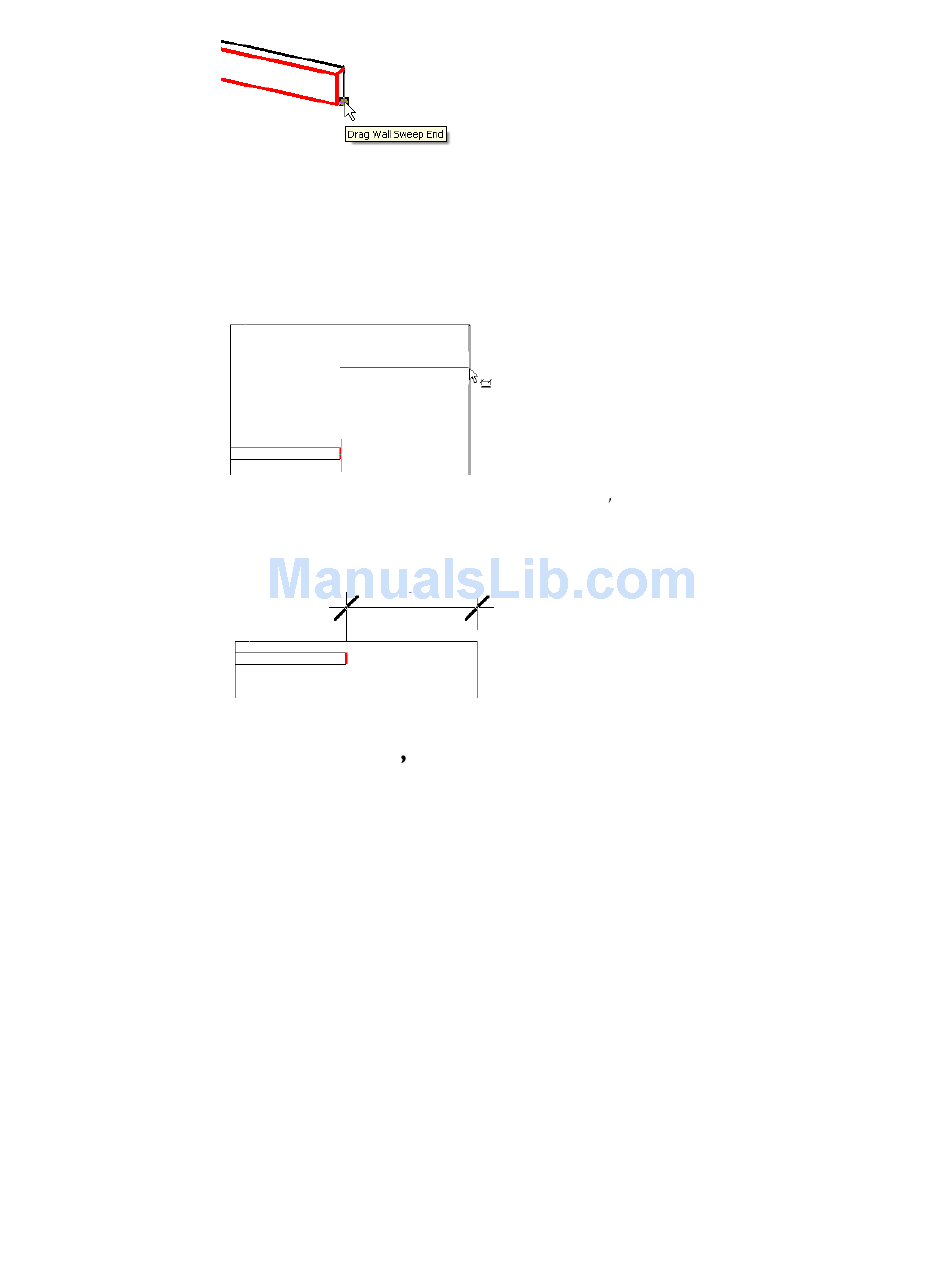

Dimension references between wall sweep end face and wall
The dimension value adjusts accordingly.
Selected shape handle on sweep
Watch the status bar to know when you are highlighting the shape handle.
This affects the offset of all segments of the wall sweep, so the segments are symmetrical.
