2 Select and move the end drag control near the bubble to resize the level line.
3 Click the Add Elbow drag control (
As you drag a control, the cursor snaps at points similar to neighboring level lines; the cursor also snaps as
the segments form straight lines.

Level Properties

Parameter names, values, and descriptions for levels. Most values are modifiable.

Modifying Level Properties

1 In a project view, select a level line, and click
2 In the Element Properties dialog, edit instance properties.
3 To edit type properties, click Edit/New.
1044 | Chapter 16 Annotating and Detailing

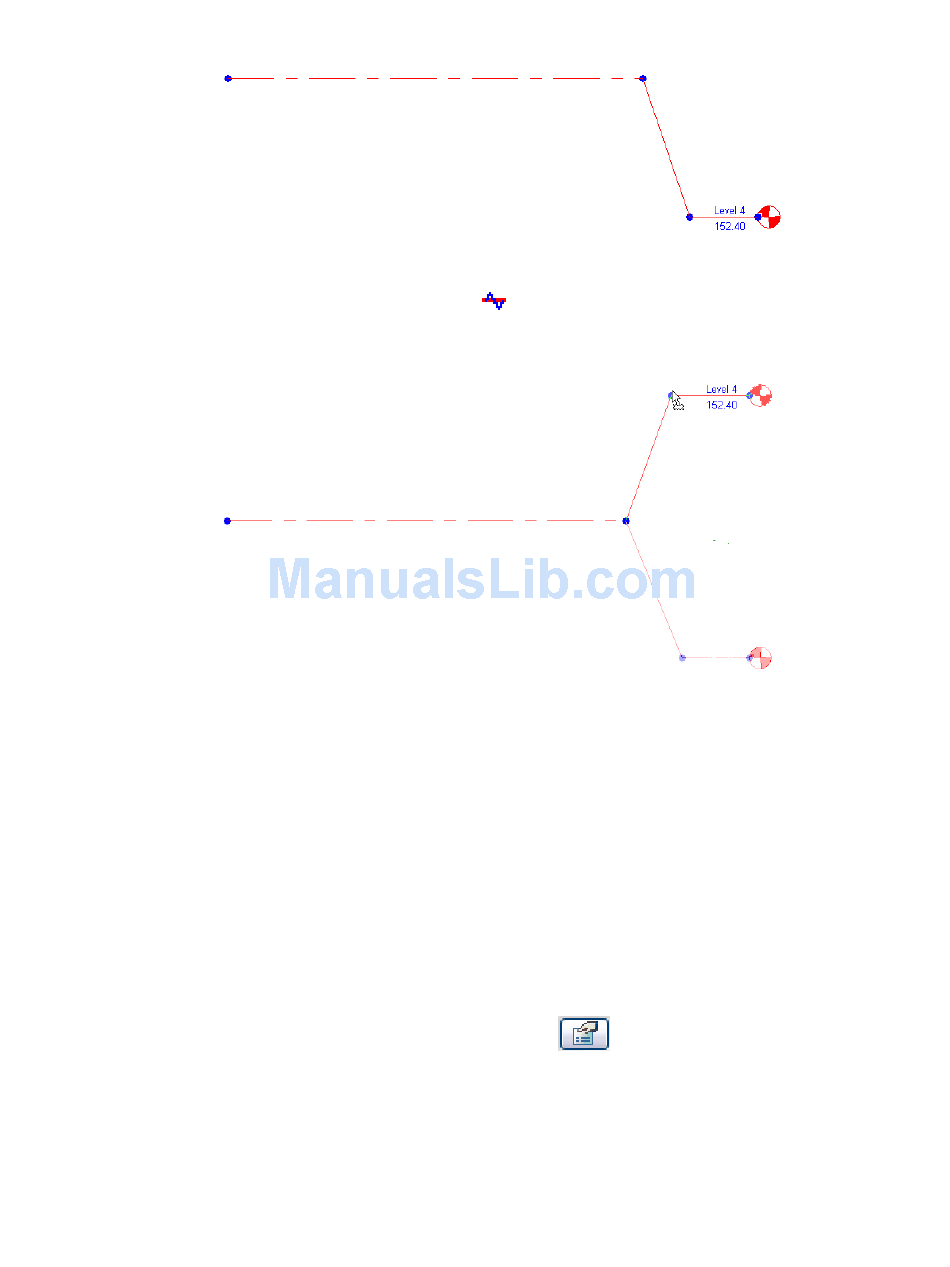

Selected level with drag controls
the bubble away from the level line.
Bubble dragged from level line
When you move the bubble end out of line, the effect appears only in that view, no other views
are affected. The segments created from dragging the bubble have a solid line style. You cannot
change this style.
Changes made to type properties affect all level lines of that type in the project. You can click
Duplicate to create a new level line type.
), then drag the control to the desired location to move
.
