Curtain Systems - Autodesk 24000-000000-9860 - Revit Architecture - PC User Manual

2 Add curtain grids.
3 Select a curtain grid.
4 On the Options Bar, click Add or Remove Segments.
5 Click on a curtain grid segment to remove it.
6 On the Design Bar, click Modify.
Unjoining Panels
To separate panels, you add curtain grid segments back.
1 Select a curtain grid.
2 On the Options Bar, click Add or Remove Segments.
3 Click the dashed segment to restore the curtain grid segment.
4 On the Design Bar, click Modify.
Merging Tips
You can make non-rectangular curtain wall panels with the system panel type only.
If you join panels of different types, the resulting panel is of the type you first selected.
Use hidden line view to clearly see which panels are joined. See
page 202.

Curtain Systems

A curtain system is a component that comprises panels, curtain grids, and mullions. It usually does not have
a rectangular shape. You can create a curtain system by selecting lines, or by selecting element faces. After
you create a curtain system, you can add curtain grids and mullions using the same technique as curtain
walls.
716 | Chapter 11 Working with Architectural Components
See Creating Rectangular Curtain Walls
As you remove segments, adjacent panels join.

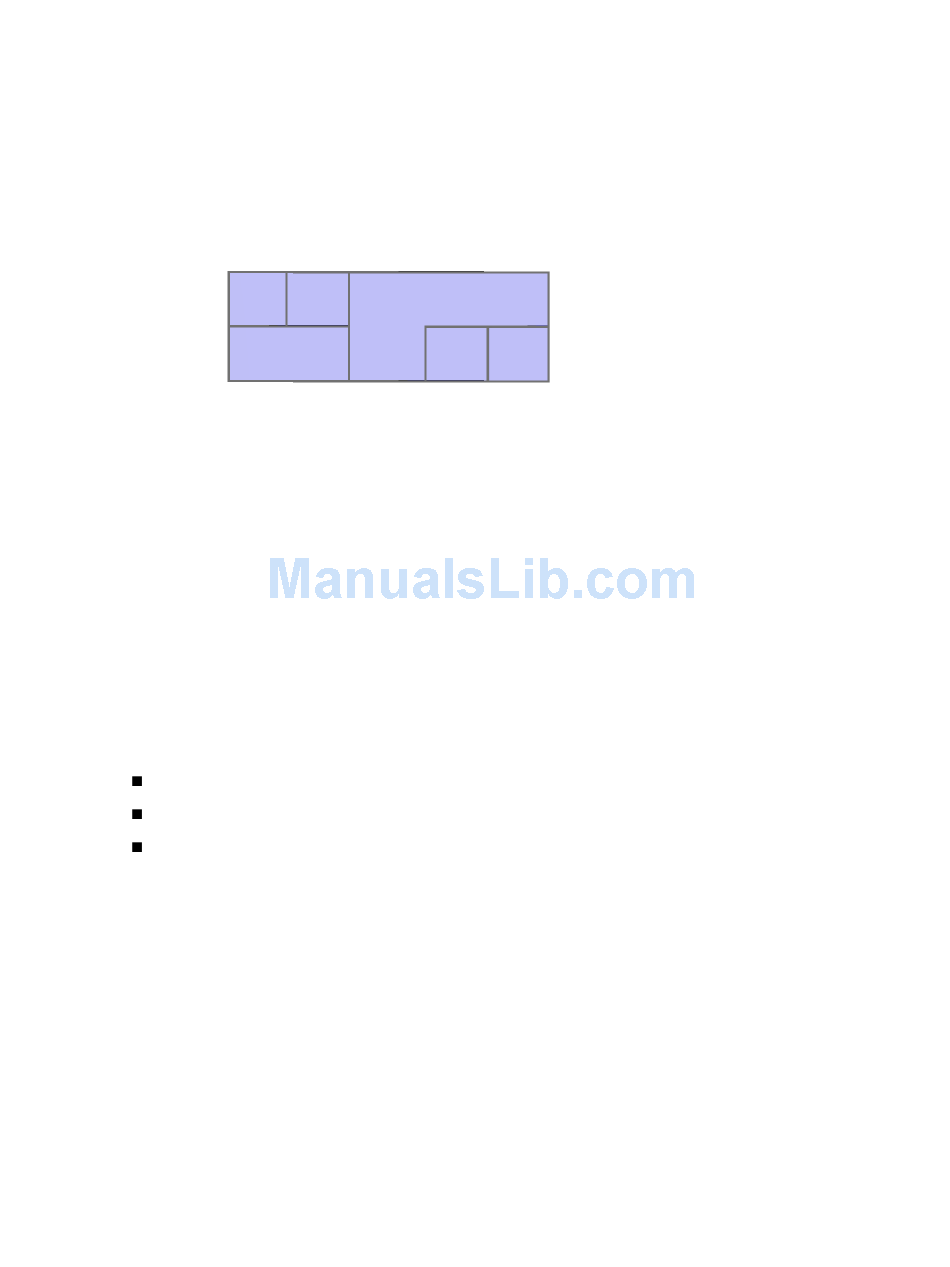

Curtain wall with merged panels
The dashed lines indicate a segment that was removed previously. The joined panels revert back
to their unjoined state.
on page 702.
Hidden Line Model Graphics Style on
