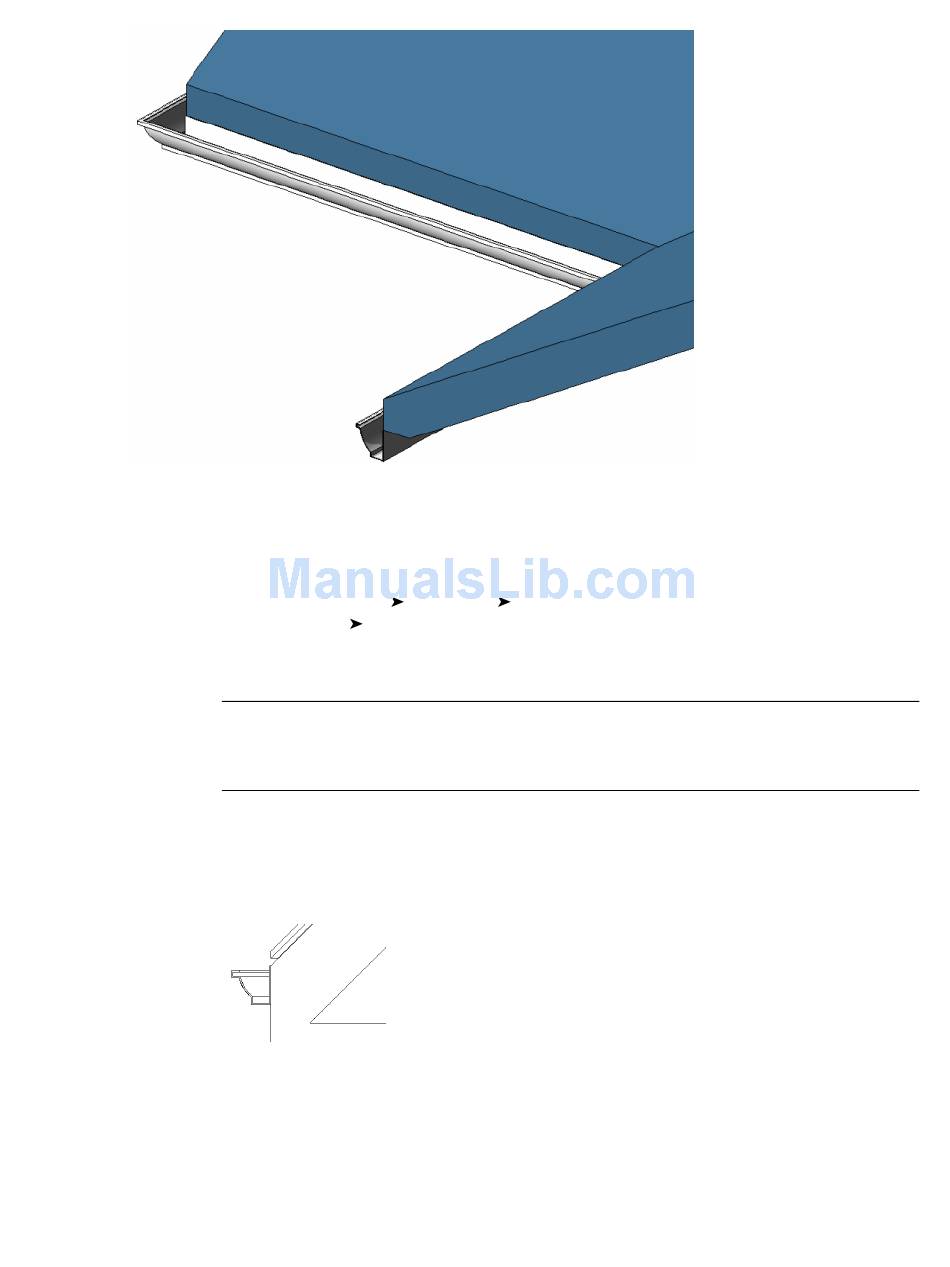

You can place gutters in 2D views, such as plan or section views, or 3D views.

Adding Roof Gutters

1 Click Modelling menu
2 Highlight horizontal edges of roofs, soffits, fascias, or model lines, and click to place the gutter.
3 On the Options Bar, click Start Next to start a different gutter.
4 Move the cursor to a new edge, and click to place.
5 To finish placing gutters, click on white space in the view.
630 | Chapter 11 Working with Architectural Components
click Host Sweep Roof Gutter.
As you click edges, Revit Architecture treats this as one continuous gutter.
NOTE Watch the status bar. It will indicate valid references, or points where you can place roof
gutters. For example, if you are placing a gutter on a roof, a valid reference might be: Roofs : Basic
Roof : Reference. When you place gutters in a section view, place the cursor near the corners of the
element to highlight the reference or press TAB.
Gutter in section
Host Sweep Roof Gutter, or on the Modelling tab of the Design Bar,
