Displaying Vertical Headings in a Schedule on a Sheet

When you place a schedule on a sheet, you can specify that one or more column headings display vertically

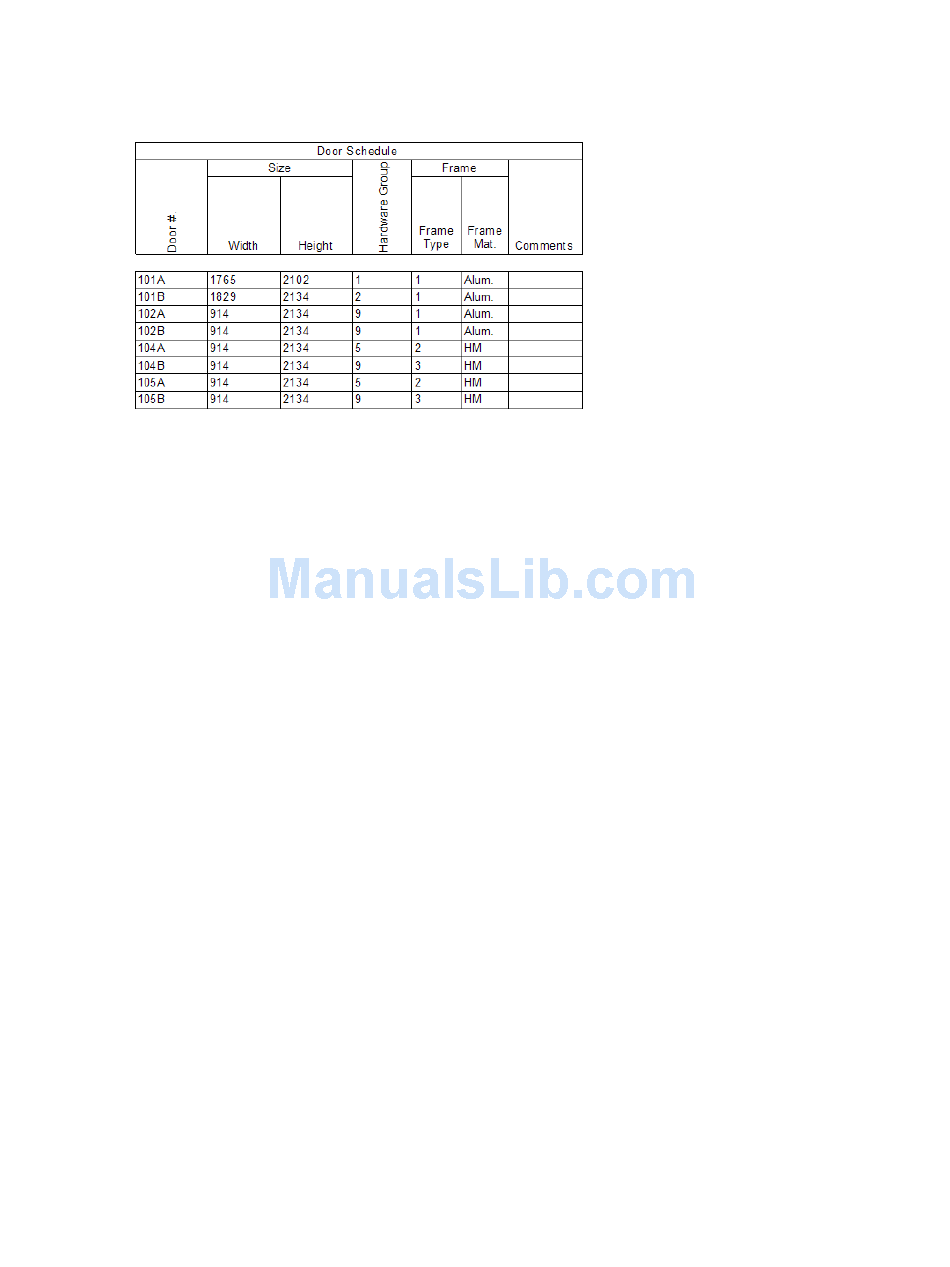

instead of horizontally, as shown
The following procedure assumes that you have
it on the sheet.
To display vertical column headings for a schedule on a sheet
1 In the Project Browser, under Schedules/Quantities, right-click the schedule name, and click
2 In the Element Properties dialog, for Formatting, click Edit.
3 For each field whose column heading is to display vertically in the sheet, do the following:
4 Click OK twice.
5 Open the sheet to see the results.
In the schedule, the column headings for the selected fields display vertically instead of horizontally. See
Adjusting Schedule Columns on a Sheet

Drawing Lists

A drawing list is a schedule of the sheets in a project. A drawing list can also be referred to as a drawing
index or a sheet index. You can use a drawing list as a table of contents for a construction document set.
The drawing list is typically placed on the
Properties.
a On the Formatting tab of the Schedule Properties dialog, under Fields, select the field.
b For Heading orientation, select Vertical.
This setting affects the column heading on a sheet only. It does not affect its display in the
schedule view.
added a sheet to a project,
on page 1004.
title sheet.
Displaying Vertical Headings in a Schedule on a Sheet | 1005
created a schedule, and placed
