Creating Roofs from Mass Instances

Using the Roof by Face command, you can create roofs on any non-vertical faces of a mass. You cannot
select faces from different masses for the same roof.
The Roof by Face command is available on the Massing tab of the Design Bar or from the Roof command
menu on the Modelling tab of the Design Bar.
You can also create roofs or edit the roof sketch using the Roof by Footprint or Roof by Extrusion commands.
For more information about Roof by Footprint and Roof by Extrusion, see

Creating Roofs Using the Roof by Face Command

1 On the Massing tab of the Design Bar, click Roof by Face.
2 In the Type Selector, select a roof type.
3 If desired, on the Options Bar, specify the level of the roof.
4 To select more than one face, on the Options Bar, select Multiple. Otherwise, clear this option.
5 Move the cursor to highlight a face that you want to turn into a roof.
For more information on roofs, see

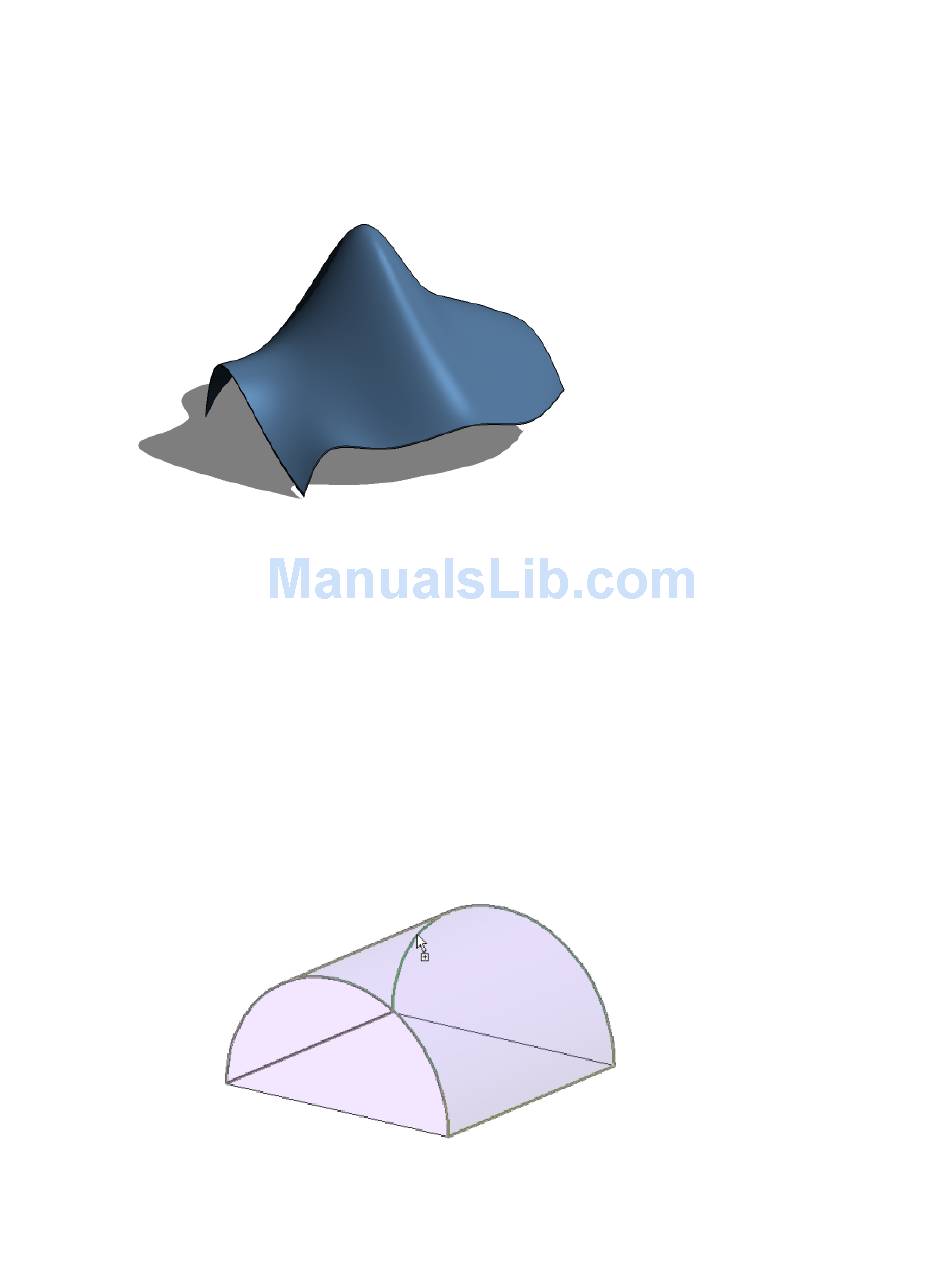

Cursor highlighting cylindrical face
Roofs on page 606.
Creating Roofs from Mass Instances | 551
Roofs on page 606.
