4 Select the desired options:
5 If you selected Move To 2nd, place array members as follows:
6 If you selected Move To Last, place array members as follows:
7 If you selected Group and Associate on the Options Bar, a number box appears, indicating the
Revit Architecture creates the specified number of copies of the selected elements, and places them using
the appropriate spacing.

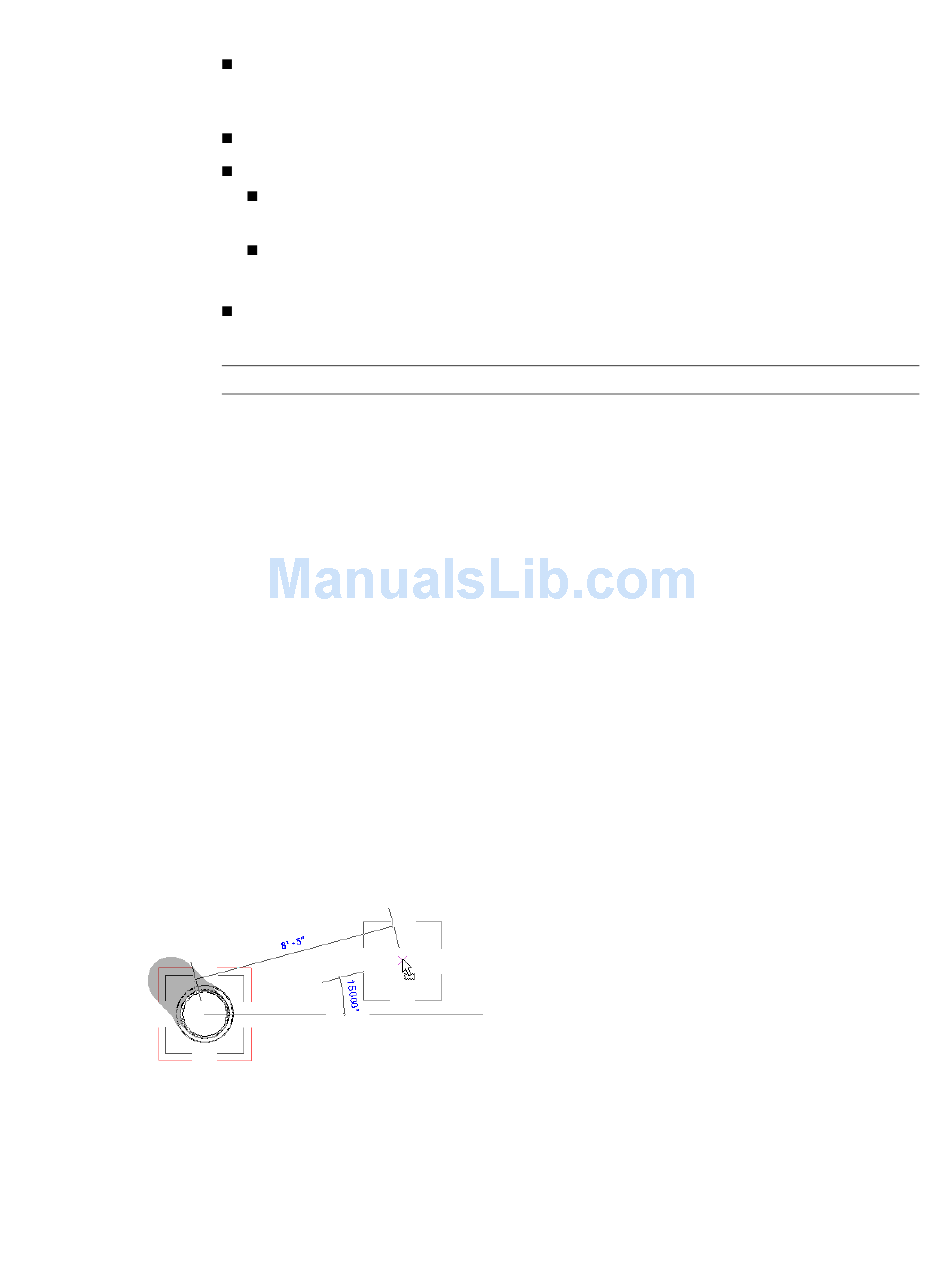

Placing the first and second items in a linear array
296 | Chapter 7 Editing Elements
Group And Associate: Includes each member of the array in a group. If not selected, Revit
Architecture creates the specified number of copies and does not group them. Once placed,
each copy acts independently of the others.
Number: Specifies the total number of copies (of the selected elements) in the array.
Move To:
2nd: Specifies the spacing between each member of the array. Additional array members
appear after the second member.
Last: Specifies the entire span of the array. Array members are evenly spaced between the
first member and the last member.
Constrain: Restricts movement of array members along vectors that run perpendicular or
collinear to the selected elements.
NOTE You cannot group together detail components and model components.
a Click in the drawing area to indicate a starting point for measuring.
b Move the cursor the desired distance between members. As you move the cursor, a box
appears to indicate the size of the selected elements. The box moves along snap points. A
dimension appears between the first click location and the current cursor position.
c Click again to place the second member, or type a dimension and press ENTER.
a Click in the drawing area to indicate a starting point for measuring.
b Move the cursor to the desired location for the last array member. As you move the cursor,
a box appears to indicate the size of the selected elements. The box moves along snap
points. A dimension appears between the first click location and the current cursor position.
c Click again to place the last member, or specify a dimension and press ENTER.
number of copies to create in the array. If desired, change the number and press ENTER.
