Roof Slope - Autodesk 24000-000000-9860 - Revit Architecture - PC User Manual

2 Select the reference plane, click
3 Open the 3D view, and click Tools menu
4 In the Work Plane dialog, select the work plane name you just created in Step 2, and click OK.
5 Use the Align tool to align roof ridges. See

Roof Slope

You can change the slope of any slope-defining lines in a roof without editing the roof. Select the roof and
access its properties to view the Slope parameter.

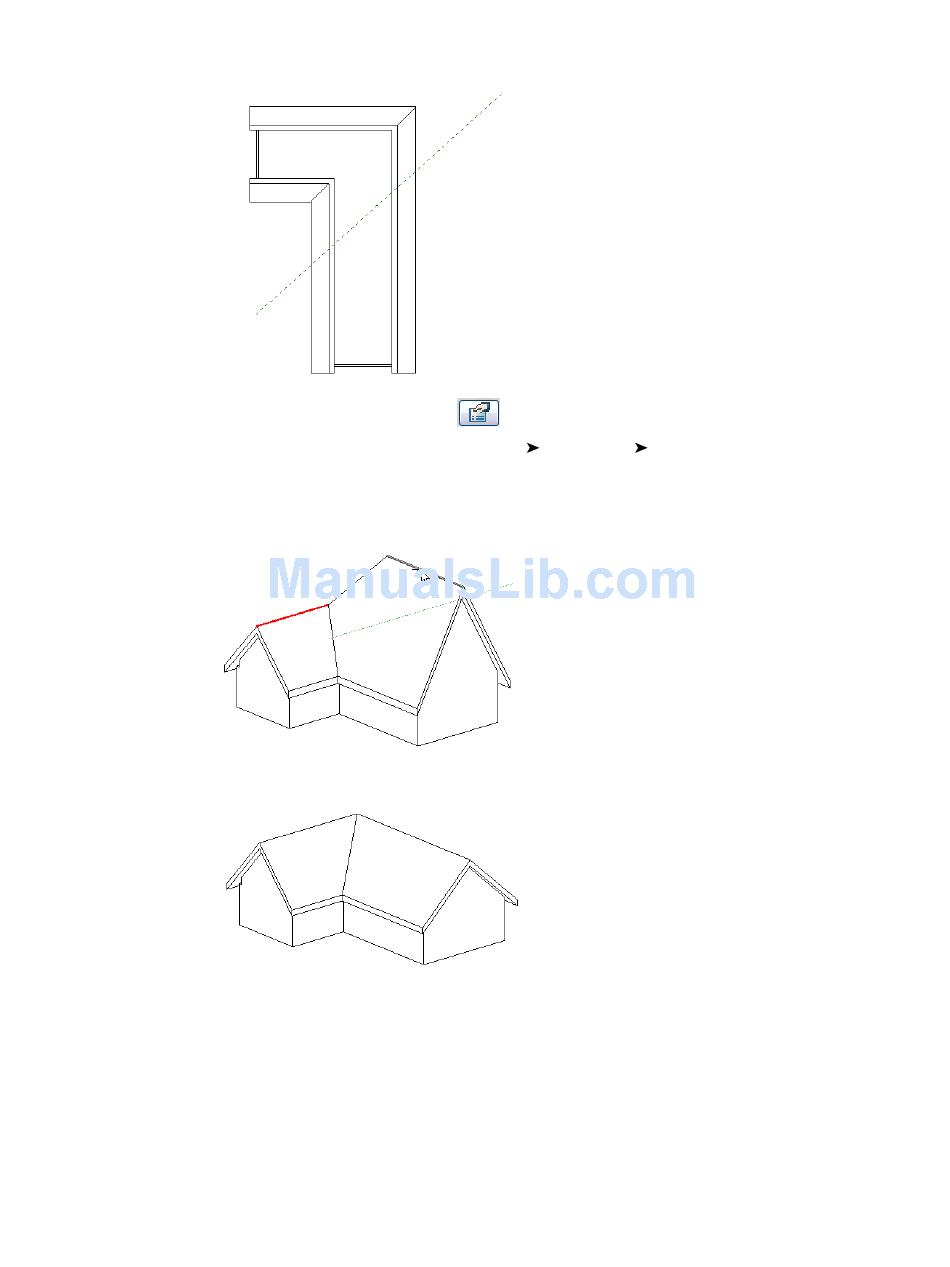

Reference plane in plan view
Unaligned roof ridges
Result of aligning roof ridges
, and enter a name for the reference plane.
Work Plane Set Work Plane.
Aligning Elements on page 306.
Roof Slope | 615
