5 Repeat steps 1 through 4 for any slab edge that requires a cantilever.
6 Click
NOTE The cantilever offset is applied in relation to the direction that the slab edge was created. This is applicable
to line sketching, Pick Supports, or Pick Walls slab creation. In instances where the cantilever appears to be inside
the slab: enter sketch mode, select the edge, and adjust the cantilever values to negative numbers.

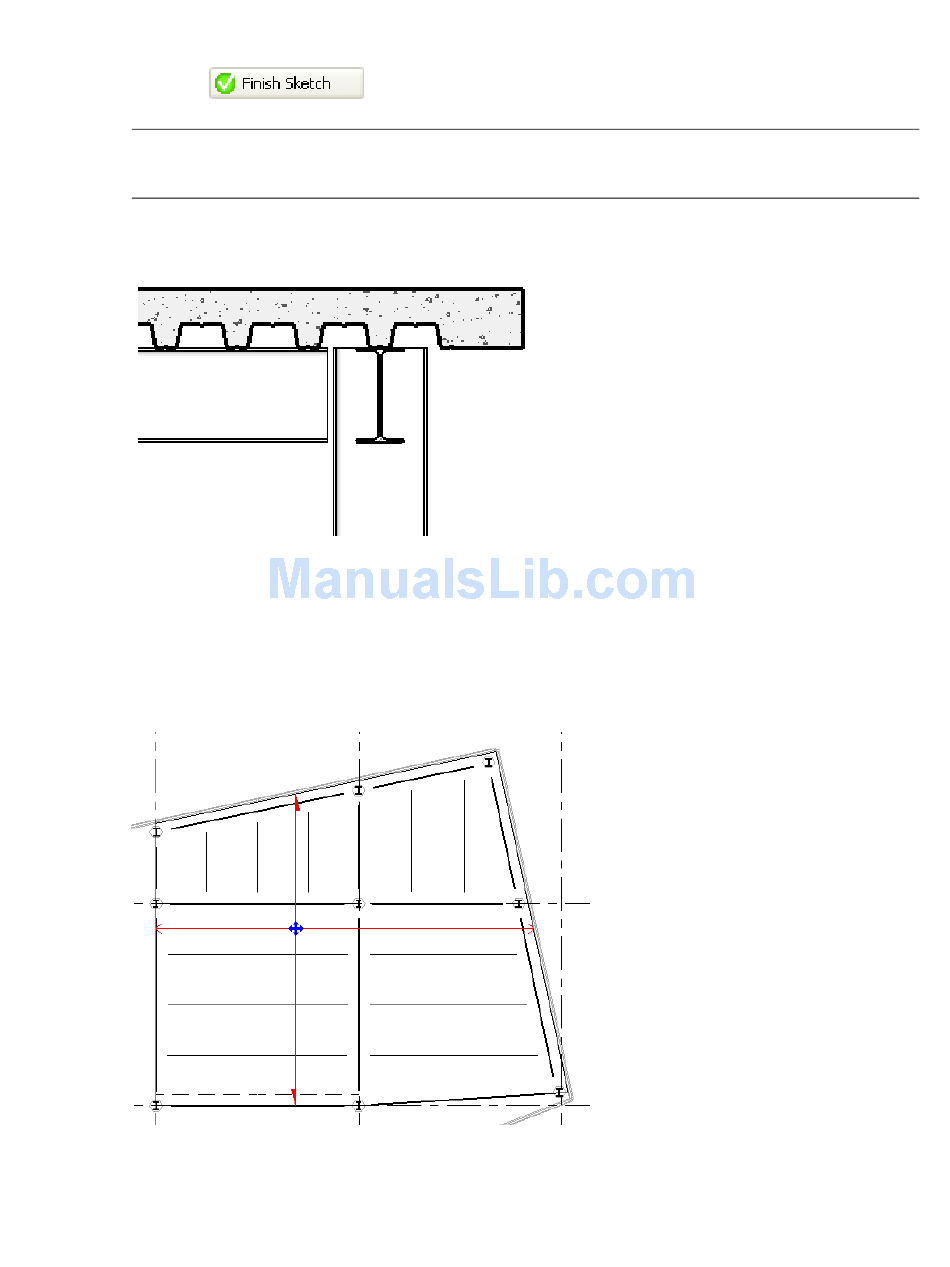

The following section view shows a concrete slab with a metal deck. The cantilevered concrete edge extends
beyond the supporting beam.

Span Direction

When you place a slab, a span direction component is placed in plan view along with the slab. The span
direction component is used to change the orientation of the steel deck in the plan. Deck span direction is
designated by the direction of the filled half-arrows.
Direction of span
1 Select the span direction component.
.
Span Direction | 869
