1 Place a door or window.
2 Click Modify, select the element, and click
3 In the Element Properties dialog, enter a value for Mark.
4 Click OK.
5 Place more instances of the element as desired.
All subsequent instances are numbered sequentially.
NOTE All doors and windows number sequentially regardless of type. For example, you place a French door and
then a single-flush door into a plan view. The French door is number 1; the single-flush door is number 2.

Symbols

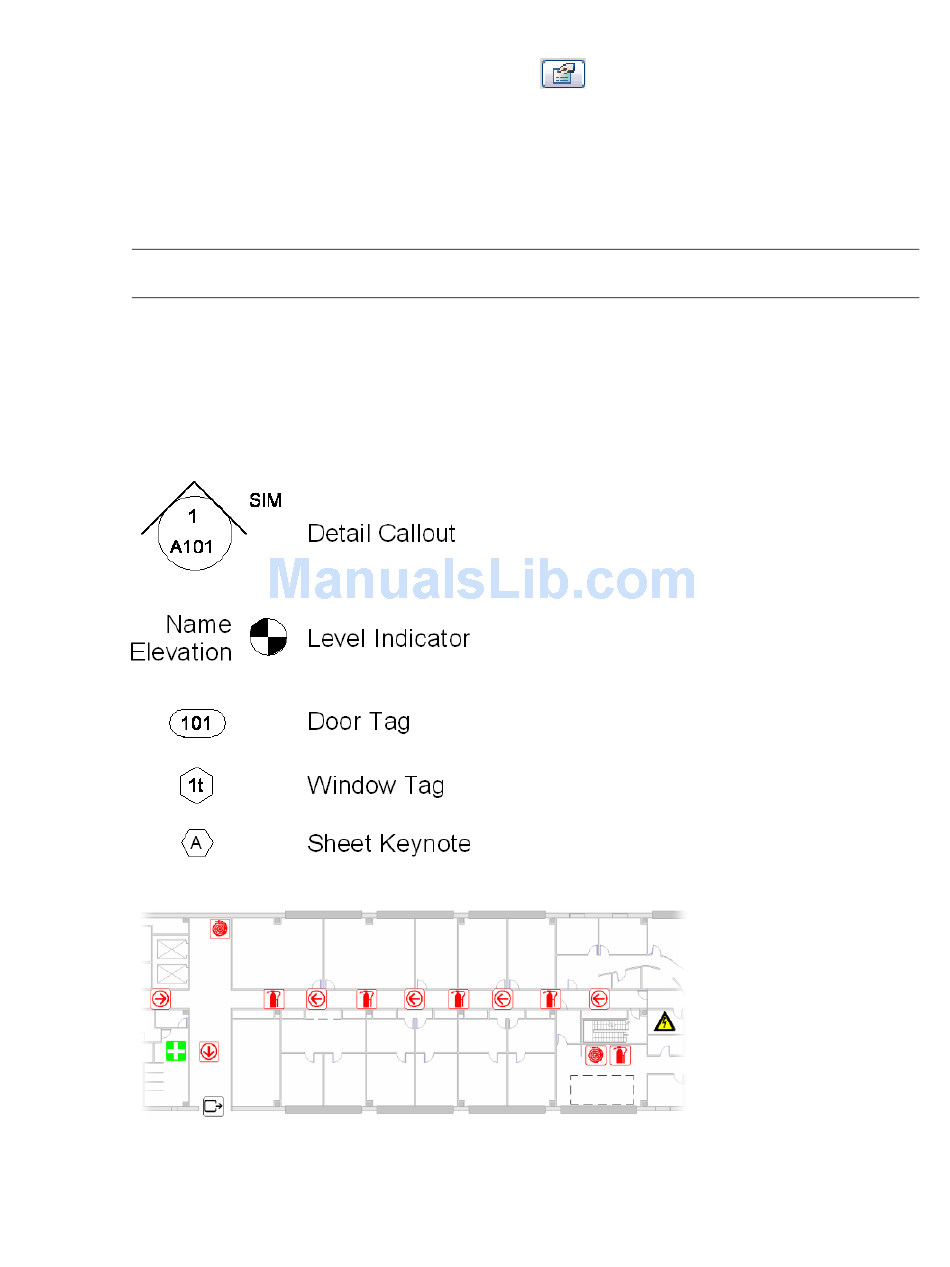

A symbol is a graphic representation of an annotation element or other object. Symbols are sometimes
referred to as tags. For example, the following symbol legend identifies the annotation symbols that are used
in a set of construction documents. Revit Architecture also uses symbols for moment frames, cantilever
connections, and other elements.
Use the Symbol command to place 2D annotation drawing symbols into the project.
Alternatively, you can right-click the element, and click Properties.
.
