2 On the Structural tab of the Design Bar, click Slab.

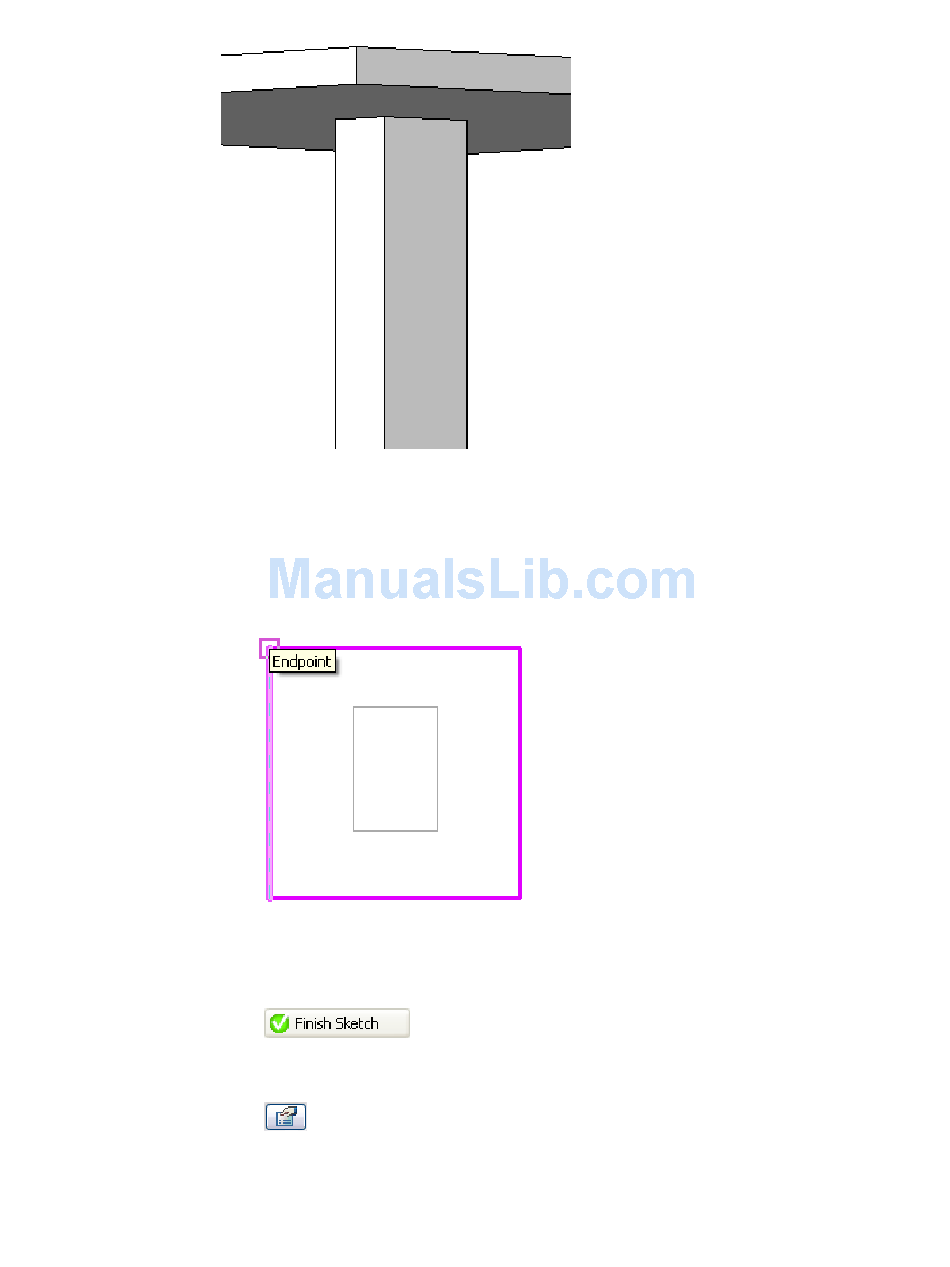

3 On the Sketch tab of the Design Bar, click Lines, and use the sketching tools to complete a sketch
of the drop panel (see Sketching
condition.
4 Click
5 View the drop panel in an elevation or cross section view.
6 Select the new drop panel.
7 Click . Adjust the Constraint parameters of the drop panel so that it is at the correct
elevation in your model.
on page 251). The sketch must form a closed loop or boundary
.
Drop Panels | 873
