Revision Schedules on Sheets

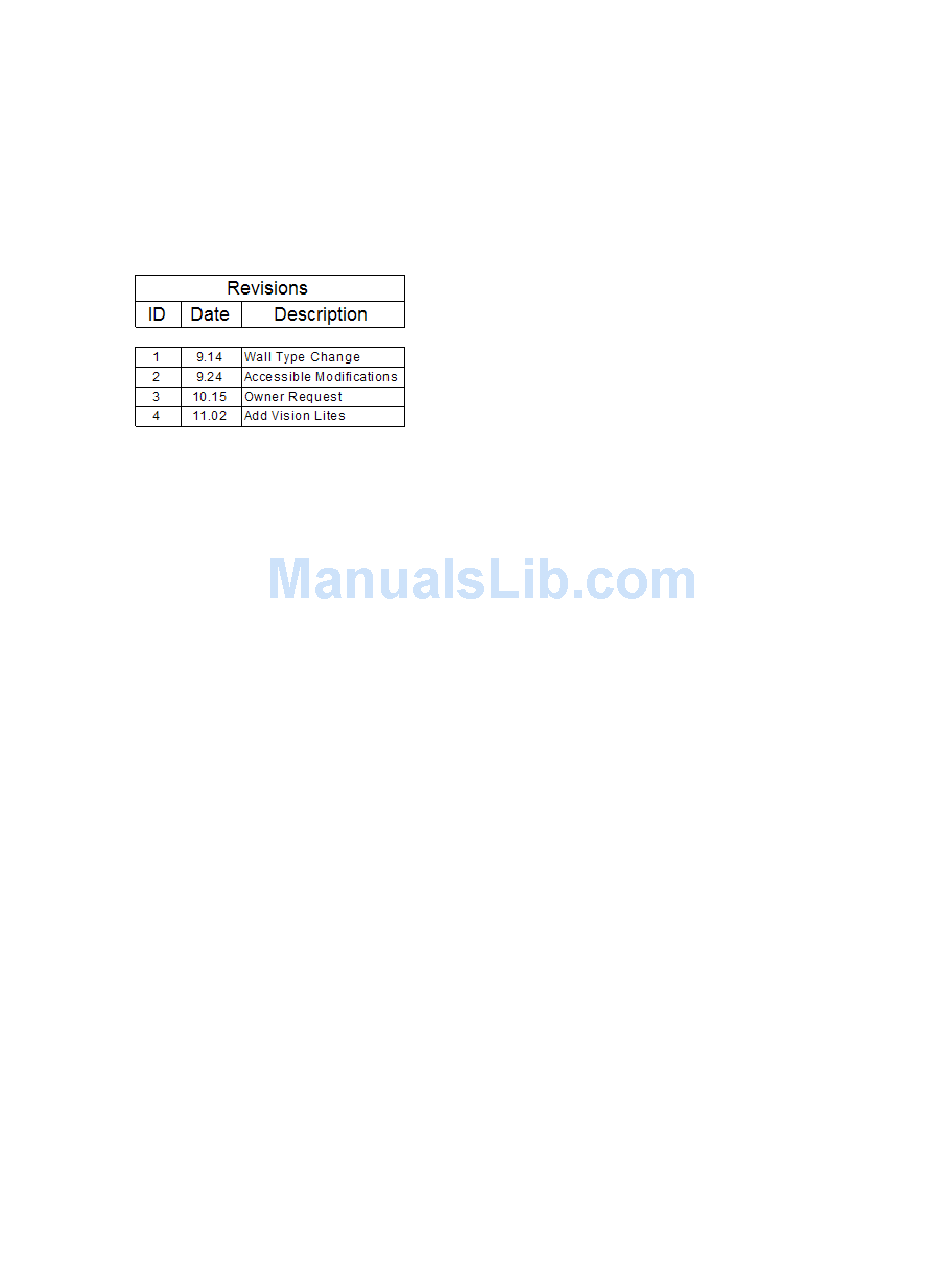

Most title blocks for sheets include a revision schedule. When you place a view on a sheet and the view
includes revision clouds, the revision schedule automatically displays information about those revisions. If
desired, you can specify that other revisions (not represented by revision clouds in the view) are to display
in the revision schedule, as well.
To display a revision schedule on a sheet, use a title block that includes a revision schedule. When designing
the revision schedule, you can specify its format, orientation on the page, information that it displays, and
sort order. You control these attributes of the revision schedule by modifying the title block family. See
Revision Schedules on Title Blocks

Specifying the Revisions to Include in a Revision Schedule

By default, the revision schedule on a sheet lists the revisions relating to revision clouds in the views of the
sheet. Use the following procedure to list more revisions on the revision schedule.
This procedure assumes that you have created a project with views and sheets that include revision schedules,
entered revision information, added revision clouds to views, and tagged the clouds.
To specify the revisions to include in a revision schedule
1 Open a sheet.
2 Zoom in on the revision schedule in the title block for the sheet.
3 Right-click in the drawing area, and click View Properties.
4 In the Element Properties dialog for the sheet, for Revisions on Sheet, click Edit.
1018 | Chapter 15 Preparing Construction Documents
on page 988.
The Revisions on Sheet dialog lists all revisions entered in the Sheet Issues/Revisions dialog.
Revisions assigned to clouds in views on the sheet are already selected, and they are read only.
