Drafting Patterns
Drafting patterns represent materials in symbolic form; for example, sand is represented by a stipple pattern.
The density of drafting patterns is fixed with respect to the drawing sheet.
Differences Between Model Patterns and Drafting Patterns

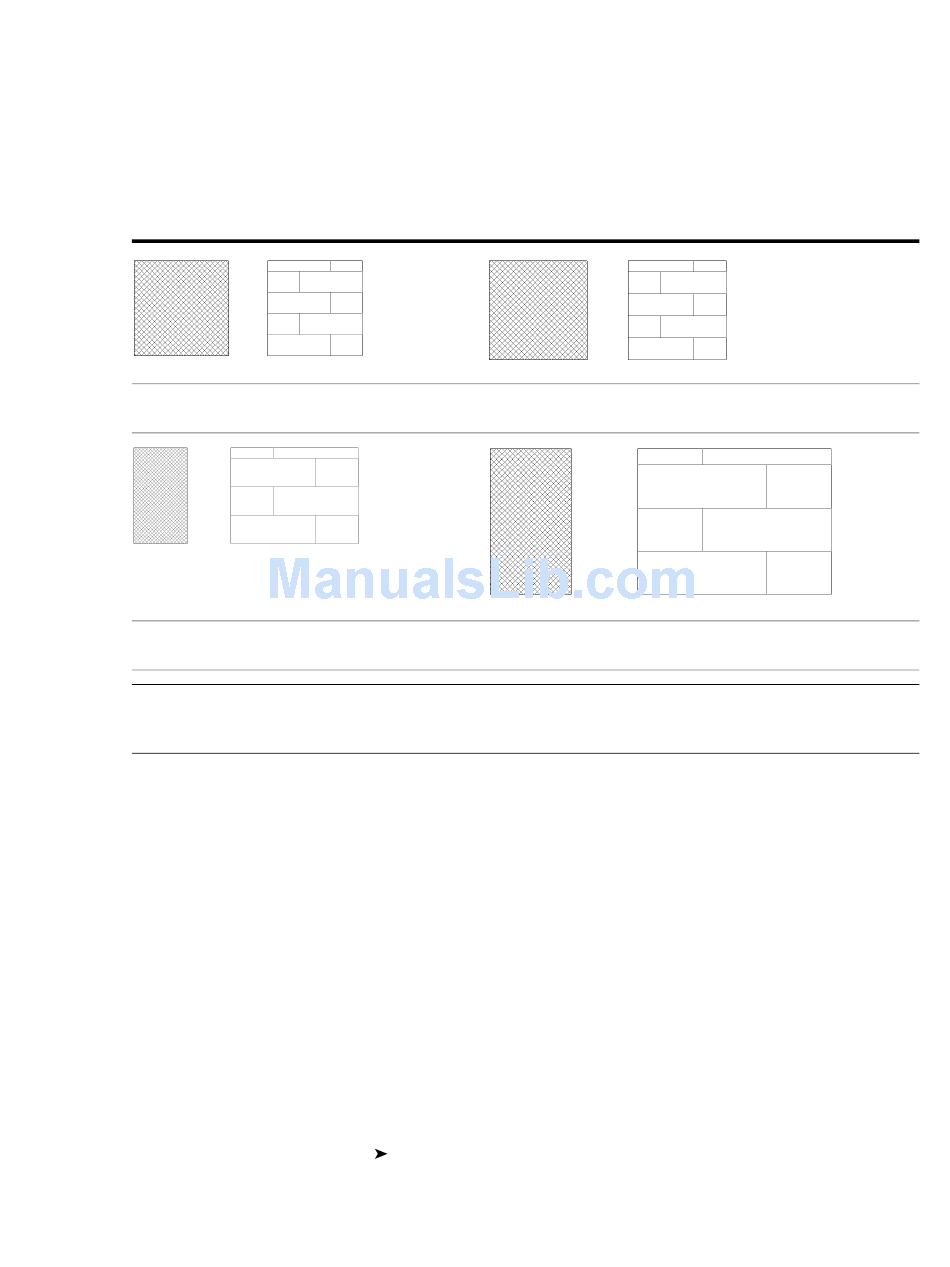

The following illustrations show the differences between model and drafting patterns when the view scale
changes. Model patterns remain a fixed size relative to the model, and drafting patterns remain a fixed size
relative to the sheet.
Drafting Pattern Scale = 1:4
Drafting Pattern Scale = 1:2
NOTE If you zoom a view, both drafting and model patterns appear larger or smaller. As you zoom out, the
pattern becomes more dense. At a certain point, the pattern displays as a solid fill. This is known as pattern
overscaling. See
You can place model and drafting patterns on planar and cylindrical surfaces and on families. You can also
place drafting patterns on cut component surfaces in plan or section views.
Revit Architecture includes several fill patterns and stores them in the default project template file.
Alternatively, you can create your own or edit an existing fill pattern to meet your needs.
A fill pattern is stored in the file in which it was created. To save the pattern to a template file, open the
template file and create the pattern there.
You can transfer fill patterns between projects using the Transfer Project Standards command. See
Project Standards

Creating a Simple Fill Pattern

A simple fill pattern consists of a series of parallel or orthogonal lines; examples include Diagonal Crosshatch
or Vertical Siding.
To create a fill pattern using parallel lines:
1 Click Settings menu
450 | Chapter 9 Customizing Project Settings
Zooming Project Views on page 193.
on page 438.
Fill Patterns.
Model Pattern Scale = 1:4
Model Pattern Scale = 1:2
Transferring
