2 Click View menu
3 In the New Schedule dialog, do the following:
4 On the Fields tab of the Schedule Properties dialog, do the following:
5 In the schedule, assign values to the Usage and Comments columns for each mass floor.
6 Open view properties for the schedule. (Right-click in the drawing area for the schedule, and
7 For Sorting/Grouping, click Edit.
534 | Chapter 10 Conceptual Design with Massing Studies
New
Schedule/Quantities.
a For Category, click Mass Floor.
b For Name, specify the schedule name.
c Select Schedule building components.
d Click OK.
a For Scheduled fields (in order), add the following fields:
Usage
Comments
Level
Mass: Type
Exterior Surface Area
b Click Calculated Value.
c In the Calculated Value dialog, for Name, enter Exterior Surface Area %.
d Select Percentage.
e For Of, select Exterior Surface Area.
f For By, select Grand total.
g Click OK twice.
Use Comments to indicate the exterior building material. Use consistent values so that you can
use this field for sorting.

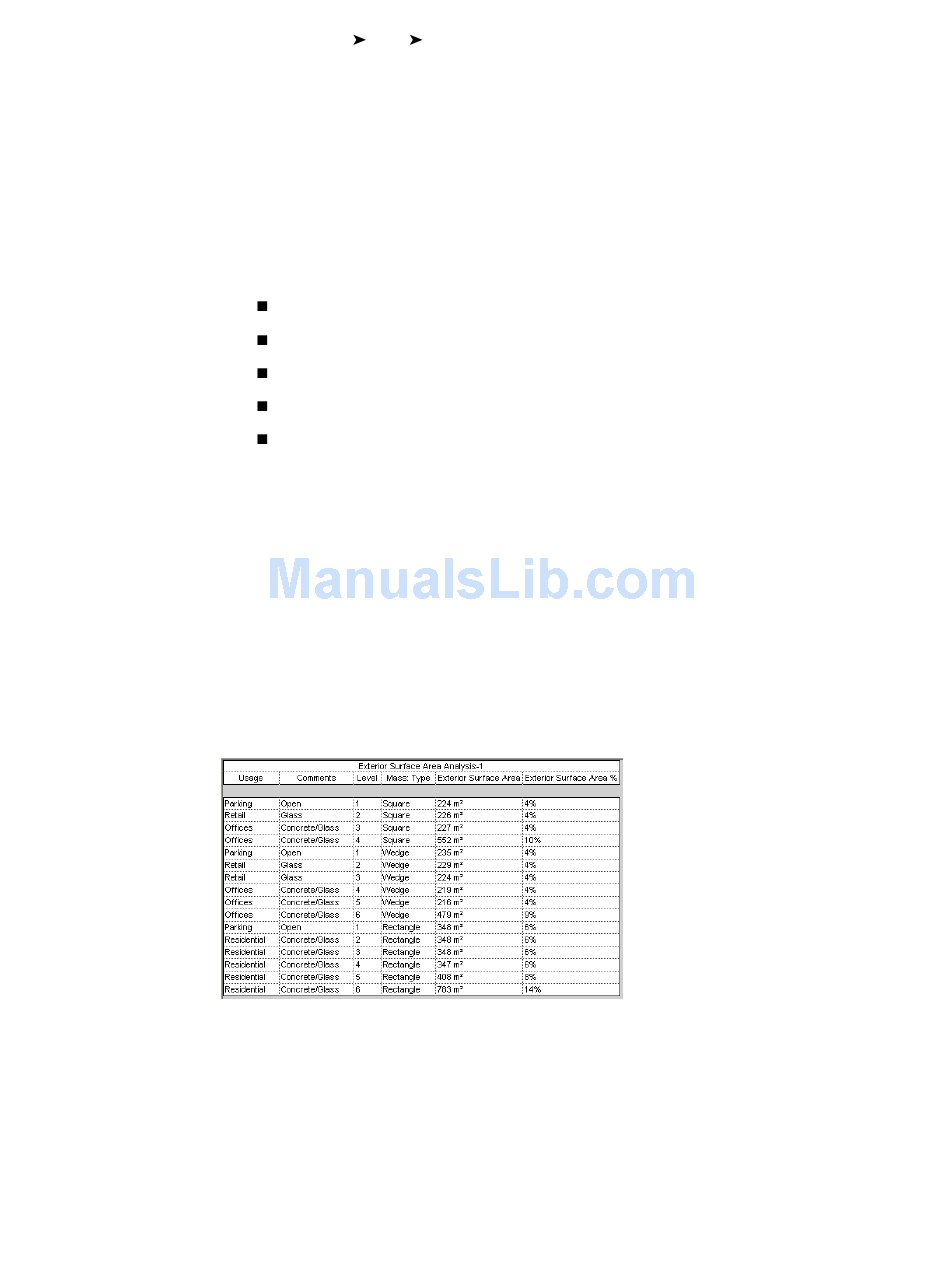

Next, sort and subtotal the schedule by exterior material (using the Comments field), as follows.
click View Properties.)
Schedule/Quantities, or on the View tab of the Design Bar, click
