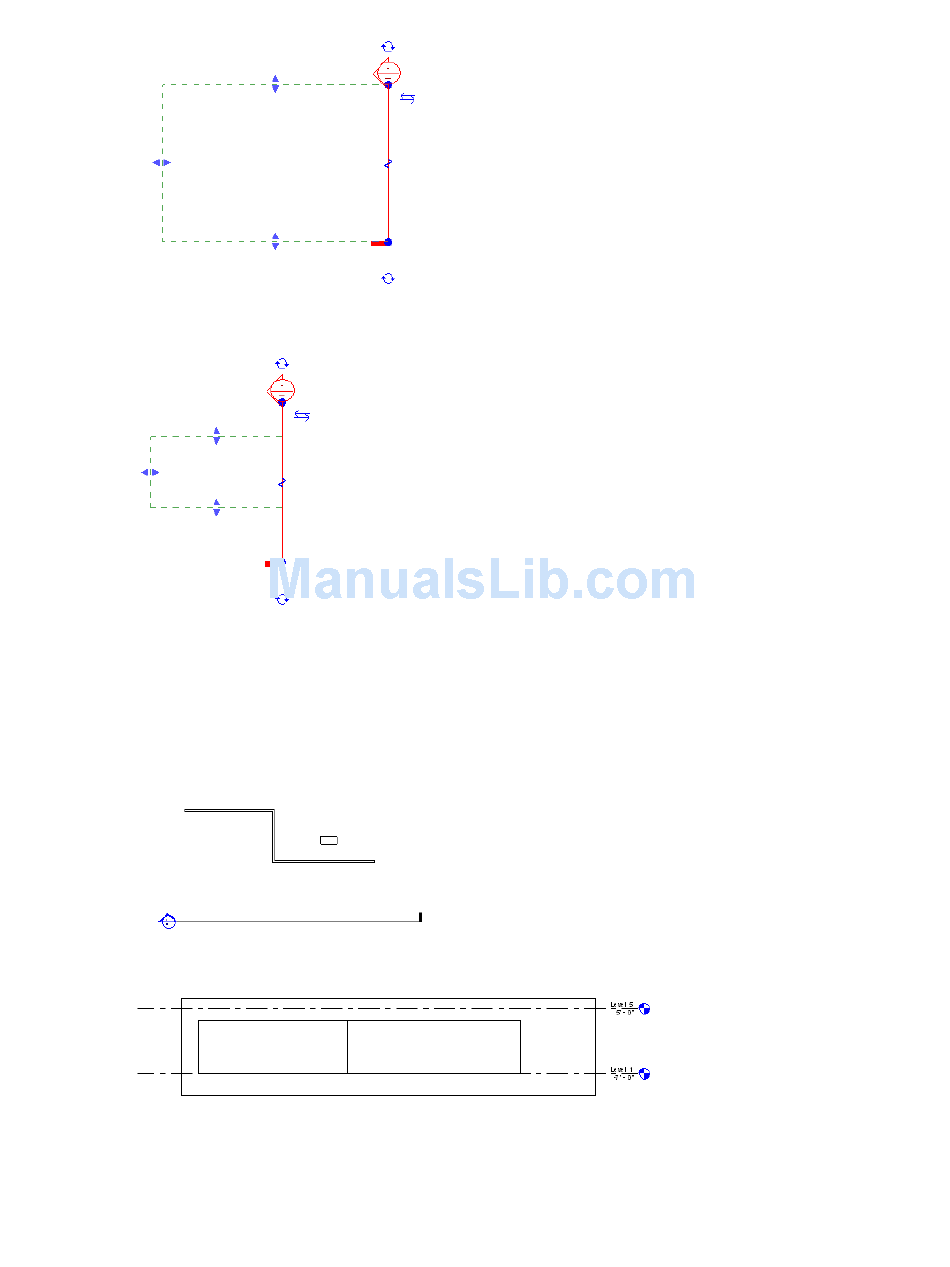

Drag the controls on the crop region to resize the width and the depth of the section view, as necessary.
The following image shows the same section as above, but with a resized crop region.

Segmented Section View

You can split sections into segments that are orthogonal to the view direction. This allows you to vary a
section view to show disparate parts of the model without having to create a different section.
In the following figure, a typical section is drawn on the model.
The section produces the following view.
Modify the section as shown and the resulting section view changes.
94 | Chapter 4 Project Views
