9 To exit the Floor by Face command, on the Design Bar, click Modify.
Floors created from floor faces do not automatically update if you change the mass face. To update the floor,
use the Remake command. See
If you edit the sketch of a floor created from a floor face, and then remake the floor, you lose all edits to the
floor sketch.

Creating Curtain Systems from Mass Instances

You can create curtain systems on any mass faces or generic model faces using the Curtain System by Face
command. Curtain systems do not have editable sketches. Use curtain walls if you require an editable sketch
on a vertical mass face. See
You can also use the Curtain System by Lines command. See
717.
Creating Curtain Systems Using the Curtain System by Face
Command
NOTE You cannot edit the profile of a curtain system. If you want to edit the profile, place a curtain wall.
1 On the Massing tab of the Design Bar, click Curtain System by Face.
2 In the Type Selector, select a curtain system type.
548 | Chapter 10 Conceptual Design with Massing Studies

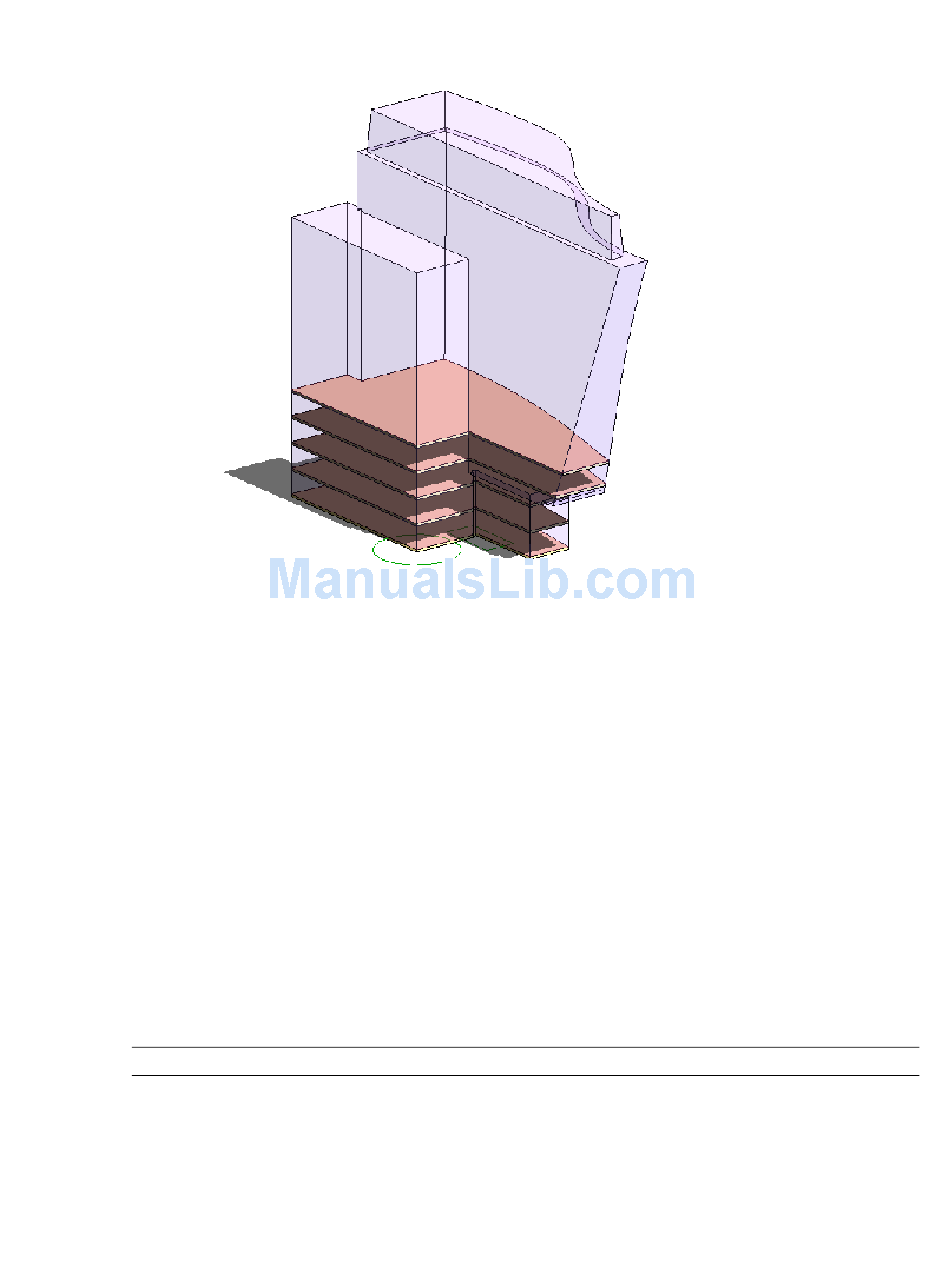

Created floors
Remaking Face-Based Host Shapes
Curtain Walls, Curtain Grids, and Mullions
on page 554.
on page 700.
Creating a Curtain System by Lines on page
