3 On the Design Bar, click Finish Roof or Finish Sketch.

Resizing a Roof

You can resize roofs that were created by footprint or by face using shape handles in elevation or 3D views.
To resize a footprint roof using shape handles
1 In an elevation or 3D view, move your cursor over the roof and press TAB to highlight the shape
2 Click to select the shape handle, then drag it as desired.

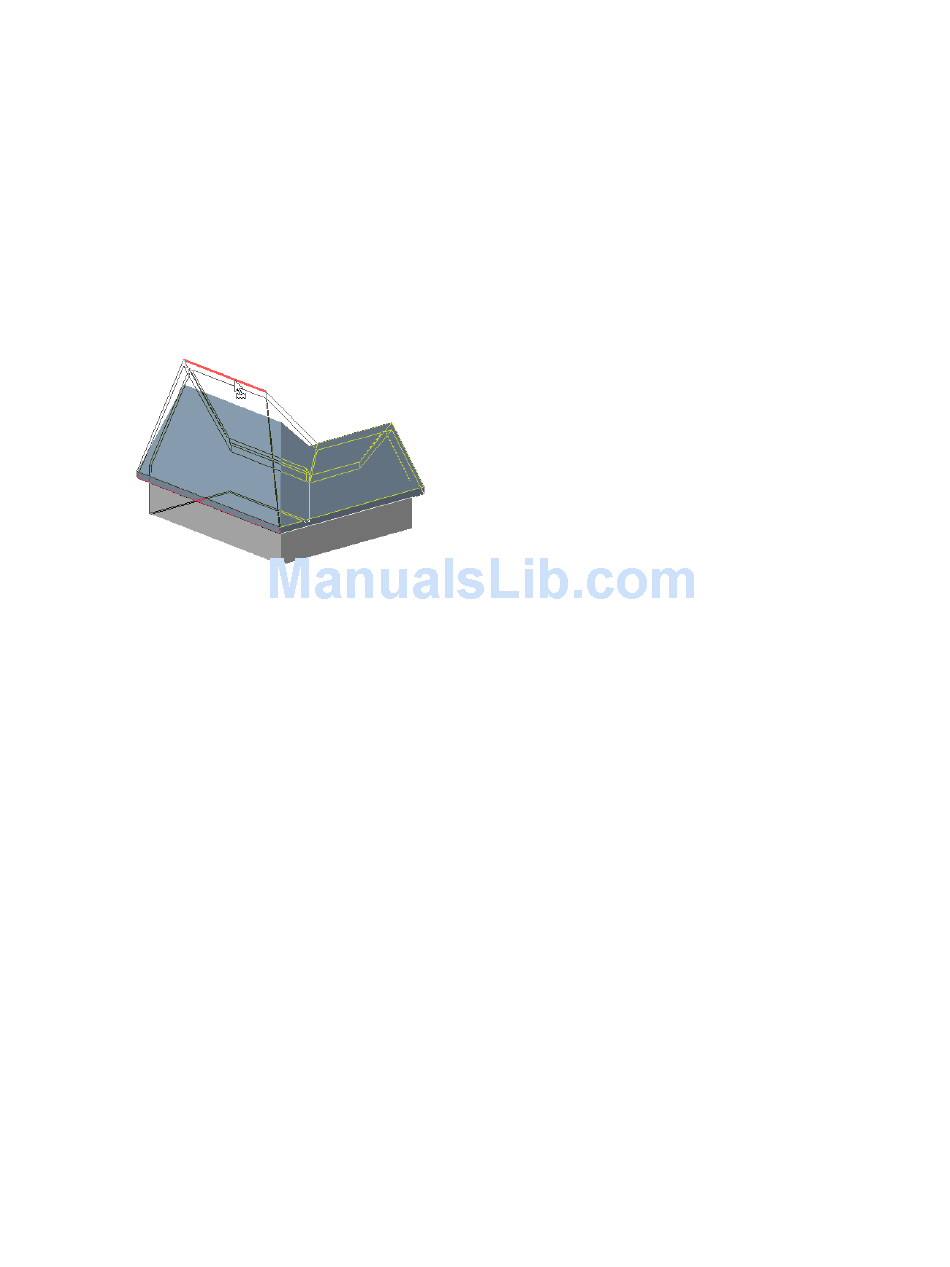

Resizing a roof with shape handle

Aligning Roof Ridges

You can align roof ridges in 3D and elevation views. To align roof ridges in an elevation view, use the Align
tool. See Aligning Elements
To align in a 3D view, you first must set a work plane in the view that is not perpendicular to the ridges of
the roof.
To align roof ridges in an elevation view
1 In a plan view, sketch a reference plane that is not perpendicular to the roof ridges. See
614 | Chapter 11 Working with Architectural Components
handle.
Watch the status bar, which will indicate when you have the shape handle highlighted.
on page 306.
Planes on page 1046.
Reference
