Coarse-Scale Cut Patterns

If you join a wall and a column, and the wall has a coarse-scale fill pattern defined, the joined column
assumes that pattern. See
and section views. The section view plane must cut through the joined face of the 2 elements.

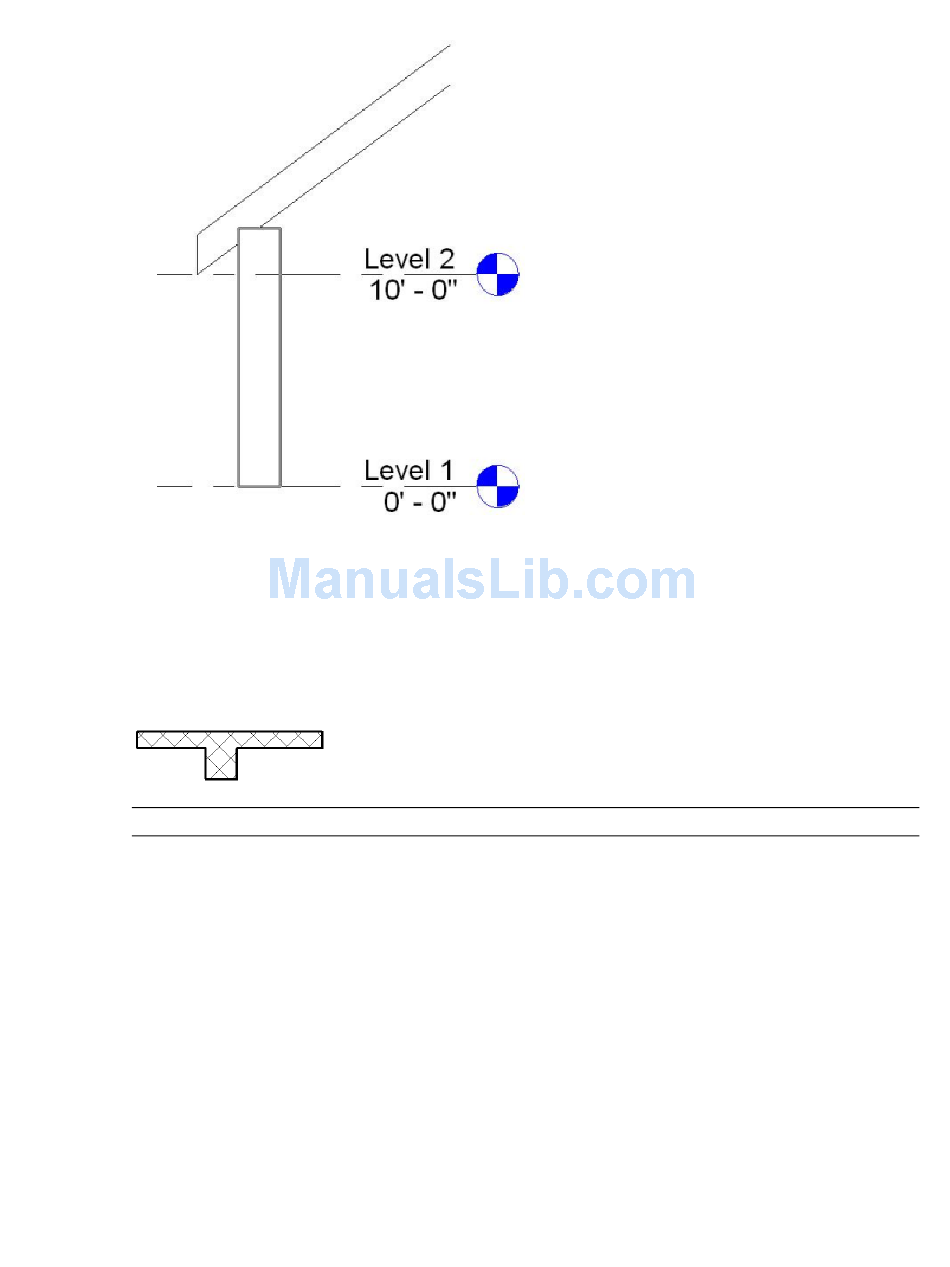

Wall and column joined (column assumes the fill pattern of the wall)
NOTE Structural columns do not assume the walls fill pattern, even when joined.

Modifying Architectural Columns

Changing Column Types

When you activate the Column command to place columns, you can select different types of columns in
the Type Selector.

Moving a Column

You can move the column by selecting the column and dragging it to the new location.
Curtain Wall Properties on page 720. This behavior is evident in coarse-scale plan
Coarse-Scale Cut Patterns | 697
