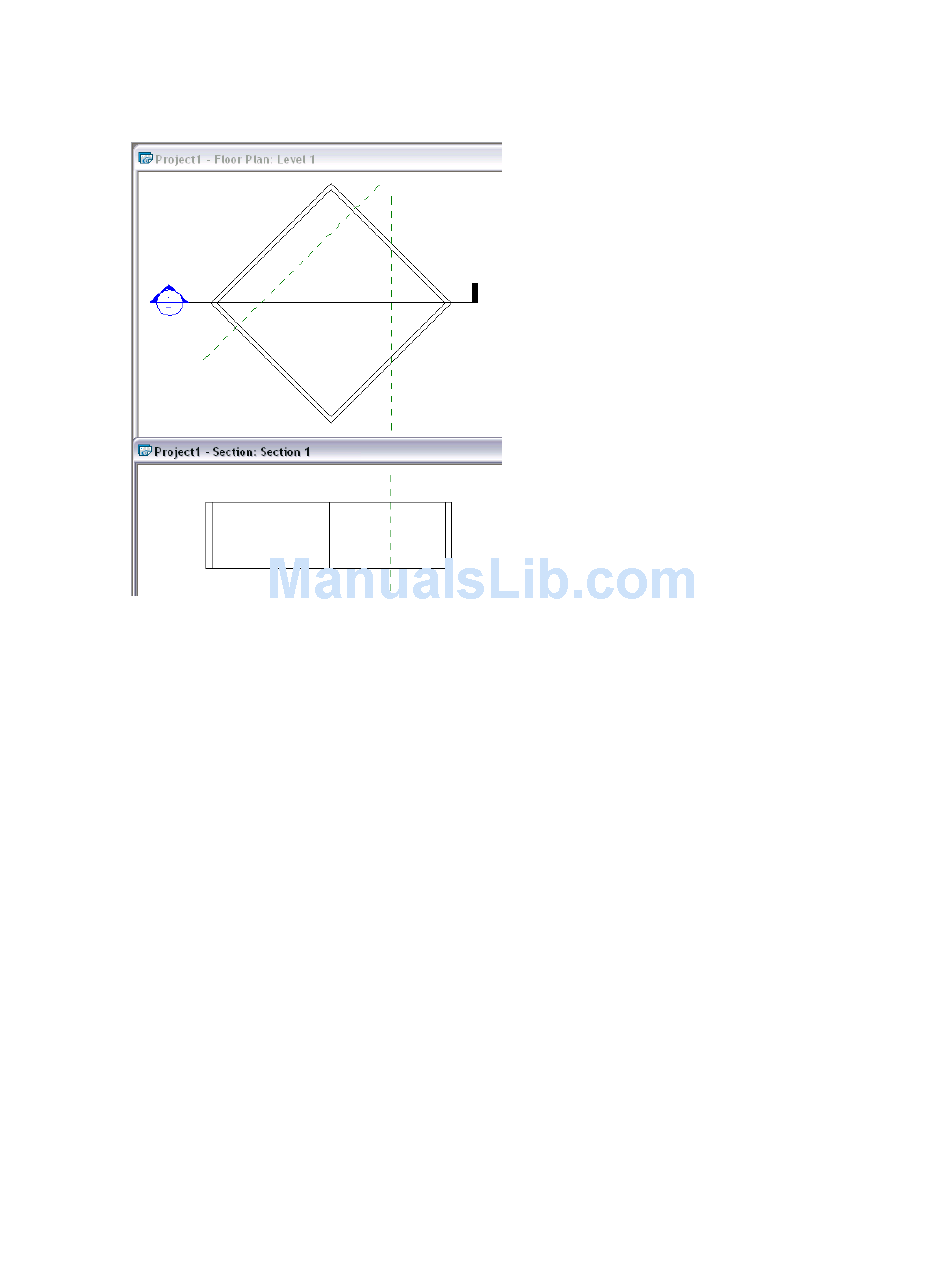

For example, the following floor plan shows 2 reference planes, indicated with dashed green lines. The
reference plane on the right intersects the section line at an angle. The reference plane on the left is
perpendicular to the section line. Because the angled reference plane is not perpendicular to the section
line, the plane does not appear in the resulting section view. However, the perpendicular reference plane
does appear in the section view.

Visibility of Arc Grids in Views

In plan views (such as floor plans and ceiling plans), you can define grid lines that are arcs rather than
straight lines. Arc grid lines will appear in section views where the center of the arc intersects and is
perpendicular to the section line.
For example, the following floor plan shows 2 arc grid lines. Grid Line 2 intersects the section line, but its
center is not perpendicular to the section line. As a result, Grid Line 2 does not display in the section view.
Grid Line 3 intersects the section line in the floor plan, and its center intersects the section line
perpendicularly. Therefore, Grid Line 3 displays in the section view, indicating the center of the arc.
