NOTE If you do not see a blue dot indicating the segment boundary, move the 3D extent for the
grid line outward until the dot is visible.
The default length of the end segments of a grid line is defined by the End Segments Length
parameter of the grid type.
2 Drag the blue dot along the grid line to the desired position.
The end segment adjusts its length accordingly.

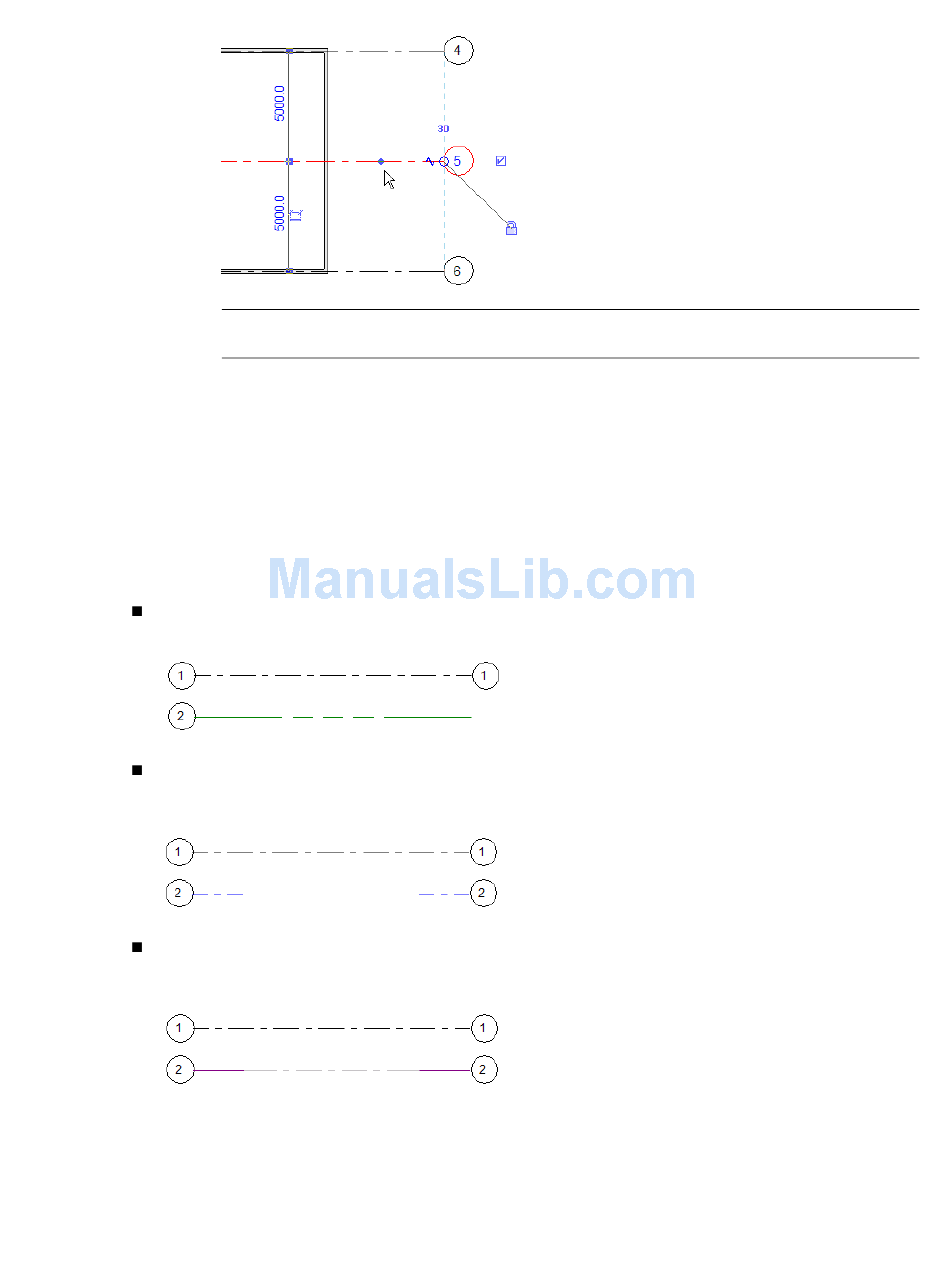

Customizing Grid Lines

You can customize grid types in the following ways:
Change the line color, weight, and pattern of the entire grid line. (Modify the Bubble grid type, or create
your own. See Changing a Continuous Grid Line
Hide the center segment of the grid lines to create a gap, displaying only the end segments in views.
(Modify the Bubble Gap grid type, or create your own. See
page 1038.)
Display the center segment of the grid line using a different line color, weight, and pattern than the end
segments. (Modify the Bubble Custom Gap grid type, or create your own. See
a Center Segment on page 1039.)
To make these customizations, you modify a grid type. In views, all grid lines of that type reflect the changes.
on page 1038.)
Creating a Grid Line with a Center Gap on
Creating a Grid Line with
Modifying Grids | 1037
