4 In the dialog, select a category, such as generic annotations.
5 Set the Family Parameters, and click OK.
6 On the Design Bar, click Label.
7 In the Type Selector, select the label type.
8 On the Options Bar, select the vertical and horizontal justification.
9 In the drawing area, click to position the tag.
10 In the Select Parameter dialog, under Parameters, select the parameter you want in the label. If
11 Click OK.
12 To modify the placement of the label, select Modify, select the label, and drag it to the new
Specify sample text
13 Select the label, and, on the Options Bar, click the Properties button.
14 In the Element Properties dialog, under Other, enter a value for Sample Text, and click OK.
15 Sketch the shape of the tag symbol, such as a circle. Click Lines, and select a sketching command.
16 Save the annotation. See

Insulation

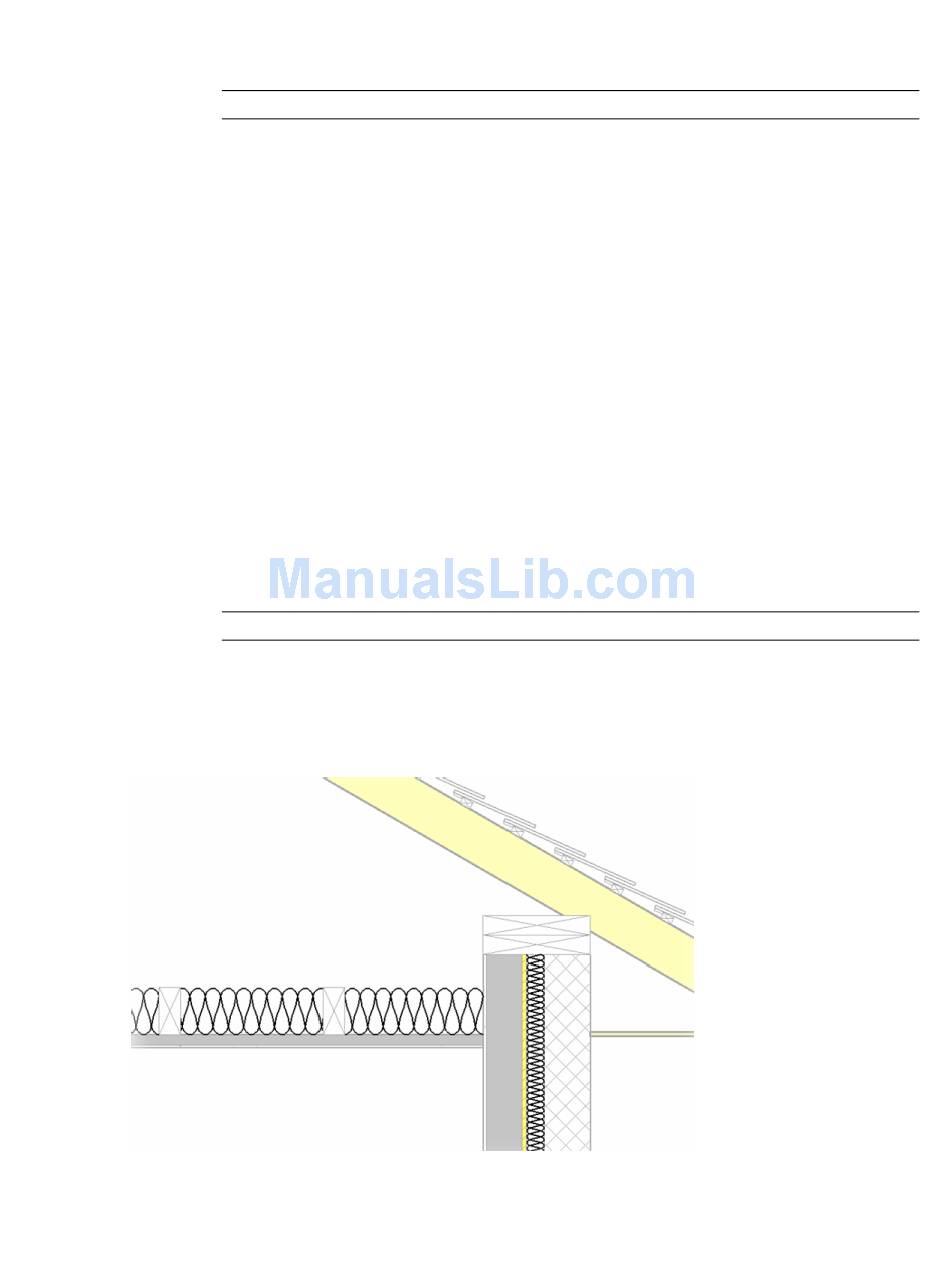

The Insulation command places a batt insulation graphic for detail views.
NOTE Parameter options vary depending on family category.
For example, in a generic model tag template, place the cursor at the intersection of the 2
reference planes.
necessary, you can add a new parameter.
If you select a numerical or dimension value, you can specify the formatting of the value.
location.
See Sketching on page 251.
NOTE Generic annotations have multiple leader options when loaded into a project.
Saving Revit Files on page 69.
Insulation | 1073
