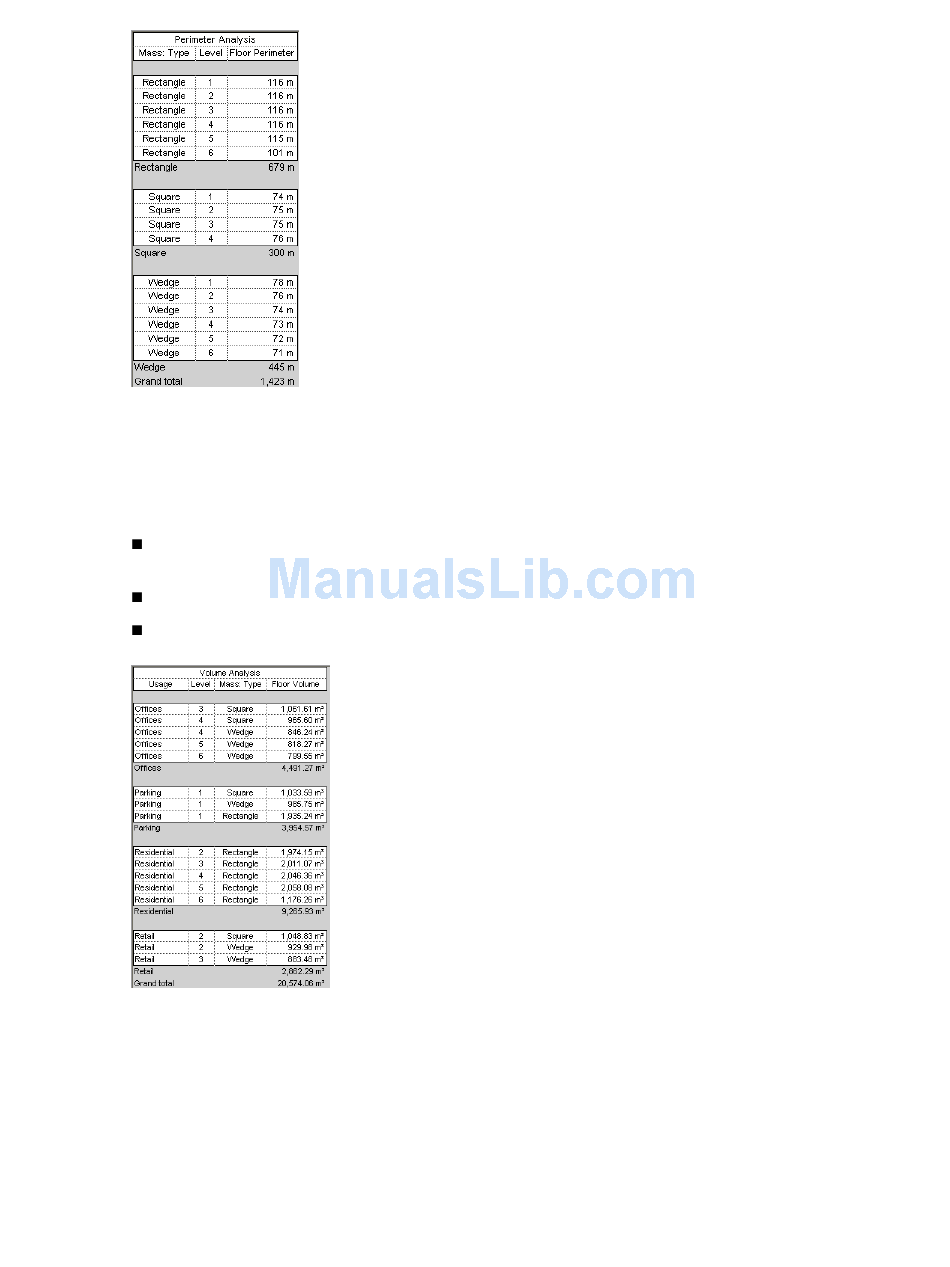

Volume Analysis Example

In a sample scenario, you have designed masses to explore a conceptual design for a building. (See
of Conceptual Design Analysis
Determine which floors of the building require air conditioning. (For example, parking levels are not air
conditioned.)
Calculate the volume of space to be air conditioned.
Determine the resulting HVAC load.
Creating a Volume Analysis Schedule
Use the following procedure to create a schedule for analyzing the volume of masses in a conceptual design,
based on the scenario described in
on the information that you want to show in the schedule.
538 | Chapter 10 Conceptual Design with Massing Studies
on page 529.) You want to do the following:
Volume Analysis Example on page 538. Specific steps may vary depending
Examples
