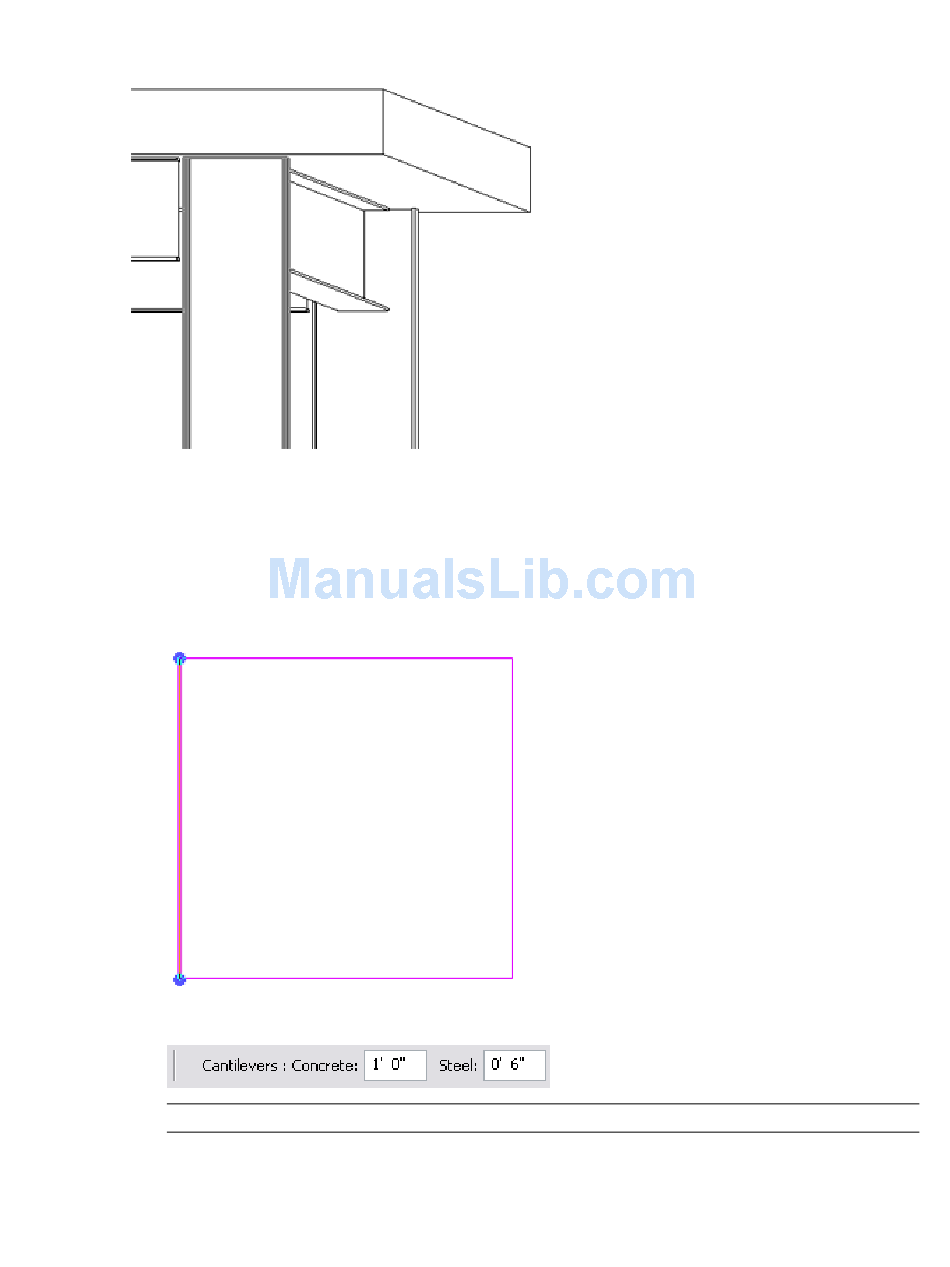

Applying Cantilevers to an Existing Slab
1 Select a slab in a plan view.
2 On the Options Bar, click Edit.
3 In sketch mode, select the slab edge that will receive the cantilever.
4 On the Options Bar, enter cantilever offset values for both of the concrete slab and metal deck.
NOTE The cantilever is applied only to the specified selected sketch line, not the entire slab.
868 | Chapter 12 Working with Structural Components
