You can change the way that the reference label displays in the callout tag, or add the referencing detail or
sheet numbers to the callout head. To do so, create a callout head family, and add labels that use these
parameters. See
Modifying Callout Properties
1 In the Project Browser, right-click the callout view, and click Properties.
2 In the Element Properties dialog, click in the Value text boxes to see the detail and sheet numbers.
3 Click OK.
Related topics
Detail View Instance Properties
View Properties
3D Views
You can create perspective and orthographic 3D views in Revit Architecture.
Perspective 3D Views

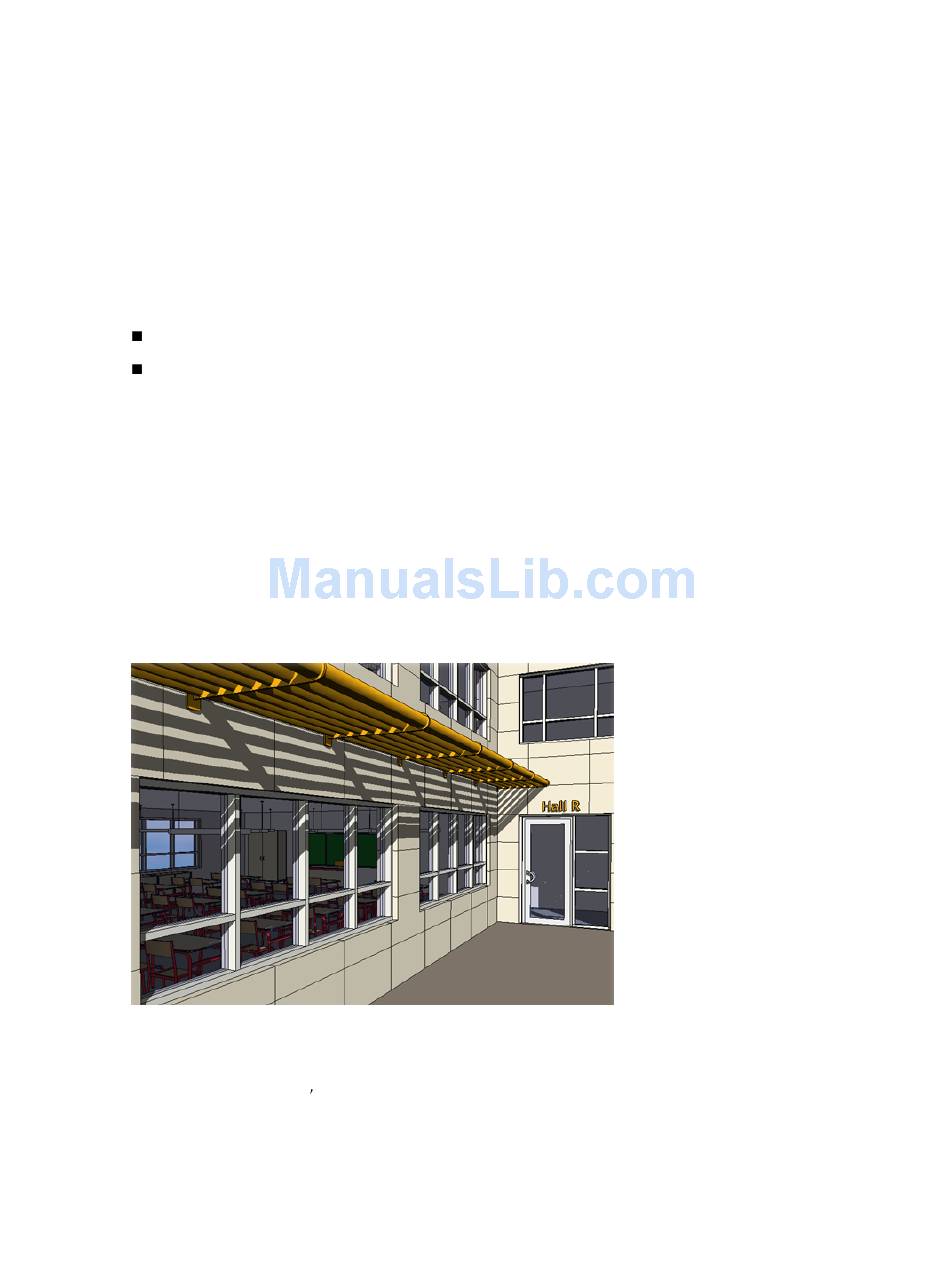

Perspective 3D views show the building model in a 3D view where components that are further away appear
smaller, and components that are closer appear larger.
You can select elements in a perspective view and modify their type and instance properties. When you
create or view a perspective 3D view, the View Control Bar indicates that the view is a perspective view.
Orthographic 3D Views
Orthographic 3D views show the building model in a 3D view where all components are the same size
regardless of the camera s distance.
Creating a Callout Head
You can also change the view name and scale, and manage crop regions.
on page 1077
on page 210
on page 104.
Modifying Callout Properties | 109
