5 Click OK twice.

Adjusting the Center Segment of a Grid Line

You can adjust the length of the gap or center segment in an individual grid line. For example, you may
want to adjust the gap so the grid line does not display through the middle of a model element. This feature
is available when the grid line uses a grid type for which the Center Segment parameter is Custom or Gap.
(See Customizing Grid Lines

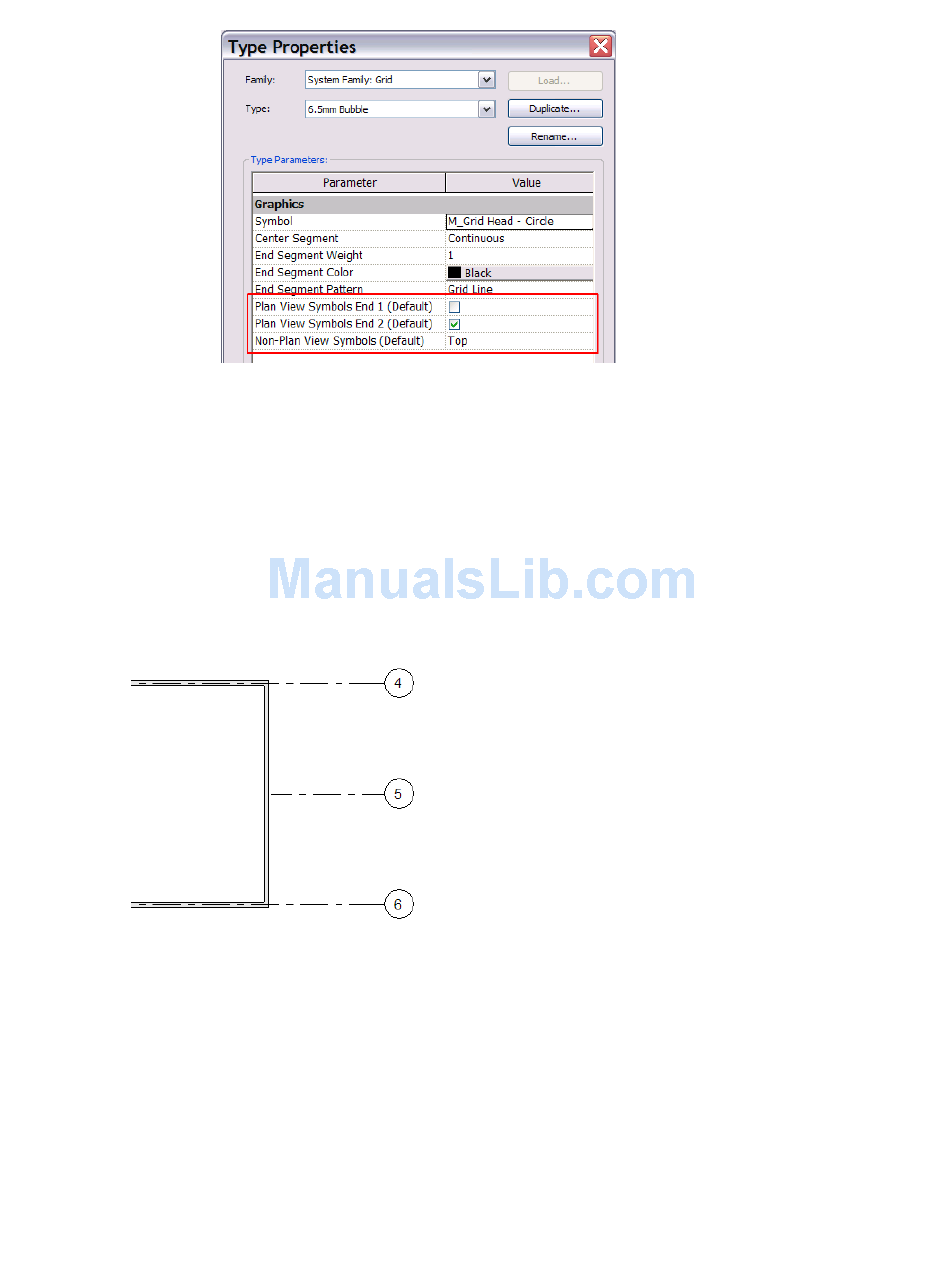

A grid line that has been adjusted to end at
the wall
To adjust the center segment of a grid line
1 Select the grid line in the view.
1036 | Chapter 16 Annotating and Detailing
Revit Architecture updates all grid lines of this type in all views.
on page 1037.)
Revit Architecture displays a blue dot on the grid line. You may need to zoom in to see it clearly.
