7 Create the fourth pattern descriptor, using the following values:
8 Create the fifth pattern descriptor, using the following values:
9 Create the sixth pattern descriptor, using the following values:
458 | Chapter 9 Customizing Project Settings

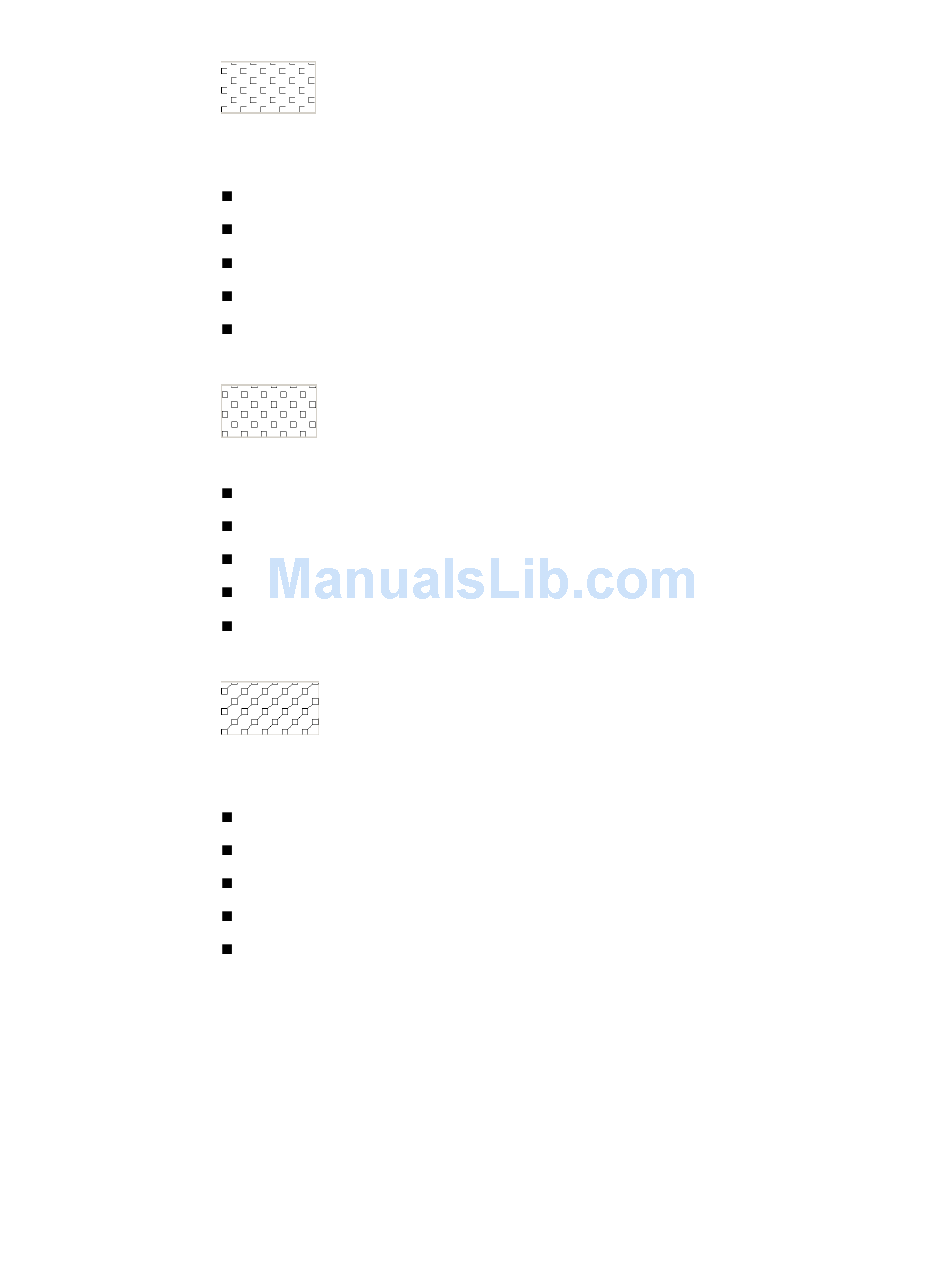

The pattern is as shown:
Because of the 90 angle, the lines are drawn vertically, beginning to create a square pattern.
Angle: 90
Origin: 3.3125, 0
Shift: 5.656, 5.656
Pen down: 3.3125
Pen up: -8
The pattern is as shown:
Angle: 45
Origin: 3.3125, 3.3125
Shift: 8, 8
Pen down: 3.3125
Pen up: -4.6875
The pattern now looks like this:
A 45 angle has a positive slope and results in a slanted line effect.
Angle: -45
Origin: 3.3125, 0
Shift: 8, 8
Pen down: 3.3125
Pen up: -4.6875
The completed pattern file is:
*Concrete Paver,
;%TYPE=MODEL
0, 0, 0, 5.656,
0, 0, 3.3125, 5.656,
90, 0, 0,
90, 3.3125, 0,
45, 3.3125, 3.3125,
-45, 3.3125, 0,
5.656, 3.3125,
5.656, 3.3125,
5.656, 5.656,
5.656, 5.656,
8, 8,
8, 8,
-8
-8
3.3125, -8
3.3125, -8
3.3125, -4.6875
3.3125, -4.6875
