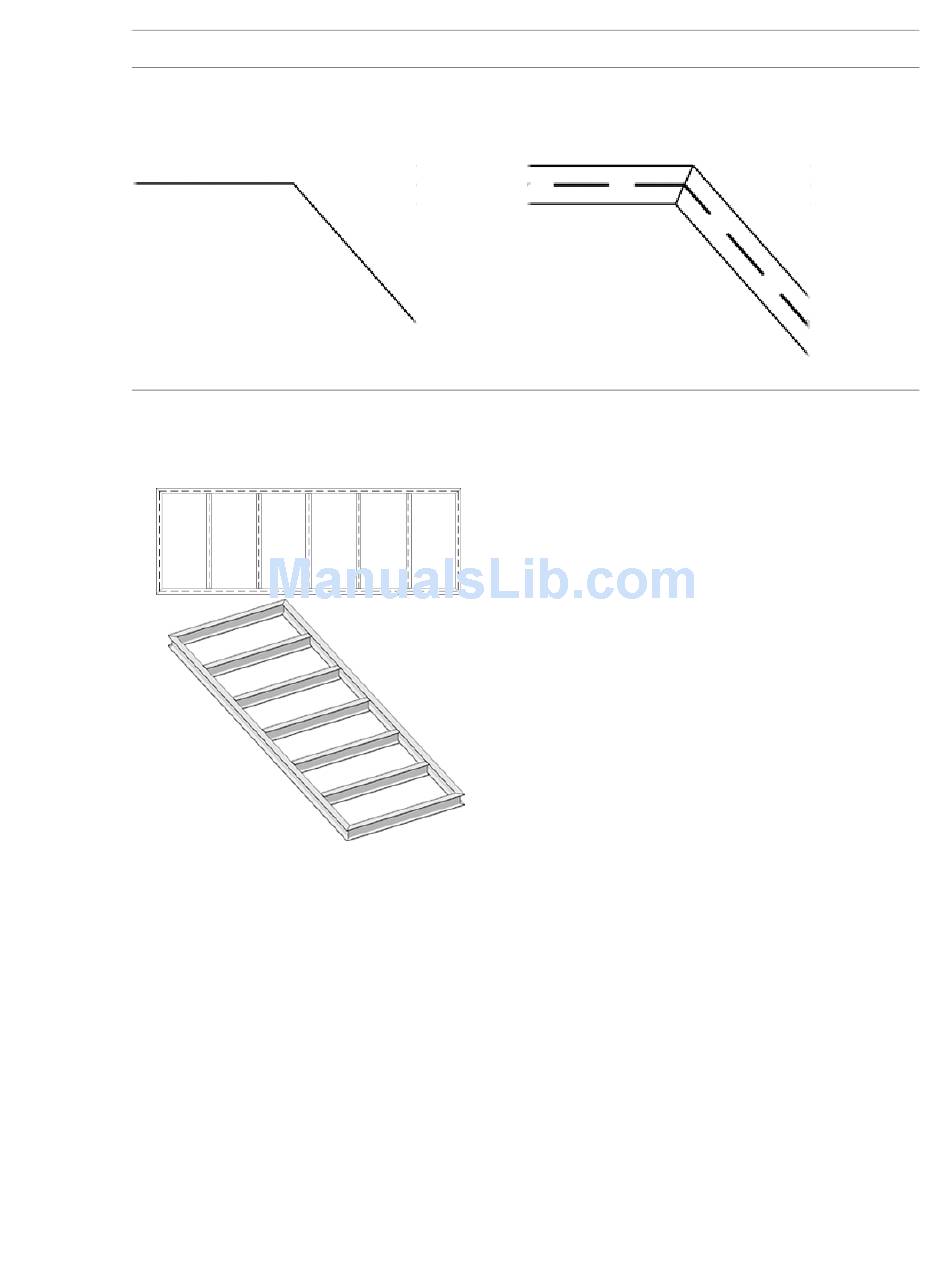

Coarse level of detail (symbolic)
Medium/Fine level of detail (physical geometry)
The two beams must be co-planar to create a miter join. They must also be of the same family type. Any
other beams that share the join will cutback accordingly.
Beams in a co-planar join share the same plane and have unadjusted cross-sectional rotation parameters.
Beams that share the same vertical plane must have the same cross-sectional rotation to have a miter join.
The vertical plane is a plane perpendicular to the work plane. A miter join will be created by default for
beams that are created within the same vertical plane. This is the case for trusses.
786 | Chapter 12 Working with Structural Components
