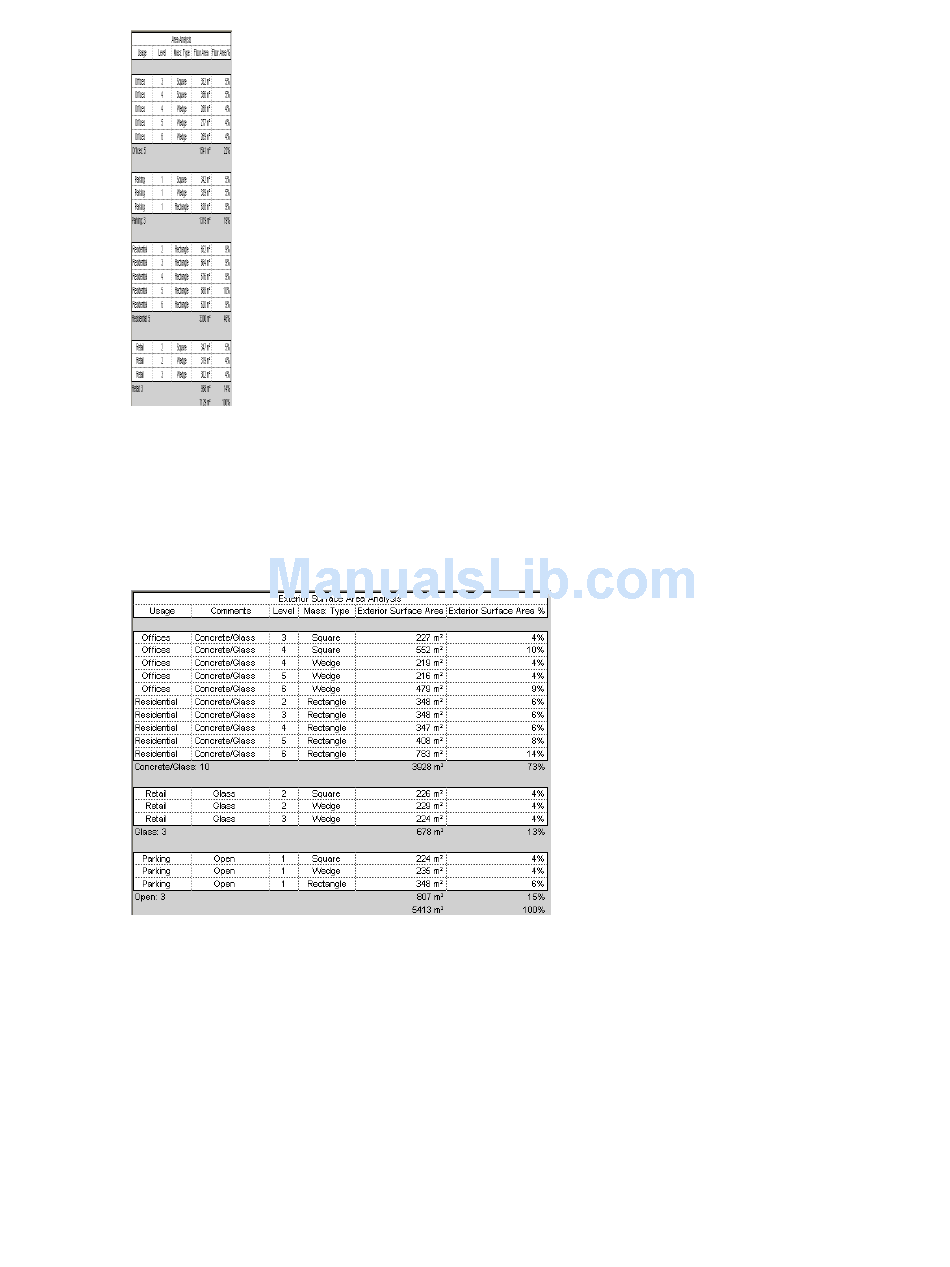

Analysis Example for Exterior Surface Area

In a sample scenario, you have designed masses to explore a conceptual design for a building. (See Examples
of Conceptual Design Analysis on page 529.) You want to determine exterior surface areas around the perimeter
of each floor. This information will allow you to estimate costs for the building exterior using various
materials.
Creating a Schedule to Analyze Exterior Surface Area
Use the following procedure to create a schedule for analyzing the exterior surface areas of masses in a
conceptual design, based on the scenario described in Analysis Example for Exterior Surface Area on page
533. Specific steps may vary depending on the information that you want to show in the schedule.
To create a schedule to analyze exterior surface area
1 Create mass floors.
See Creating Mass Floors on page 525.
Examples of Conceptual Design Analysis | 533
