Name
Mark
Phasing
Phase Created
Phase Demolished

Wall Reveals

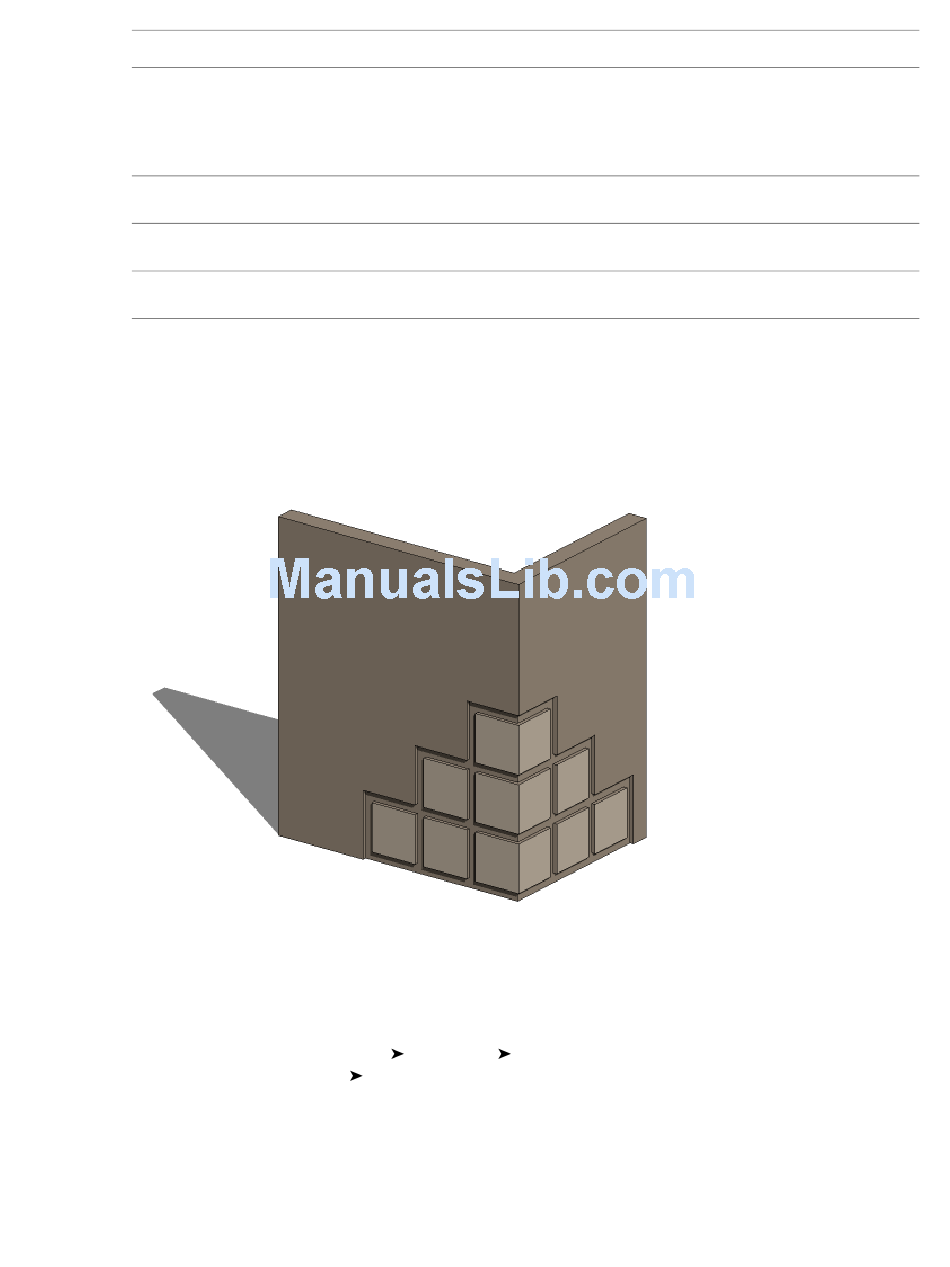

A wall reveal is a decorative cutout in a wall. You can add a reveal to a wall from a 3D or elevation view.
Reveals can be horizontal or vertical.

Adding a Wall Reveal

1 Go to a 3D or non-parallel elevation view.
2 Click Modelling menu
3 In the Type Selector, select the type of wall reveal.
4 On the Options Bar, select the orientation of the wall reveal: vertical or horizontal.
5 Place the cursor over the wall to highlight the wall reveal location. Click to place the reveal.
Description
A value to designate the particular wall sweep. This value must be unique for each
wall sweep in a project. Revit Architecture warns you if the number is already used
but allows you to continue using it. You can see the warning using the Review
Warnings command. See
The phase when the wall sweep was created.
The phase when the wall sweep was demolished.
click Host Sweep Reveal.
Reviewing Warning Messages
Host Sweep Wall Reveal, or on the Modelling tab of the Design Bar,
on page 1334.
Wall Reveals | 599
