Using the Pick Supports Tool

You can use the Pick Supports tool to pick beams to define split lines and create constant bearing lines for
the slab.
1 Select the slab, roof, or floor you want to modify.
2 On the Options Bar, click the
3 Select an existing beam.
A new split edge is created using the endpoint elevations from the picked reference. The elevations are moved
up from the bottom face to the top face of the slab or roof using the slab or roof thickness.

Using the Curved Edge Condition Tool

Slabs drawn with arc segments can be altered using slab shape editing tools. The Curved Edge Condition
tool is an additional tool specific to curved edges. It sets them to project a flat surface to the edge or a curved
surface that conforms to the arc edge of the slab.
1 Select the curved edge slab you want to modify.
2 On the Options Bar, click

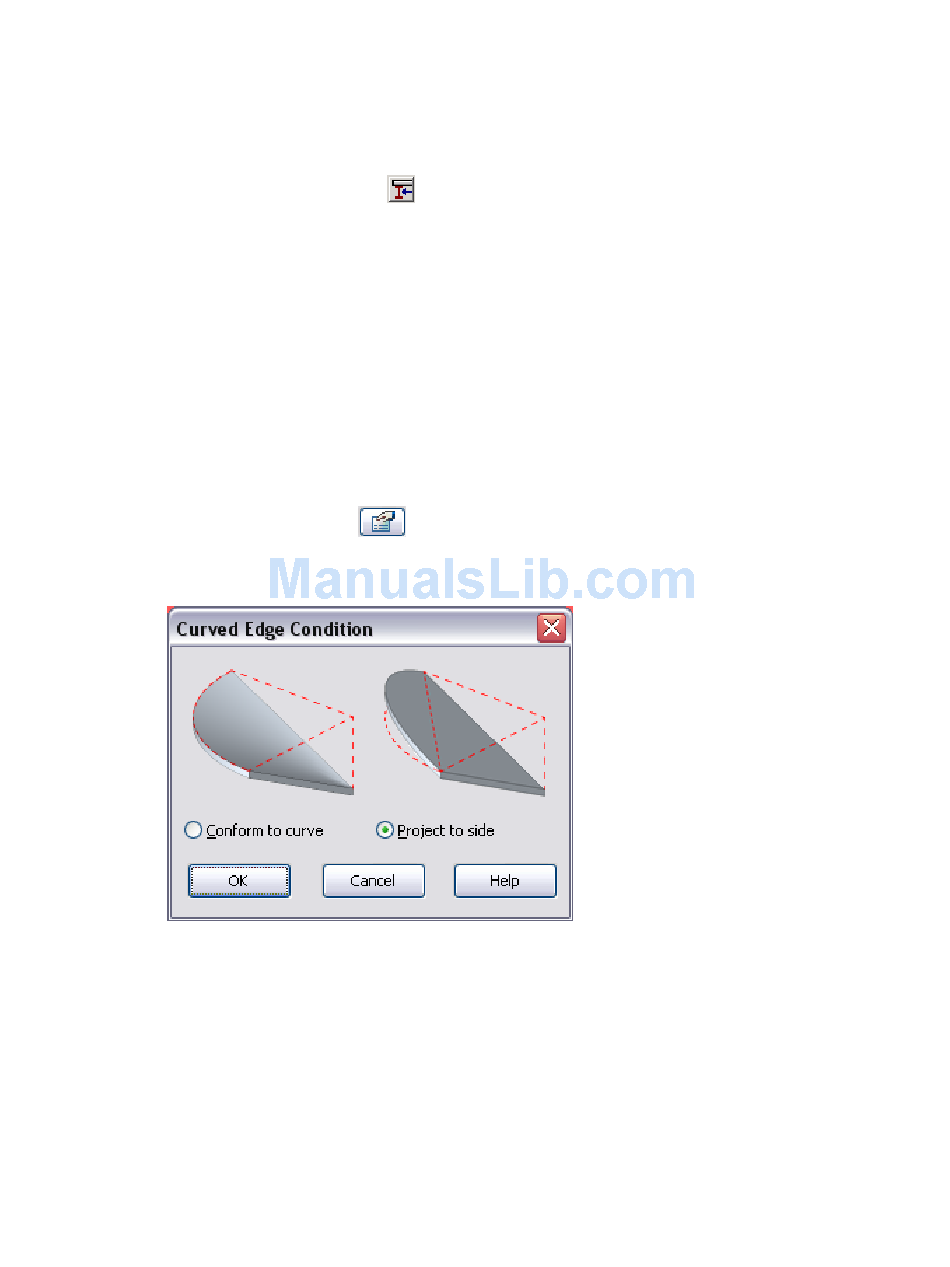

3 In the Element Properties dialog, click the Curved Edge Condition button located under Slab Shape
Edit. This opens the Curved Edge Condition Dialog.
4 Select either Conform to curve for a scalloped surface, or Project to side for a flat surface.
5 Click OK to apply the condition.
6 Click OK to close the Element Properties dialog.
886 | Chapter 12 Working with Structural Components
(Pick Supports tool).
.
