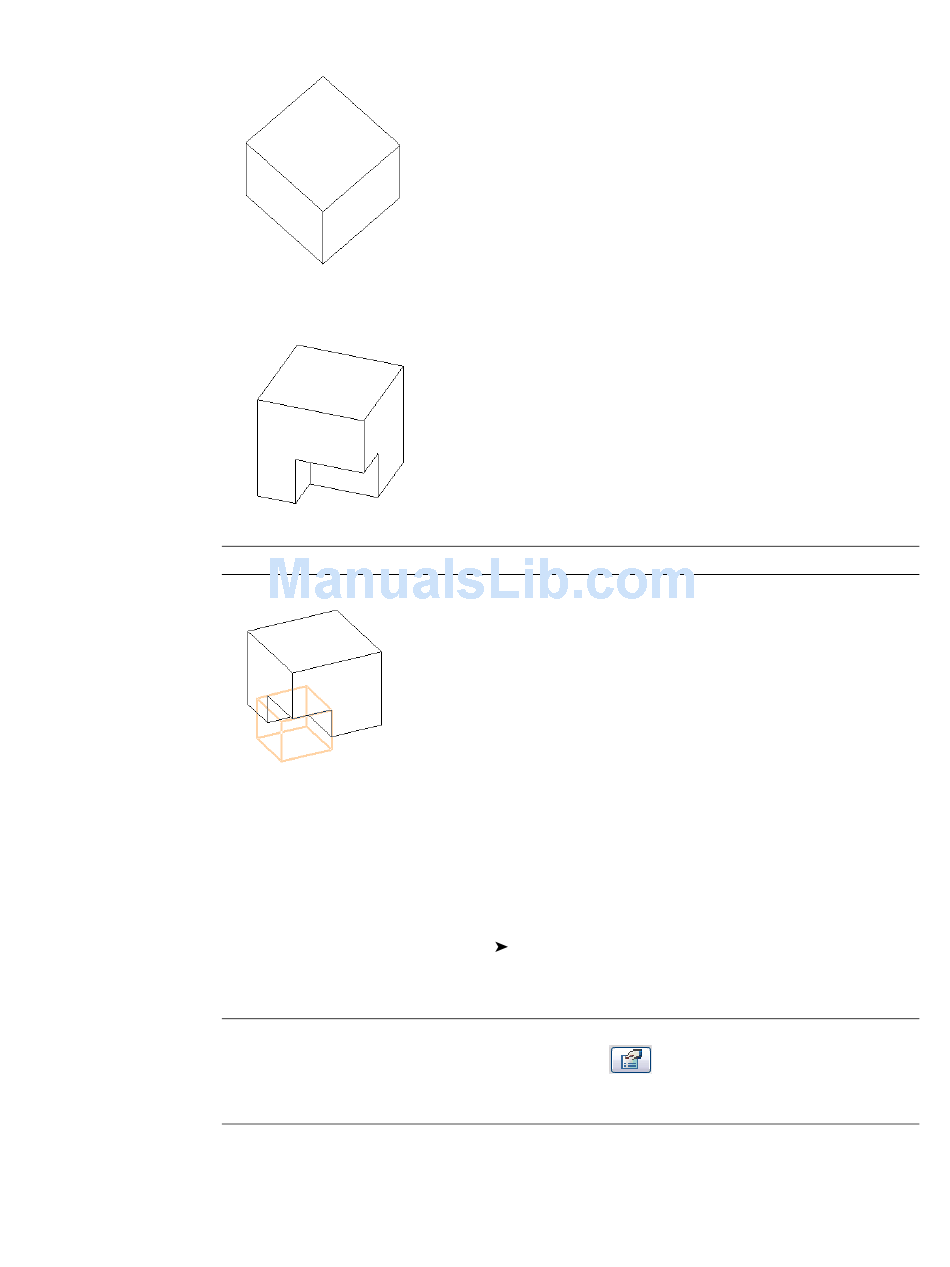

Solid geometry
Solid geometry with extrusion cut
NOTE If you rest the cursor near the cut, you see the extrusion shape highlight.
You can then select the extrusion cut and edit the sketch if necessary.

Void Blends

You can create a blend to cut through any solid geometry.
1 In the Family Editor, click Void Form
tab of the Design Bar.
2 Sketch a blend to cut into the geometry. See
TIP Prior to sketching the shape, you can specify the depth of the blend cut by setting values for the
start and end of the blend. While in sketch mode, click
specify values for the first end and the start end. You can also specify a depth by clicking in the depth
field on the Options Bar.
3 To see the new blend cut, open a 3D view.
Void Blend on either the Modelling menu or the Family
Creating Solid Blends
. In the Element Properties dialog,
on page 383.
Void Geometry Tools | 391
