Extending the Roof Face

1 On the Design Bar, click Modify, and select the roof.
When you select the roof face, roof shape handles display. Use these handles to drag the side
surfaces. Shape handles are available for all non-horizontal side surfaces. Shape handles are not
available for surfaces created by openings placed in roof faces.
2 Drag the shape handles to extend the roof face.
These extensions remain in effect after a remake.

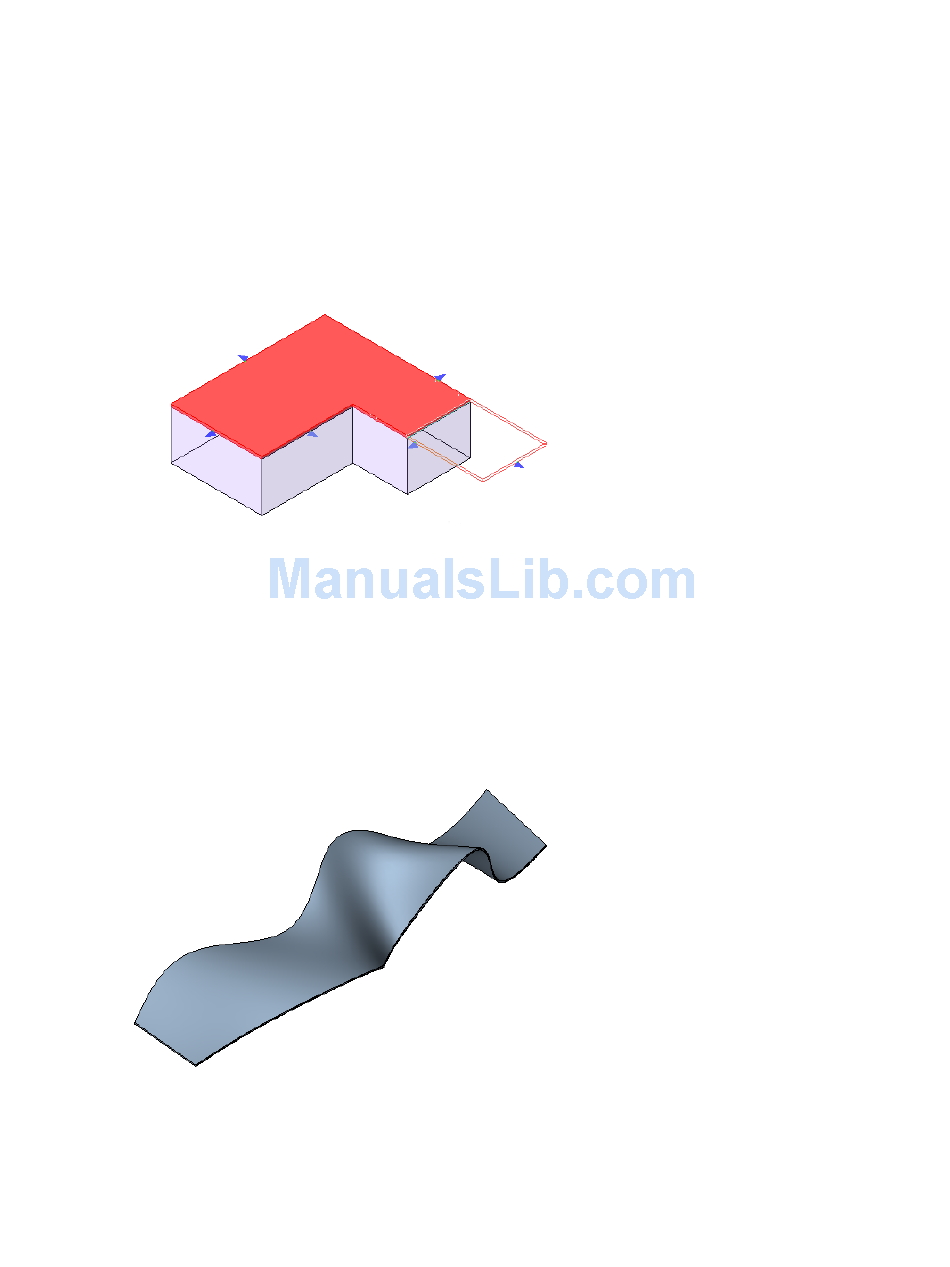

Extending roof face using shape handles

Roofs on NURB Surfaces

You can create roofs on NURB (Non-Uniform Rational B-spline) surfaces in generic model or mass families.
When you are creating a generic model or mass family, you can import a DWG or SAT file containing NURB
surfaces. (See Importing Massing Studies from Other Applications
the Roof by Face command to place a roof on the NURB surfaces. See
Command on page 551.
Roof created on NURB surface
on page 555.) After saving the family, use
Creating Roofs Using the Roof by Face
Creating Roofs from Mass Instances | 553
