7 When you have reached the last reference point, move the cursor away from the last element,

Angular Dimensions

Angular dimensions can be placed on multiple reference points sharing a common intersection. You cannot
drag the dimension arc to display a full circle.
1 Click Drafting menu
2 On the Options Bar, click
3 Place the cursor on a component and click to create a start point for the dimension.
4 Place the cursor on a component not parallel to the first and click.
5 Drag the cursor to size the angular dimension. Choose the sector where you want the dimension
6 When sized properly, click to place.
Radial Dimensions
1 Click Drafting menu
2 On the Options Bar, click
3 Place the cursor on the arc and click.
218 | Chapter 5 Using Dimensions and Constraints
and click.
The dimension displays.
Dimension, or on the Drafting tab of the Design Bar, click Dimension.
TIP You can switch the reference point for the dimension between a wall face and a wall centerline
by pressing TAB.
TIP You can select multiple reference points for the dimension. Each element you are dimensioning
must pass through a common point. For example, to create a multiple-reference angular dimension
among 4 walls, each of the 4 walls must pass through a common point.
to appear:

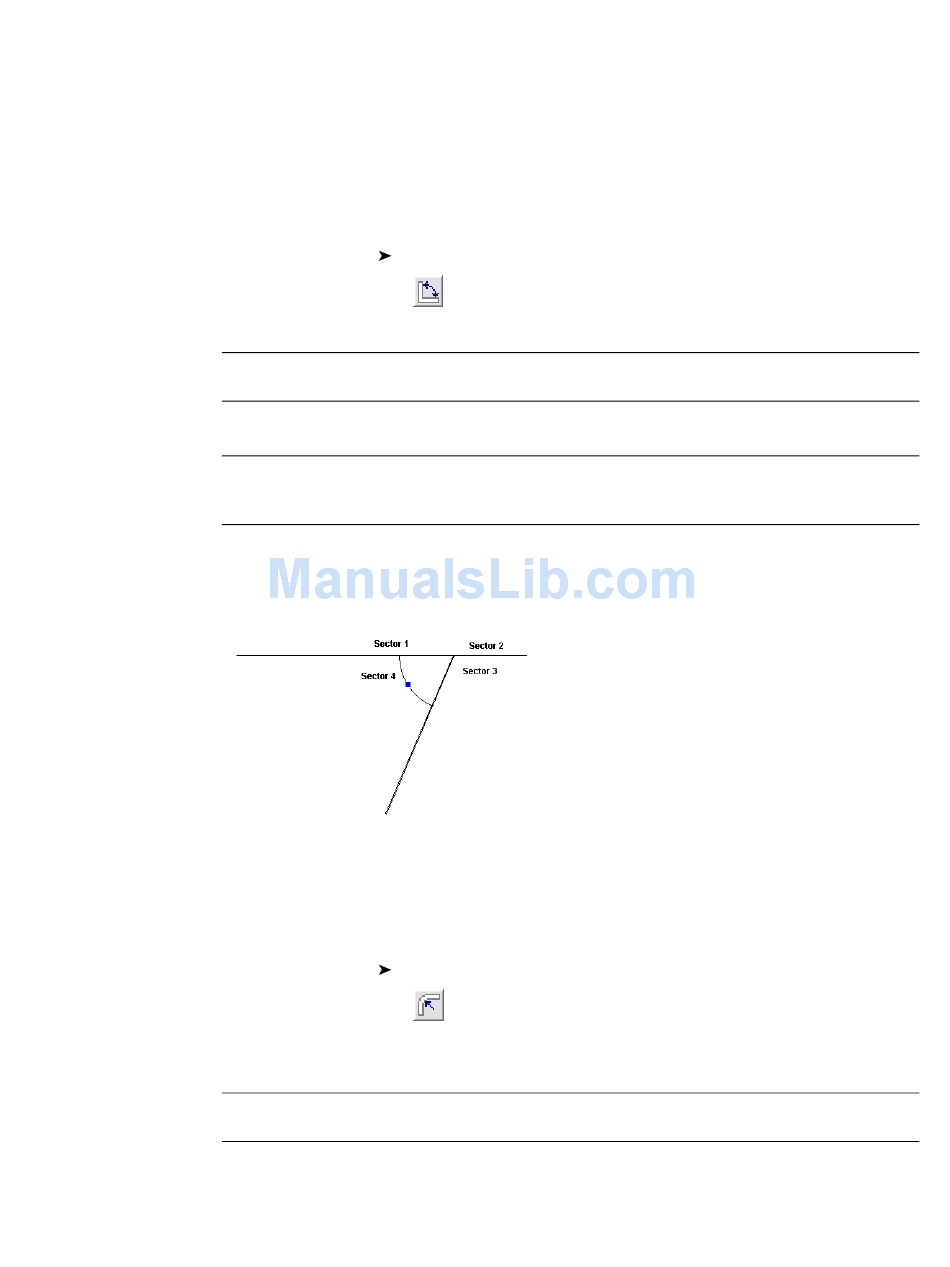

Wall join with 4 distinct sectors
Dimension, or on the Drafting tab of the Design Bar, click Dimension.
A temporary dimension appears.
TIP You can switch the reference point for the dimension between a wall face and a wall centerline
by pressing TAB.
(Create Angular Dimensions).
(Create Radial Dimensions).
