Locking the Position of Mullions and Curtain Grids
Mullions and curtain grids can be pinned (locked) on a curtain element only if that element has a type-driven
curtain grid layout. If the mullion or curtain grid is locked on a curtain element, the type properties of the
curtain element define the mullion or curtain grid type.
Graphically Modifying Face Layout

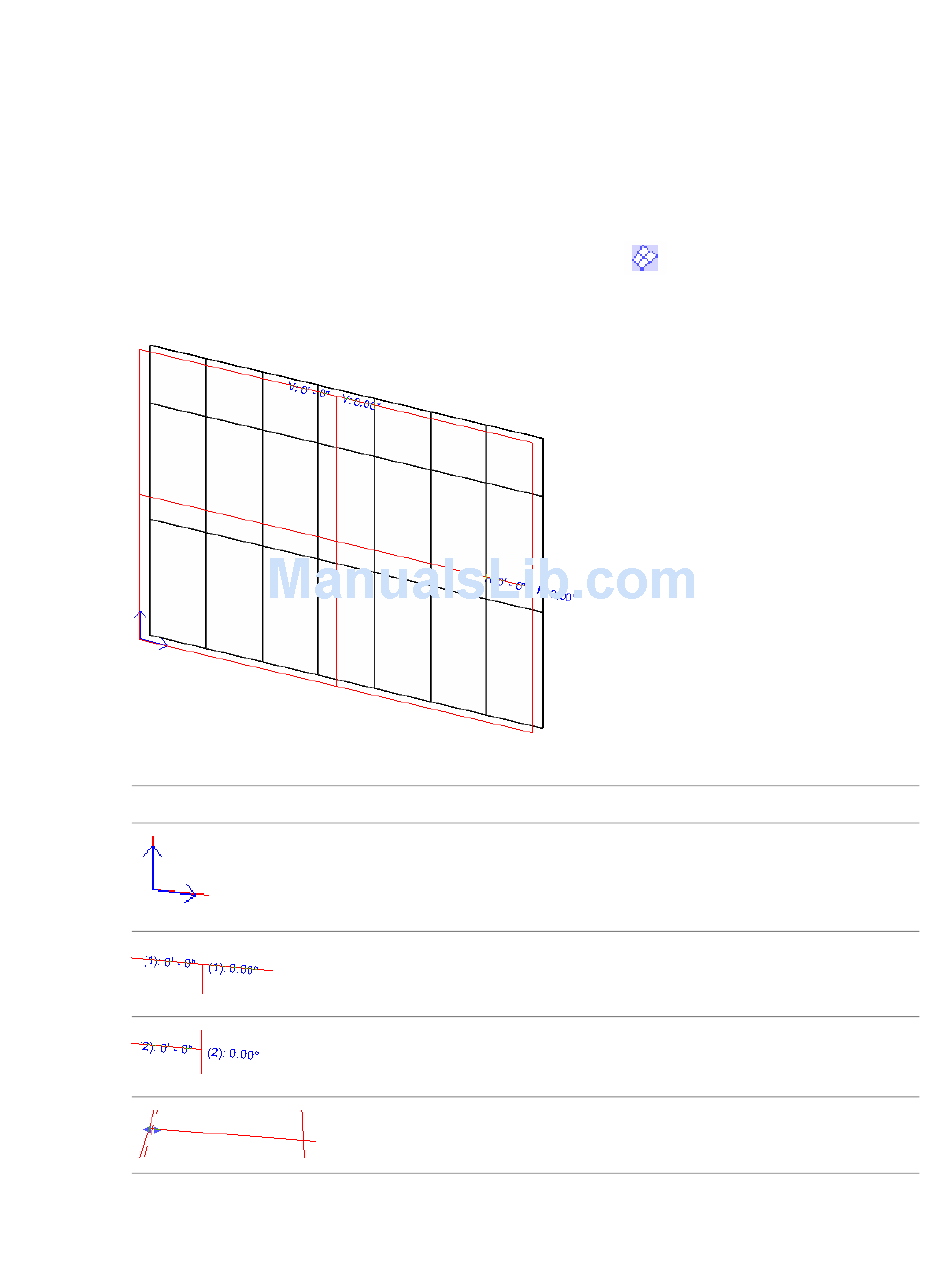

When you select a curtain grid element face, you click the control
layout interface is opened over the curtain grid face. The interface lets you graphically change the instance
parameter values of the face.
Layout interface controls:
Control
708 | Chapter 11 Working with Architectural Components
that is displayed; a curtain grid
Description
The justification origin. Click the arrows to change the justi-
fication scheme of the grids. The horizontal arrow changes
Justification (Vertical Grid); the vertical arrow changes Justific-
ation (Horizontal Grid).
Origin and angle (Vertical Curtain Grid). Click the controls
to change their values.
Origin and angle (Horizontal Curtain Grid). Click the controls
to change their values.
Measurement Line (Horizontal Grid). Drag the control left or
right to adjust the measuring line for horizontal grids.
