6 Add the reveal to adjacent walls if needed.
7 To finish placing wall reveals, click in the view away from the wall.

Changing the Wall Reveal Profile

1 With the Reveal tool active, click
2 Click Edit/New.
3 For Profile, select the desired profile type.
4 Click OK twice.

Moving Wall Reveals Away from or Towards the Wall

After placing a wall reveal, you can move its ends away from or toward the wall. The procedure is the same
as moving wall sweeps back to the wall. See

Changing Wall Reveal Types

1 In the drawing area, select a wall reveal.
2 In the Type Selector, select a wall reveal type.
If the desired wall reveal type is not listed in the Type Selector, you can load additional profile families. Click
File menu

Wall Reveal Properties

You can modify several properties for wall reveals, including profiles and offsets.
Modifying Wall Reveal Properties
1 In a 3D or elevation view, select a wall reveal and click
2 In the Element Properties dialog, edit wall reveal instance parameters.
3 Click Edit/New to edit wall reveal type parameters.
600 | Chapter 11 Working with Architectural Components

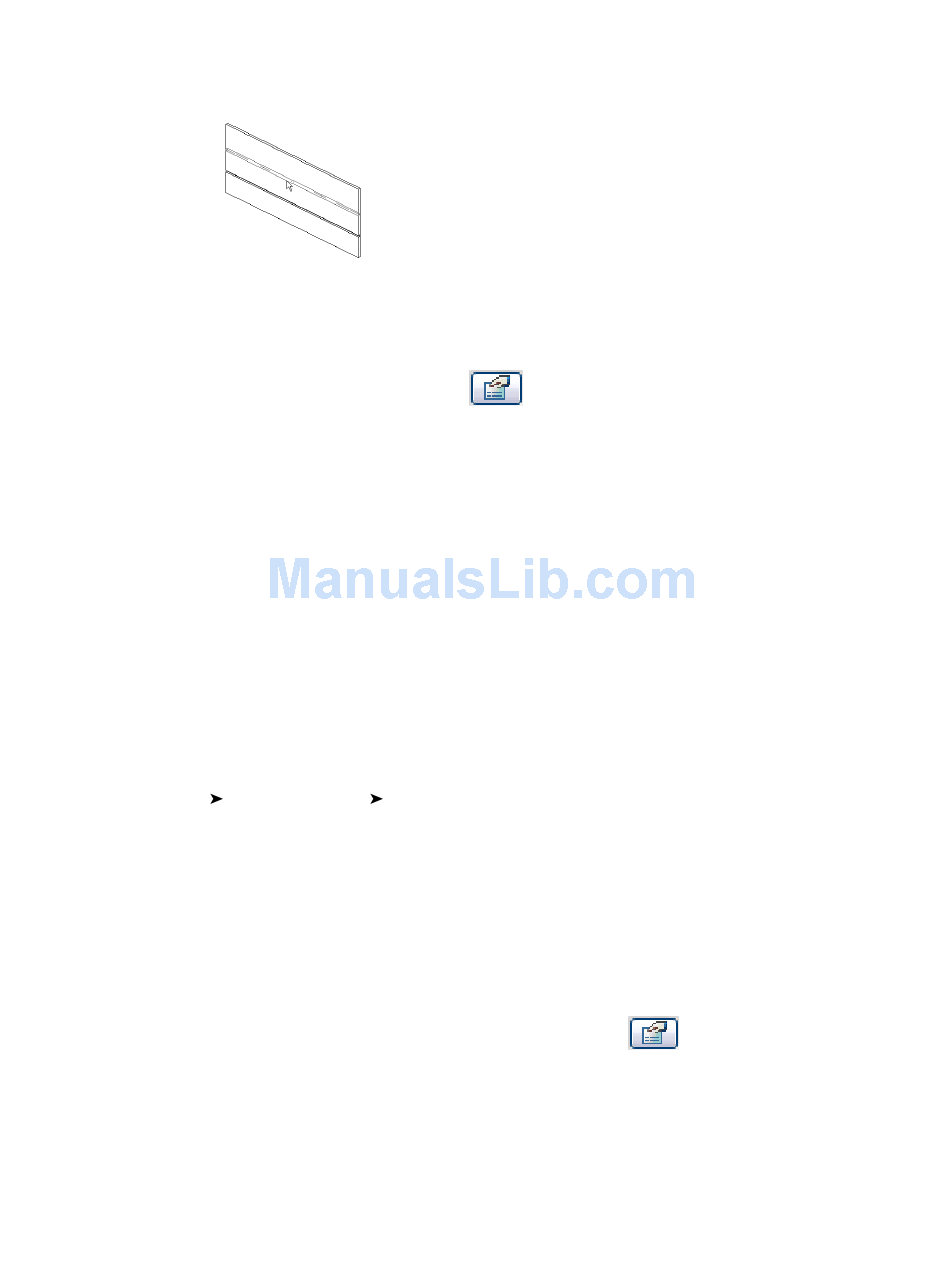

Revit Architecture preselects the reveal location on each adjacent wall.
Load From Library Load Family.
Changes made to type properties affect all wall reveals of this type in the project. You can click
Duplicate to create a new wall reveal type.
(Element Properties).
Returning Wall Sweeps Back to the Wall on page 594.
(Element Properties).
