Adding Roof Soffits

Design intent for creating roof soffits can vary widely. This procedure creates a soffit from a 2-loop sketch
between a wall and a roof. The soffit is associated with the walls and the roof. To create non-associative
soffits, use the Lines command while in sketch mode.
1 Click Modelling menu
Roof
Roof Soffit.
2 On the Design Bar, click Pick Roofs.
This command creates a locked sketch line.
3 Highlight the roof, and click.

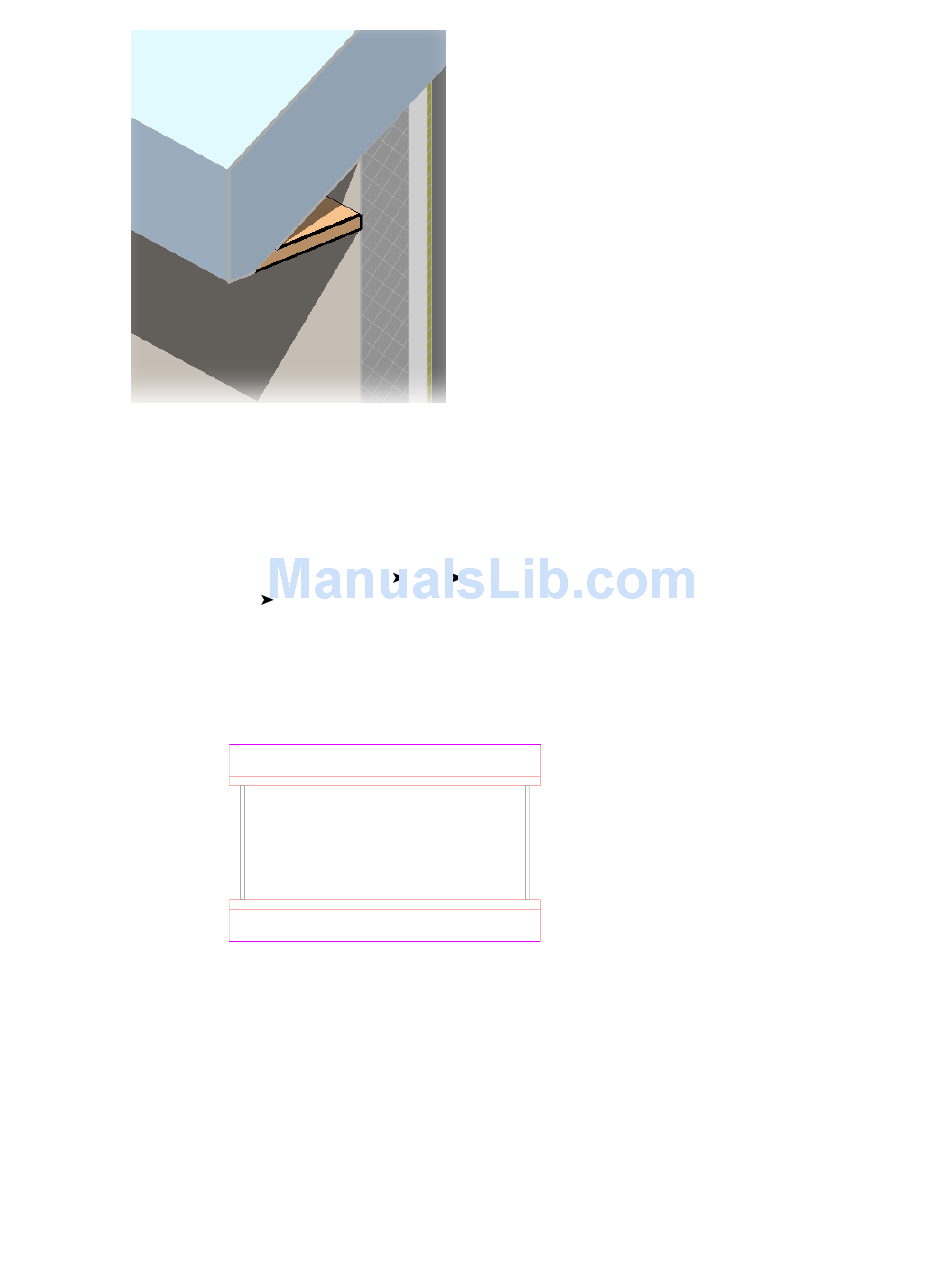

Roof selected with Pick Roofs command
4 Click Pick Walls, highlight the outside faces of the wall beneath the roof, and click to select.
Roof
Roof Soffit, or on the Modelling tab of the Design Bar, click
Roof Soffits | 627
