Name
Phase Demolished
Analytical Model
Enable Analytical Model
Horizontal Projection
Top Vertical Projection
Bottom Vertical Projection

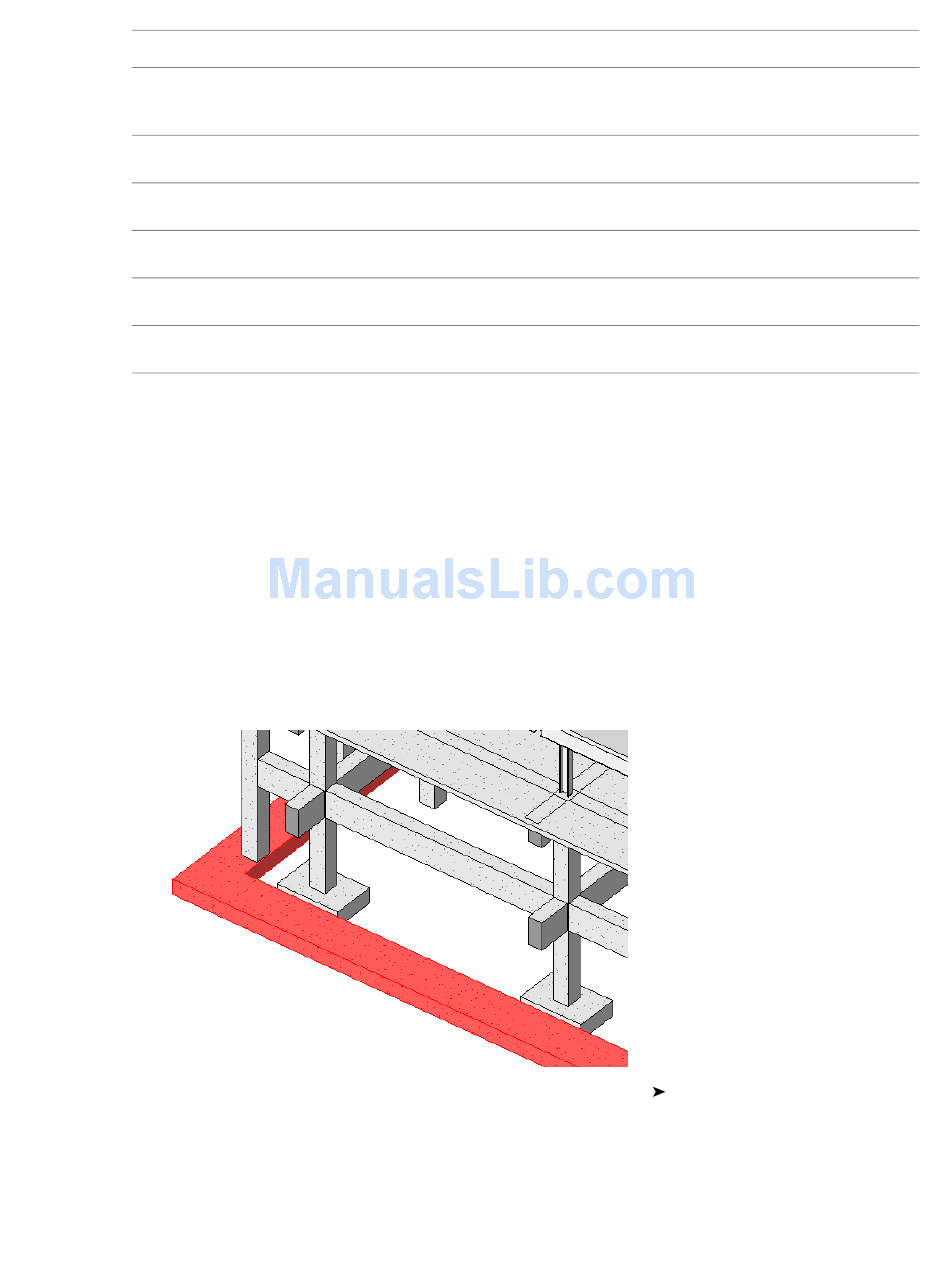

Wall Foundations

Wall foundations are members of the structural foundation category. You can place these foundations along
structural walls, in either a plan or 3D view.
Wall foundations are constrained to the wall that they support. They move with the wall when you move
the wall.
You join wall foundations using the Join tool.

Creating a Wall Foundation

Foundations snap to walls. Before placing the foundations, open a view that already contains structural
walls.
1 On the Structural tab of the Design Bar, click Foundation
2 Select the desired walls in the view.
Description
Indicates in which phase the wall component was demolished. See
Phasing on page 1263.
Toggles the visibility of the wall analytical model.
The horizontal plane of the wall used for analysis and design.
The top vertical plane of the wall used for analysis and design.
The bottom vertical plane of the wall used for analysis and design.
Project
Wall.
