Default End Extensions

You can set the default extension length of wall foundations in your project. This is set in the Wall Foundation
Type Properties. See Wall Foundation Type Properties - Retaining on page 855 and Wall Foundation Type
Properties - Bearing on page 856.
Under the Dimensions section, enter a value in the Default End Extension Length parameter. Any unjoined
wall foundation end will extend this distance beyond its host wall. The value will be set for the entire project.

Doors and Windows

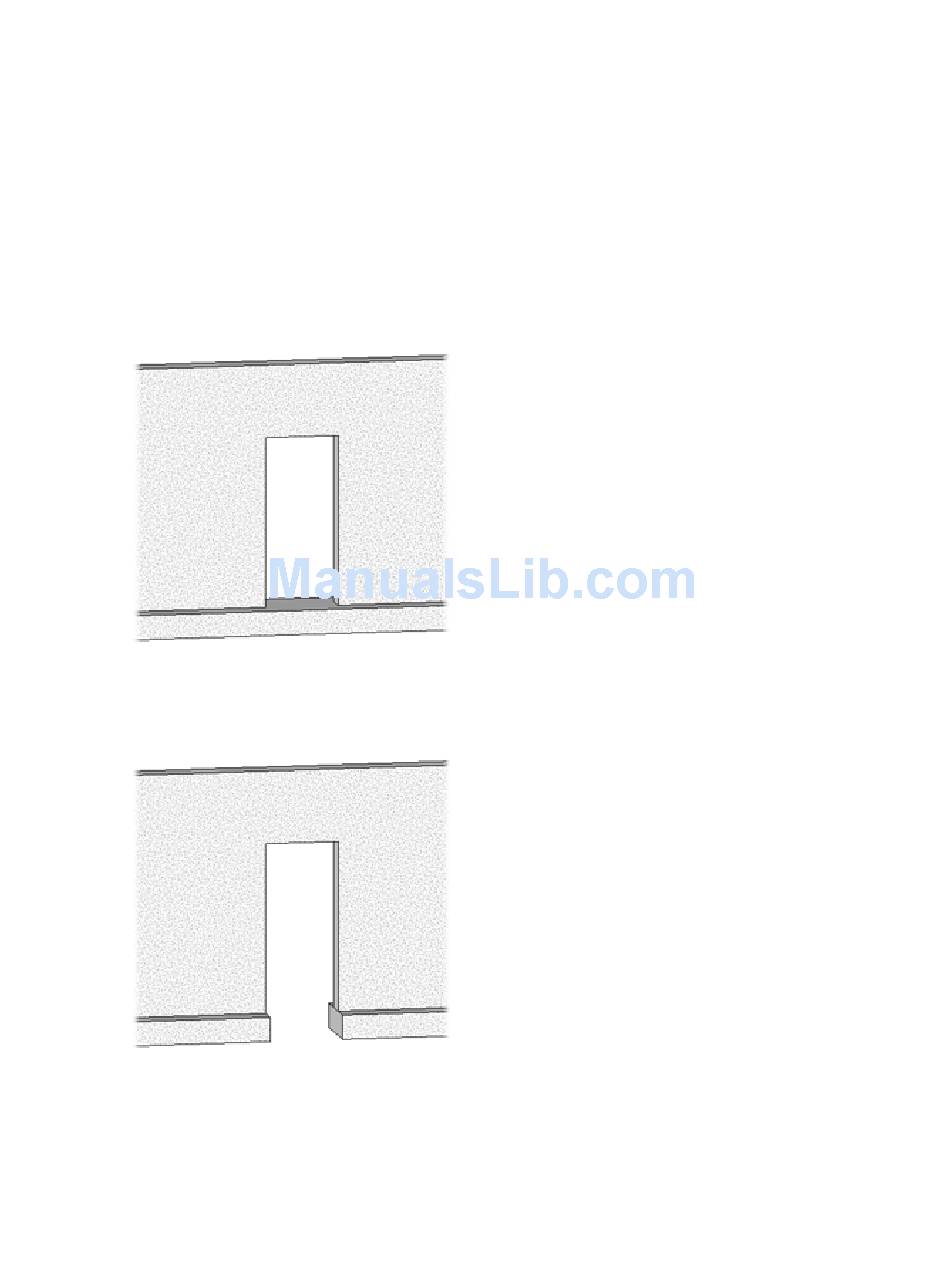

When a doorway or window is created in a wall, the wall foundation remains continuous beneath the
opening.
You can disable this in the Wall Foundation Type Properties. See Wall Foundation Type Properties - Retaining
on page 855 and Wall Foundation Type Properties - Bearing on page 856. Under the Dimensions section,
deselect the Do Not Break at Inserts parameter. The value will be set for the entire project.
854 | Chapter 12 Working with Structural Components
