Name
Text Size
Text Offset from Leader
Text Offset from Symbol
Text Font
Text Background
Text Orientation
Units Format
Text Location
Elevation Indicator
242 | Chapter 5 Using Dimensions and Constraints
Description
Sets the size of the elevation text.

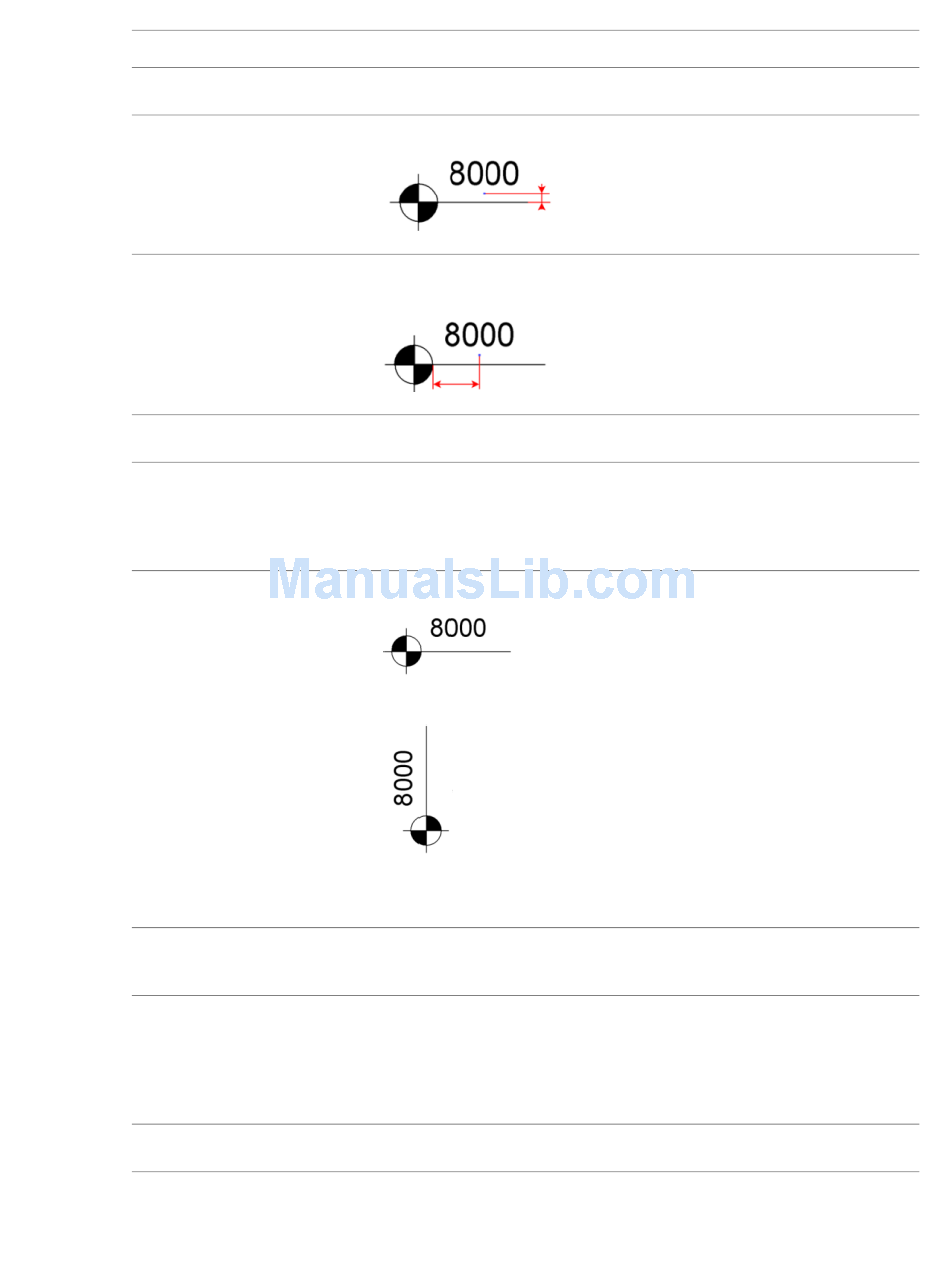

Offsets the text from the leader line.
Offsets the text from the symbol. You can use positive or negative values to move
the text in the direction you require.
Sets the font for the elevation text.
If you set the value to opaque, the dimension text is surrounded by a box that
overlaps any geometry or text behind it in the view. If you set the value to transpar-
ent, the box disappears and everything not overlapped by the dimension text is
visible.
Changes the position of the text. Specify horizontal
or vertical.
When Rotate with Component is enabled, text orientation is relative to the host
element.
Click the button to open the Format dialog. Clear the Use Project Settings option
and set the appropriate values. See
Specify the position of the spot elevation with respect to the leader. Options include
Above Leader, Below Leader, or In-line with Leader.
When you specify In-line with Leader, the elevation symbol does not display for the
spot elevation. In addition, the Text Offset from Leader, Text Offset from Symbol,
and Symbol properties are disabled.
A text string you enter with the spot elevation. Can be displayed as a prefix or suffix.
Setting Project Units on page 492.
